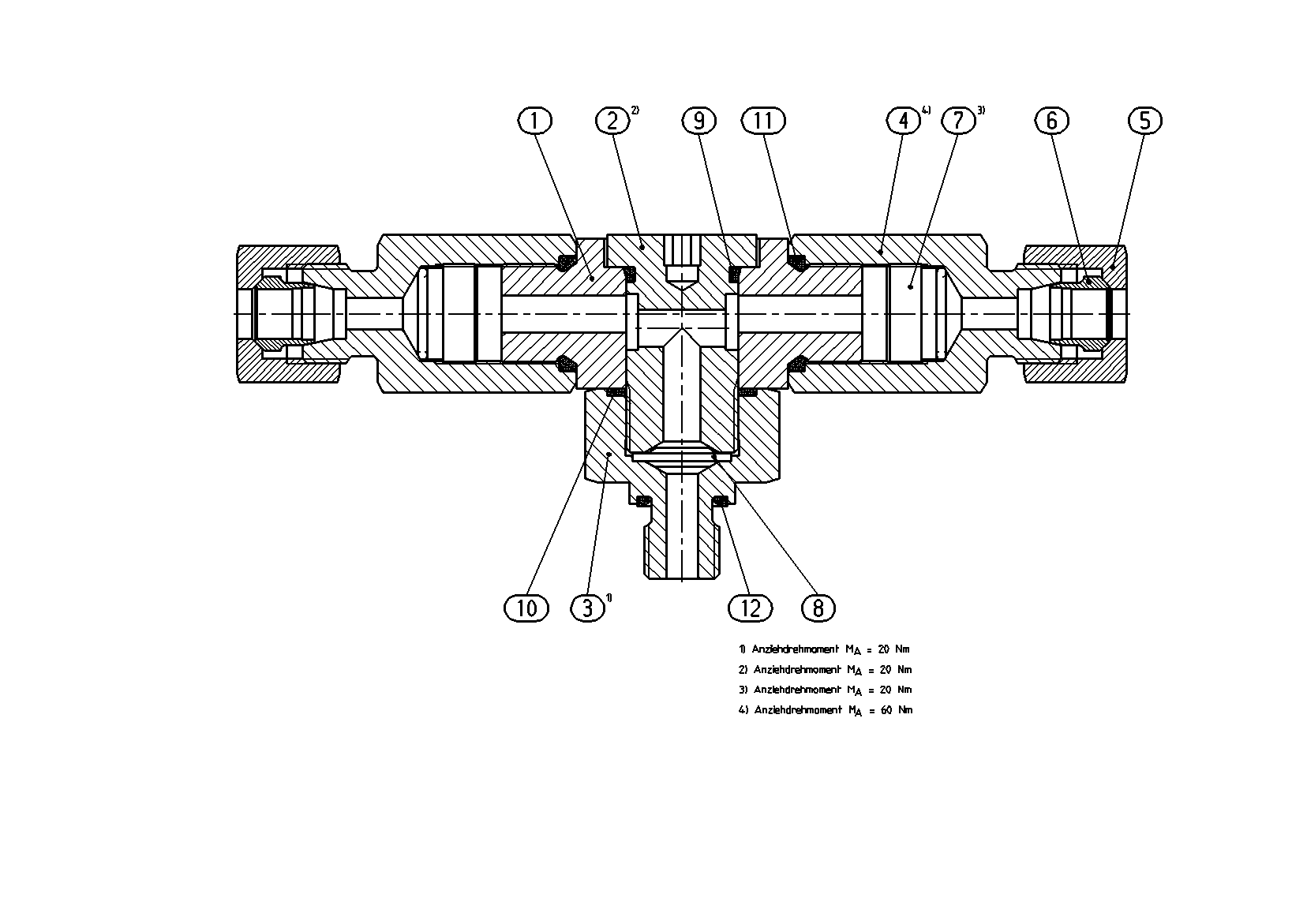

Assembly
ANTI-CAVITATION CHECK VALVER909613497
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909651935 | HOUSING | 1 | |
| R909651937 | SCREW PLUG | 1 | ||
| R909652010 | NECK | 1 | ||
| R909651930 | THREADED REDUCING STUD | 2 | ||
| 5 | R909832117 | UNION NUT | 2 | |
| R909085308 | FERRULE | 2 | ||
| R909832107 | CHECK VALVE | 2 | ||
| R909830096 | FILTER DISC | 1 | ||
| 9 | R909086478 | O-RINGD | 1 | |
| R909086432 | O-RINGD | 1 | ||
| 11 | R909083752 | O-RINGD | 2 | |
| 12 | R900012466 | SEAL RING | 1 |
