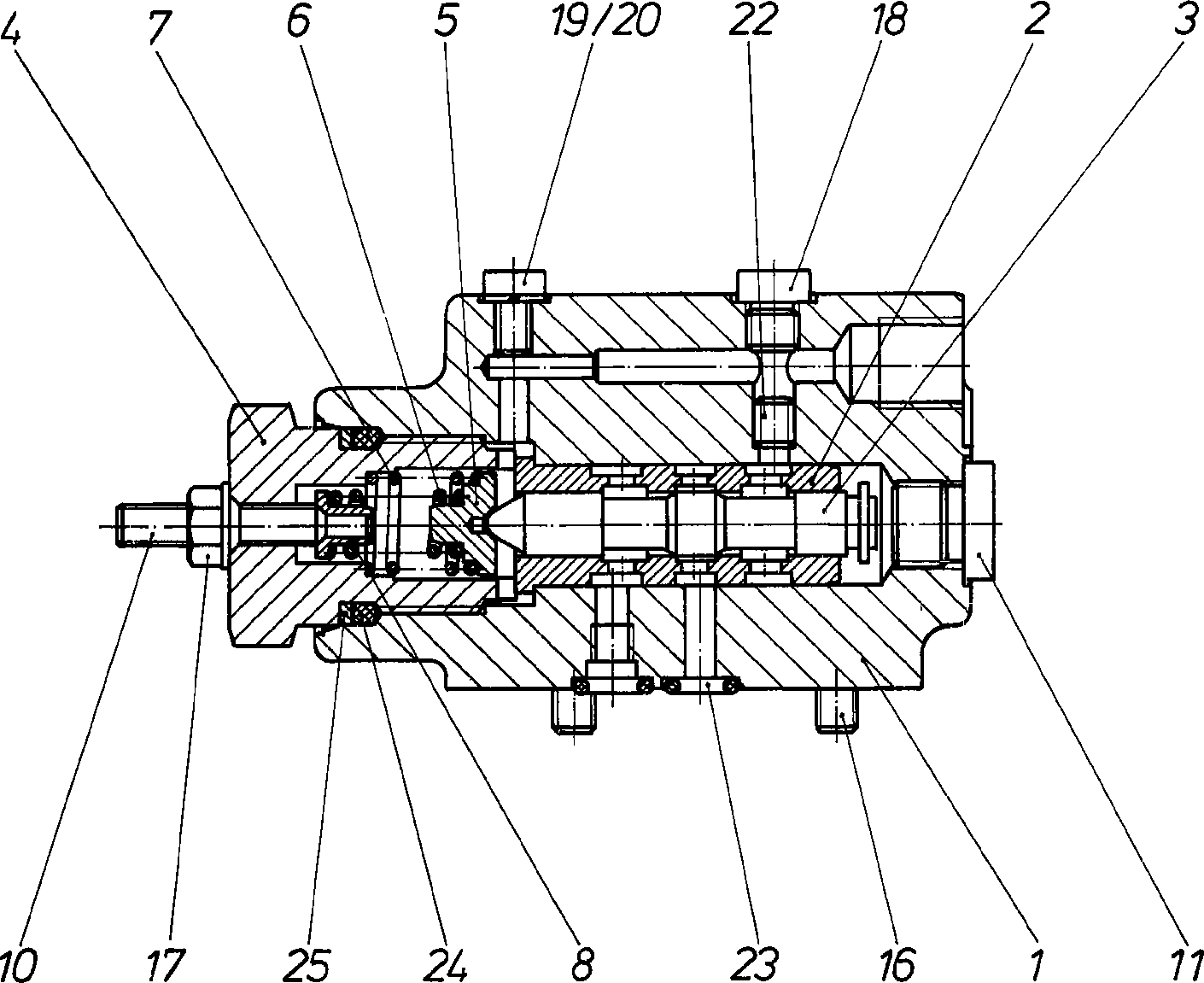

Assembly
SEQUENCE VALVER909613805
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909432475 | HOUSING | 1 | ||
| R909431037 | CONTROL SLEEVE | 1 | ||
| R909424353 | CONTROL PISTON | 1 | ||
| R909432852 | SCREW PLUG | 1 | ||
| R909418698 | SPRING DISK | 1 | ||
| R909432906 | COMPRESSION SPRING | 1 | ||
| R909410091 | COMPRESSION SPRING | 1 | ||
| R902221507 | SPRING DISK | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909422328 | SCREW PLUG | 1 | ||
| R909083030 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909086465 | SOCKET HEAD CAP SCREW | 1 | ||
| R909084302 | SEAL RINGD | 1 | ||
| R909831347 | PLUG | 1 | ||
| R909086498 | O-RINGD | 4 | ||
| R909083797 | O-RINGD | 1 | ||
| R909087626 | BACKUP RINGD | 1 |
