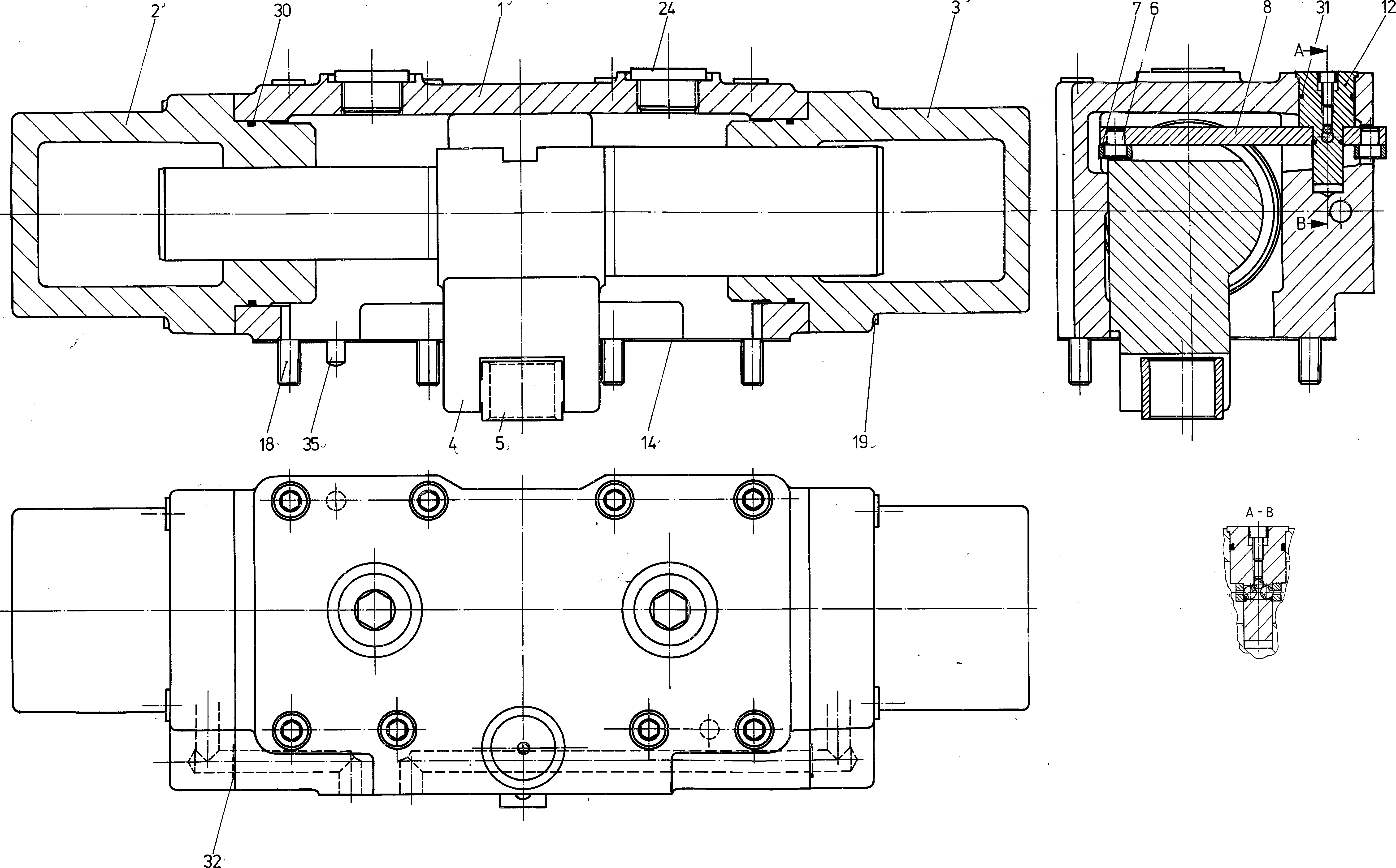

Assembly
CONTROLR910428205
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910427446 | CONTROL HOUSING | 1 | ||
| R910427683 | CONTROL CYLINDER | 1 | ||
| R910427667 | CONTROL CYLINDER | 1 | ||
| R910427659 | ADJUSTING PISTON | 1 | ||
| R910428116 | SLIDER | 1 | ||
| R910427853 | DRIVER PIVOT | 2 | ||
| R910428078 | SLIDER | 2 | ||
| R910428094 | CONTROL LEVER | 1 | ||
| R910920188 | JOURNAL | 1 | ||
| R910427624 | SEALD | 1 | ||
| R910736279 | SOCKET HEAD CAP SCREW | 8 | ||
| R910109797 | SOCKET HEAD CAP SCREW | 8 | ||
| R909153861 | SCREW PLUGD | 2 | ||
| R910112046 | O-RINGD | 2 | ||
| R913029707 | QUAD RINGD | 1 | ||
| R910111082 | O-RINGD | 2 | ||
| R910602051 | STRAIGHT PIN | 2 |
