Assembly

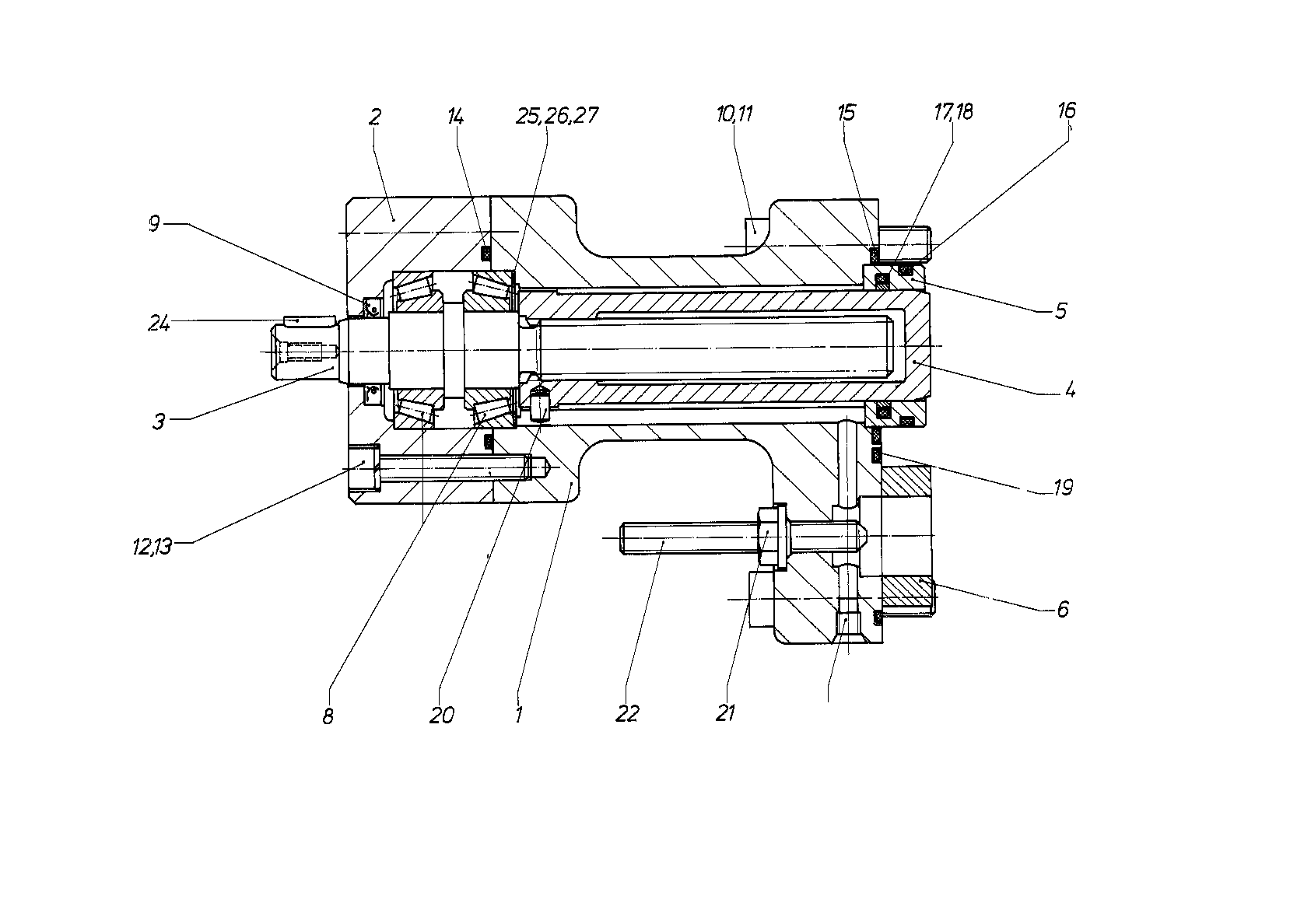

STROKE LIMITERR910585319
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 50 | R910582158 | CONTROL HOUSING | 1 | |
| 50 | R910582581 | COVER | 1 | |
| 50 | R910582638 | ADJUSTMENT SPINDLE | 1 | |
| 50 | R910582522 | CONTROL SLEEVE | 1 | |
| 50 | R910582948 | INTERMEDIATE RING | 1 | |
| 50 | R910582921 | SHIM RING | 1 | |
| 60 | R910101397 | TAPERED-ROLLER BEARING | 2 | |
| 60 | R910900853 | SHAFT SEALING RINGD | 1 | |
| 61 | R910109819 | SOCKET HEAD CAP SCREW | 4 | |
| 61 | R910100773 | SPRING LOCK WASHER | 4 | |
| 61 | R910109525 | SOCKET HEAD CAP SCREW | 8 | |
| 61 | R910100757 | SPRING LOCK WASHER | 8 | |
| 61 | R910523267 | O-RINGD | 1 | |
| 61 | R910977069 | O-RINGD | 1 | |
| 61 | R910515191 | O-RINGD | 1 | |
| 61 | R910977039 | O-RINGD | 1 | |
| 61 | R910585343 | DUMMYD | 1 | |
| 61 | R910977066 | O-RINGD | 1 | |
| 62 | R910585351 | STRAIGHT PIN | 1 | |
| 62 | R909152426 | SEALING NUTD | 1 | |
| 62 | R910585378 | SETSCREW | 1 | |
| 62 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 62 | R910114707 | PARALLEL KEY | 1 | |
| 62 | R910585335 | SHIM RING | 1 | |
| 62 | R910635022 | SHIM RING | 2 | |
| 62 | R910635014 | SHIM RING | 1 |
