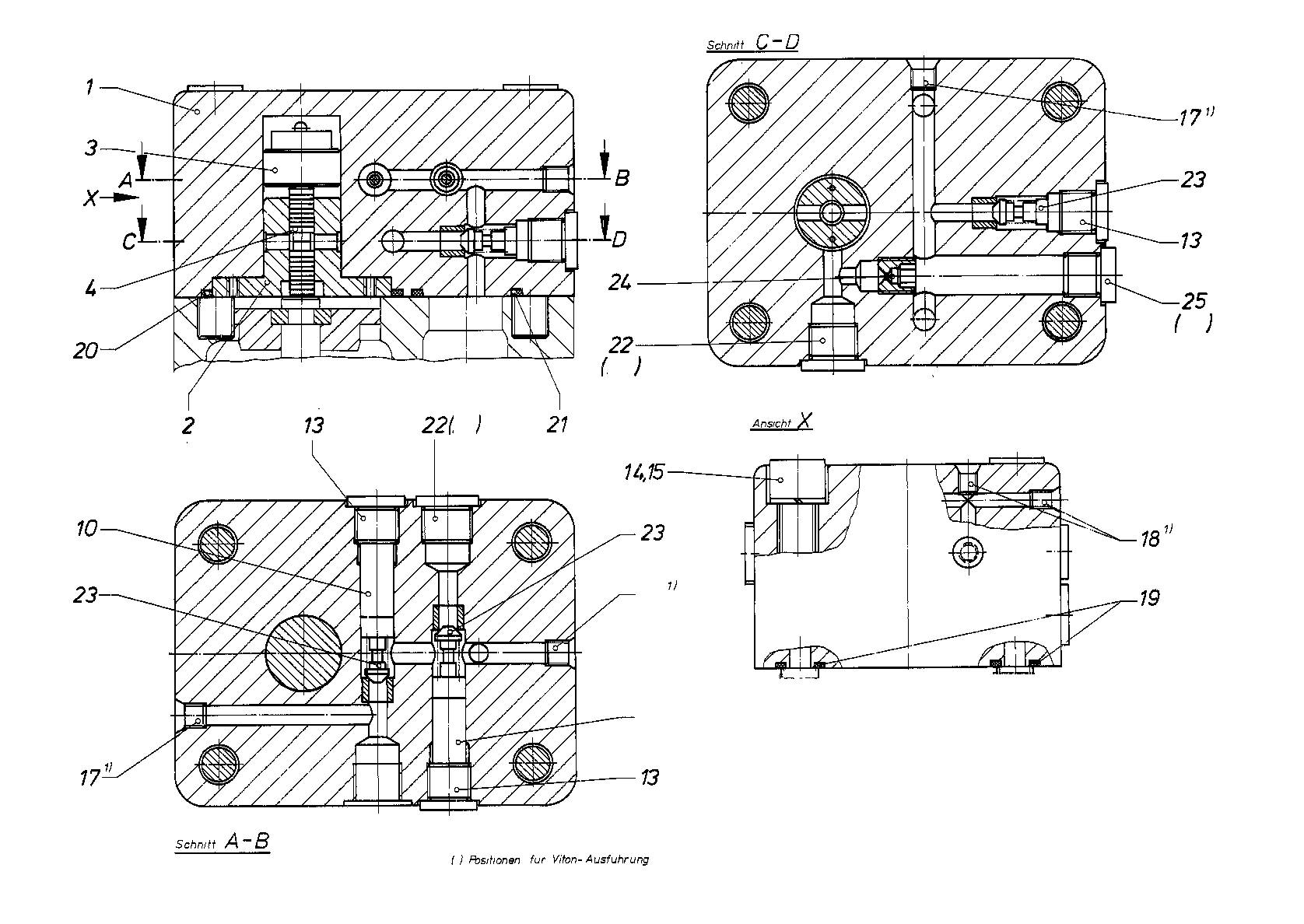

Assembly
COVERR910588377
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 50 | R910579807 | COVER | 1 | |
| 50 | R910584568 | CONTROL BUSH | 1 | |
| 50 | R910583782 | CONTROL PISTON | 1 | |
| 50 | R910583804 | PISTON | 2 | |
| 51 | R910805947 | SPACER | 2 | |
| 52 | R910579459 | THROTTLE SCREW | 1 | |
| 61 | R909151979 | SCREW PLUGD | 3 | |
| 61 | R910109851 | SOCKET HEAD CAP SCREW | 4 | |
| 61 | R910100773 | SPRING LOCK WASHER | 4 | |
| 61 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 61 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 61 | R910977037 | O-RINGD | 2 | |
| 62 | R910342157 | O-RINGD | 1 | |
| 62 | R910513555 | O-RINGD | 1 | |
| 62 | R909153816 | SCREW PLUGD | 2 | |
| 62 | R910579718 | MOUNTING KIT | 3 | |
| 62 | R909151979 | SCREW PLUGD | 1 |
