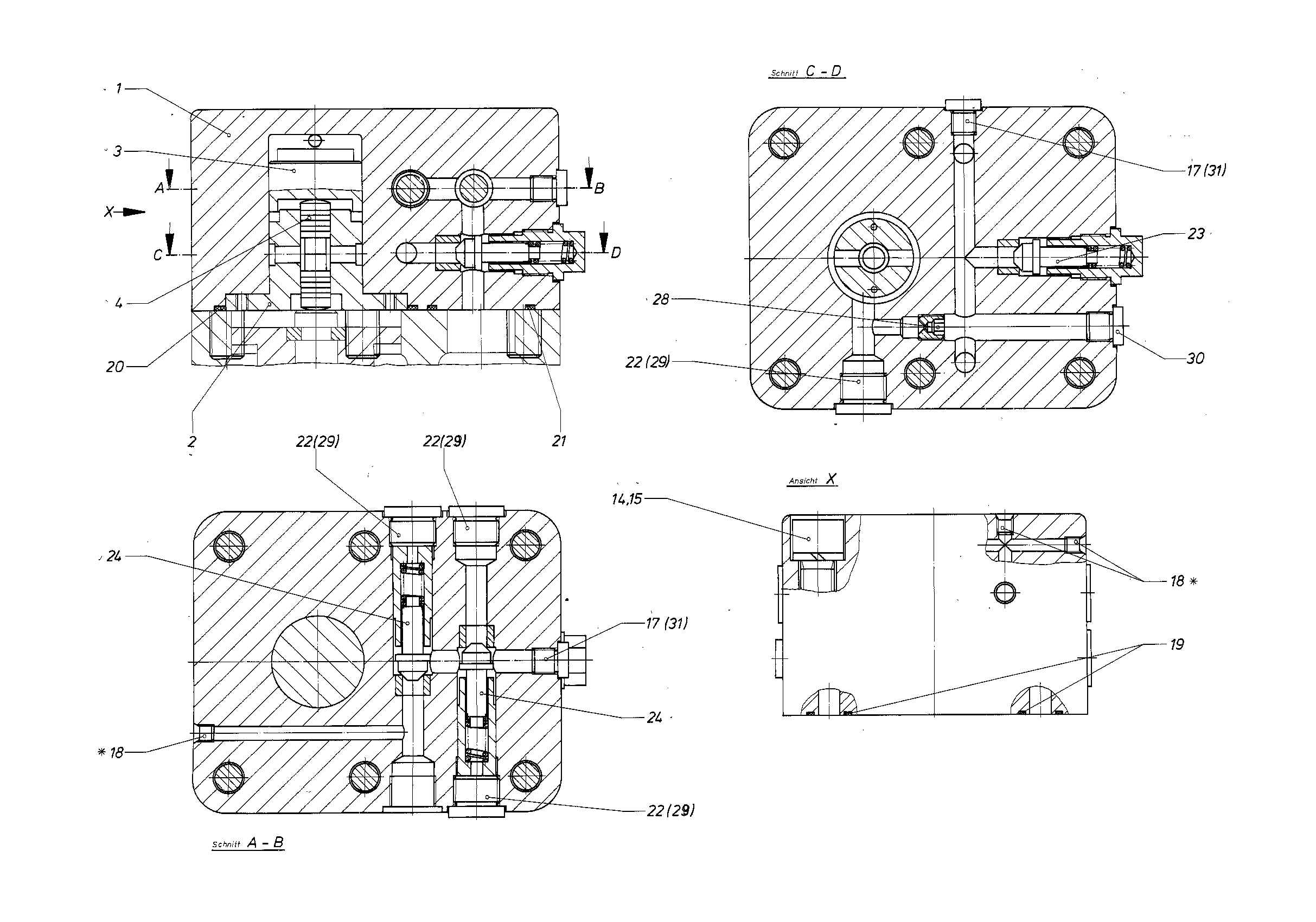

Assembly
COVERR910593354
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 42 | R910805513 | NON-RETURN VALVE Assembly parts list →L | 1 | |
| 42 | R910805521 | NON-RETURN VALVE Assembly parts list →L | 2 | |
| 50 | R910579742 | COVER | 1 | |
| 50 | R910593648 | CONTROL BUSH | 1 | |
| 50 | R910593672 | CONTROL PISTON | 1 | |
| 50 | R910593664 | PISTON | 2 | |
| 52 | R910579459 | THROTTLE SCREW | 1 | |
| 61 | R910513016 | SOCKET HEAD CAP SCREW | 6 | |
| 61 | R910100803 | SPRING LOCK WASHER | 6 | |
| 61 | R909151692 | SCREW PLUGD | 2 | |
| 61 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 61 | R910514985 | O-RINGD | 2 | |
| 62 | R910245879 | O-RINGD | 1 | |
| 62 | R910977050 | O-RINGD | 1 | |
| 62 | R909151694 | SCREW PLUGD | 4 | |
| 63 | R909151979 | SCREW PLUGD | 1 |
