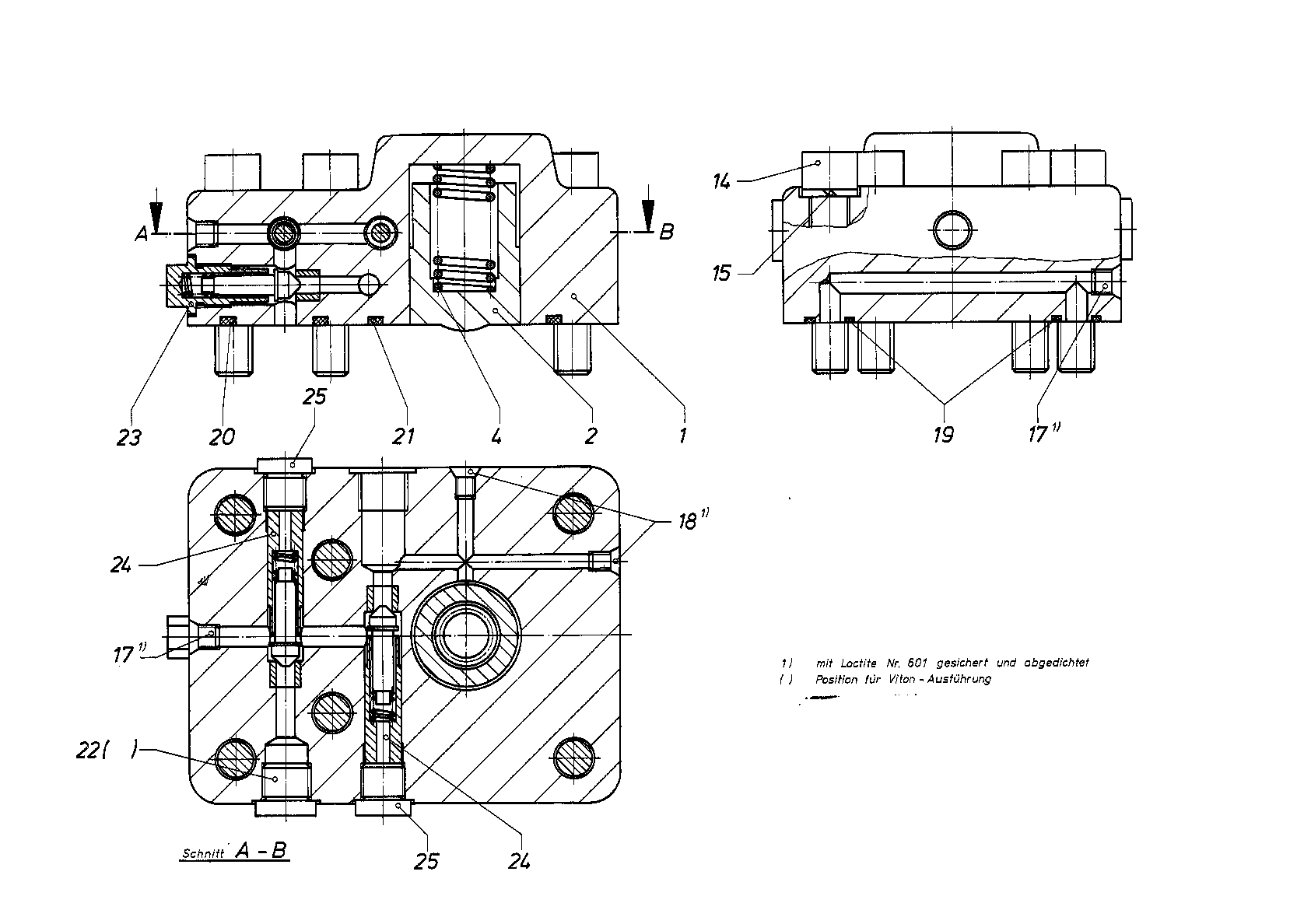

Assembly
COVERR910593966
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 42 | R910809012 | NON-RETURN VALVE Assembly parts list →L | 1 | |
| 42 | R910809055 | NON-RETURN VALVE Assembly parts list →L | 2 | |
| 50 | R910593982 | COVER | 1 | |
| 50 | R910582786 | CONTROL PISTON | 1 | |
| 50 | R910582034 | COMPRESSION SPRING | 1 | |
| 61 | R910109835 | SOCKET HEAD CAP SCREW | 6 | |
| 61 | R910100773 | SPRING LOCK WASHER | 6 | |
| 61 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 61 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 61 | R910977037 | O-RINGD | 2 | |
| 62 | R910584975 | O-RINGD | 1 | |
| 62 | R910584983 | O-RINGD | 1 | |
| 62 | R909153816 | SCREW PLUGD | 1 | |
| 62 | R909151979 | SCREW PLUGD | 2 |
