Assembly

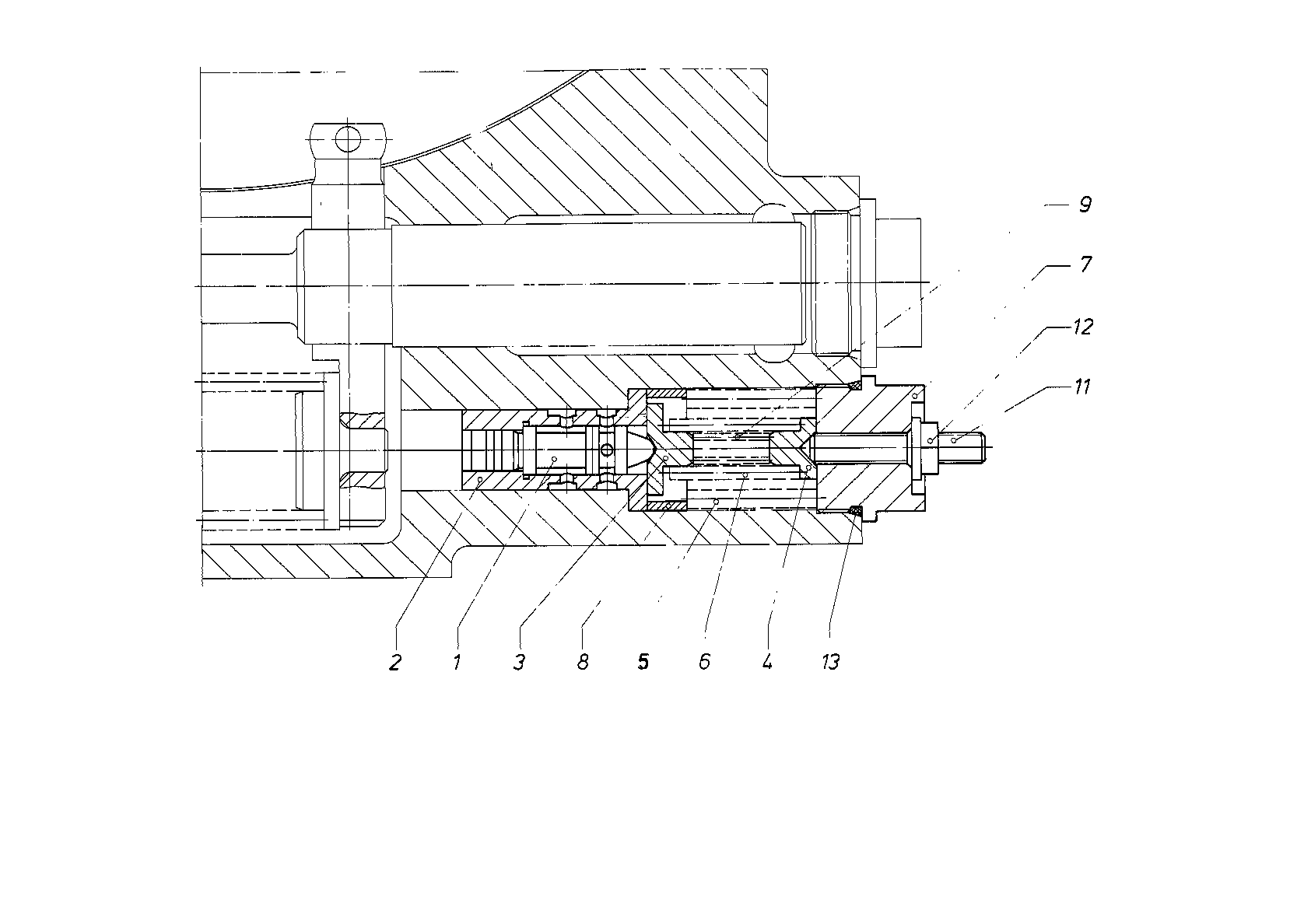

CONTROL PARTR910595454
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 50 | R910596108 | CONTROL PISTON | 1 | |
| 50 | R910596124 | CONTROL SLEEVE | 1 | |
| 50 | R910596167 | SPRING DISK | 1 | |
| 50 | R910596159 | SPRING DISK | 1 | |
| 50 | R910584673 | COMPRESSION SPRING | 1 | |
| 50 | R910596175 | COMPRESSION SPRING | 1 | |
| 50 | R910596183 | SCREW PLUG | 1 | |
| 50 | R910583871 | RING | 1 | |
| 50 | R910596302 | COMPRESSION SPRING | 1 | |
| 61 | R909154165 | SETSCREW | 1 | |
| 61 | R909152426 | SEALING NUTD | 1 | |
| 61 | R910516481 | O-RINGD | 1 |
