Assembly

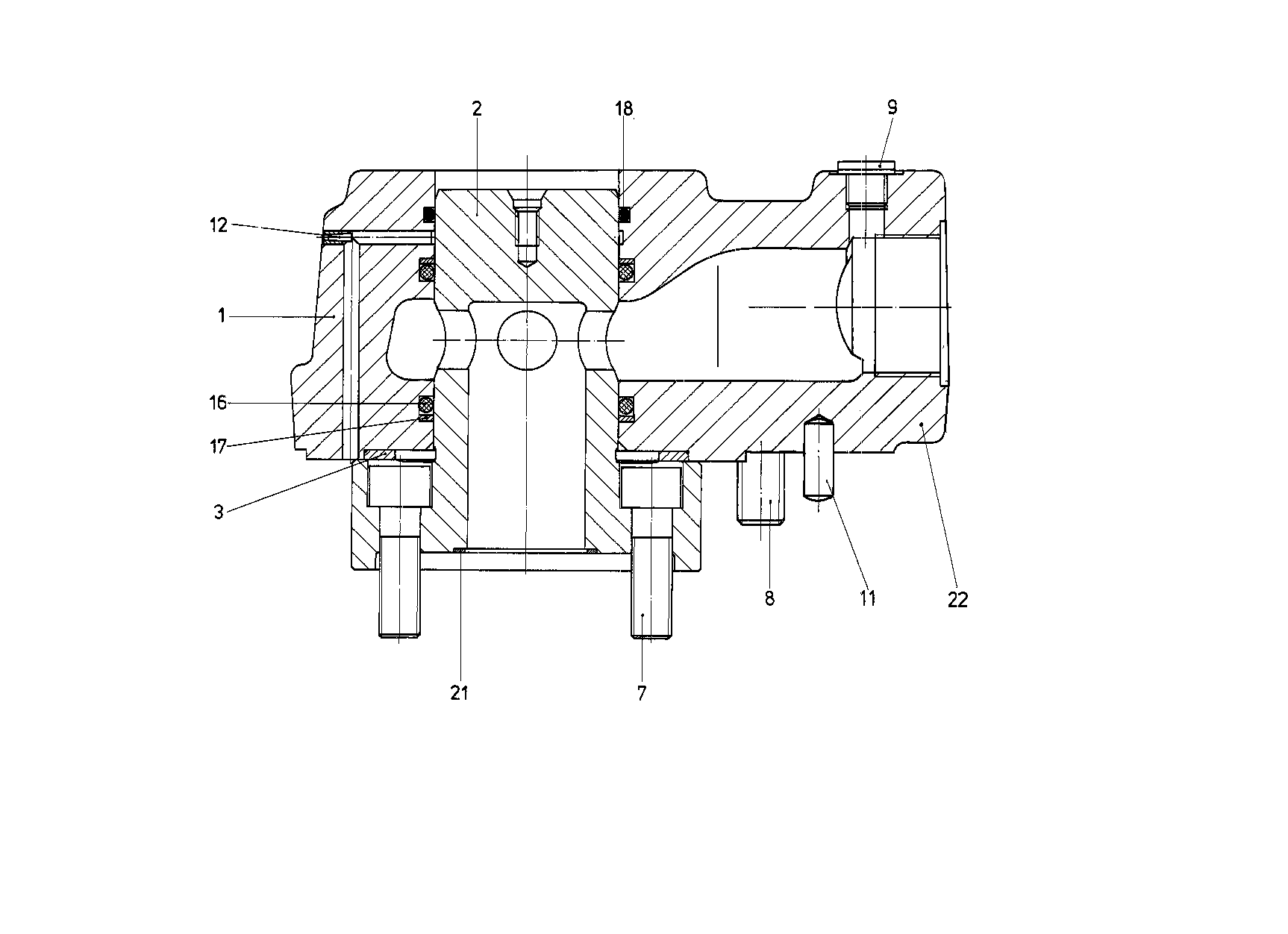

PIPE FLANGER910604836
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910604518 | PIPE FLANGE | 1 | |
| 2 | R910604631 | JOURNAL | 1 | |
| 3 | R910605026 | ADJUSTMENT SHIM | 1 | |
| 7 | R910604976 | SOCKET HEAD CAP SCREW | 6 | |
| 8 | R910209228 | SOCKET HEAD CAP SCREW | 4 | |
| 9 | R909151979 | SCREW PLUGD | 1 | |
| 11 | R910602051 | STRAIGHT PIN | 1 | |
| 12 | R910278378 | SEALING PLUGD | 1 | |
| 16 | R910984336 | SEALD | 2 | |
| 18 | R910605018 | O-RINGD | 1 | |
| 21 | R910343366 | SEAL RINGD | 1 | |
| 22 | R910102253 | O-RINGD | 2 |
