Assembly

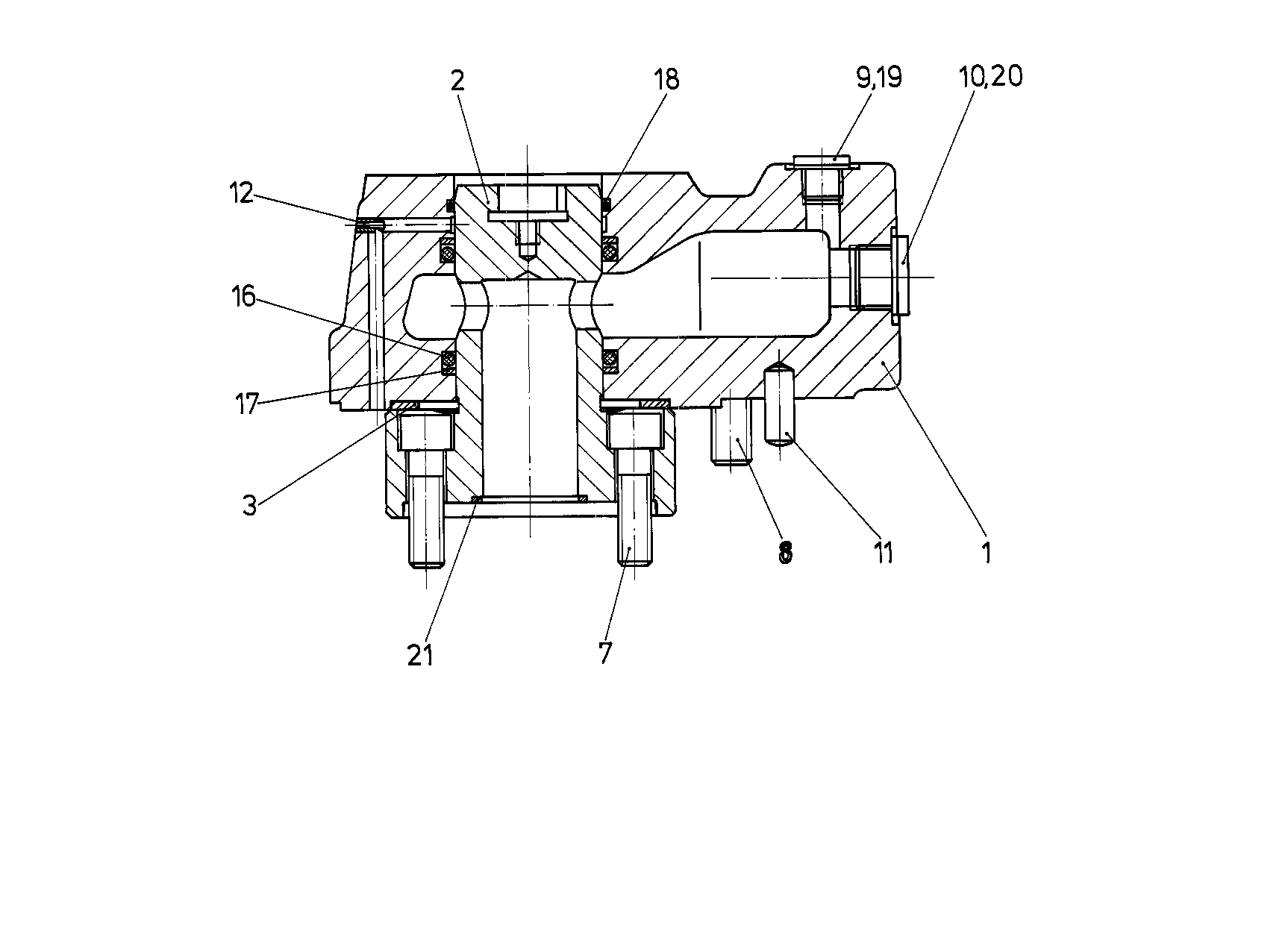

PIPE FLANGER910652938
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910652903 | PIPE FLANGE | 1 | |
| 2 | R910652881 | JOURNAL | 1 | |
| 3 | R910667692 | ADJUSTMENT SHIM | 1 | |
| 7 | R910220264 | SOCKET HEAD CAP SCREW | 6 | |
| 8 | R910402303 | SOCKET HEAD CAP SCREW | 4 | |
| 9 | R909153930 | SCREW PLUGD | 1 | |
| 10 | R909156654 | SCREW PLUGD | 1 | |
| 11 | R910602051 | STRAIGHT PIN | 1 | |
| R910278378 | SEALING PLUGD | 1 | ||
| R910984334 | SEALD | 2 | ||
| R910111627 | O-RINGD | 1 | ||
| R910614513 | SEAL RINGD | 1 |
