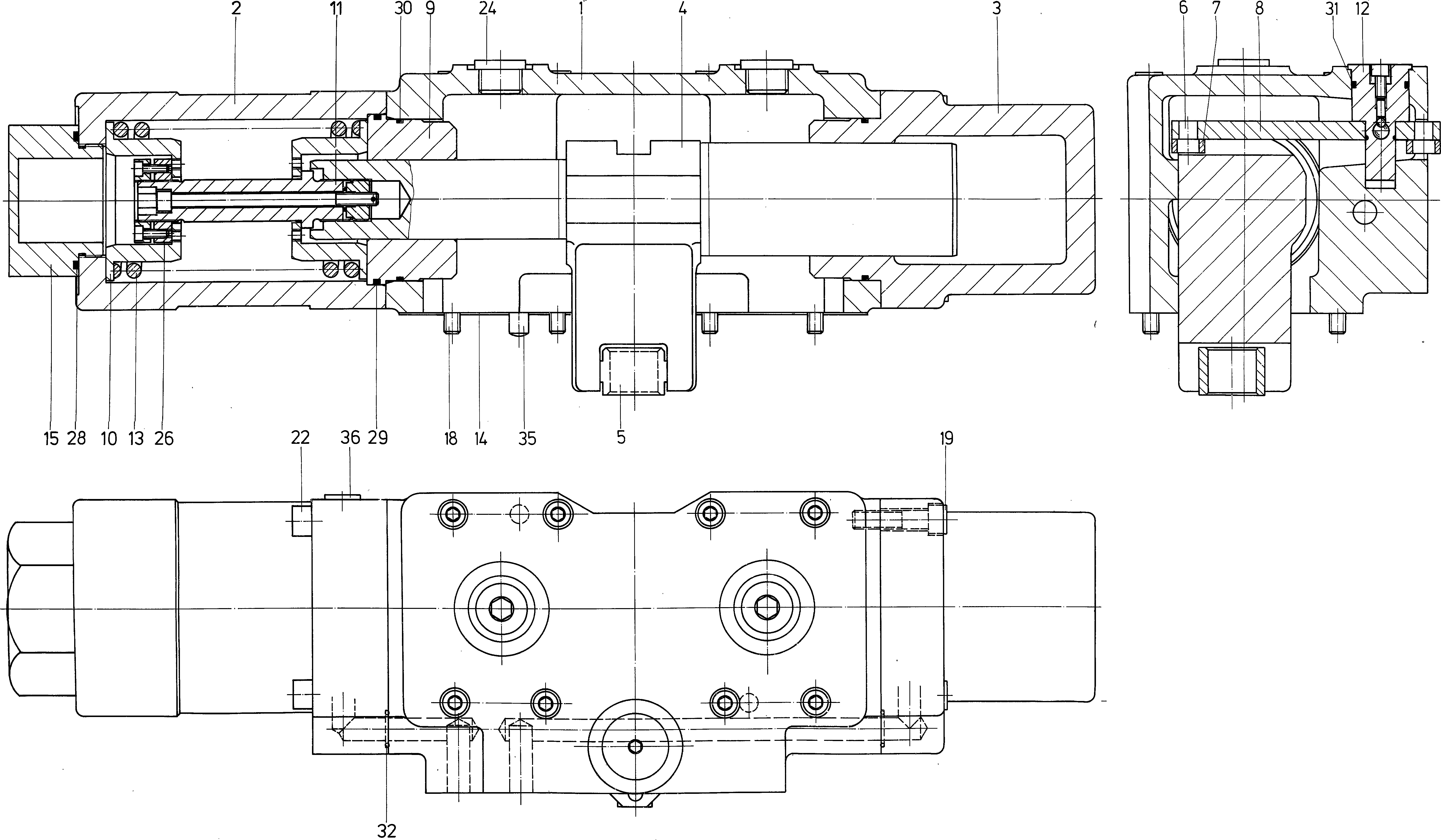

Assembly
CONTROLR910658154
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910619876 | CONTROL HOUSING | 1 | ||
| R910661244 | CYLINDER | 1 | ||
| R910619922 | CONTROL CYLINDER | 1 | ||
| R910661252 | ADJUSTING PISTON | 1 | ||
| R910619981 | SLIDER | 1 | ||
| R910427853 | DRIVER PIVOT | 2 | ||
| R910428078 | SLIDER | 2 | ||
| R910619973 | CONTROL LEVER | 1 | ||
| R910661295 | BUSHING | 1 | ||
| R910661309 | SPRING BUSH | 2 | ||
| R910908582 | STUD BOLT Assembly parts list →L | 1 | ||
| R910920188 | JOURNAL | 1 | ||
| R910775339 | COMPRESSION SPRING | 1 | ||
| R910619957 | SEALD | 1 | ||
| R910661287 | SCREW PLUGD | 1 | ||
| R910120286 | SOCKET HEAD CAP SCREW | 8 | ||
| R910109649 | SOCKET HEAD CAP SCREW | 4 | ||
| R910661325 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R910908560 | ADJUSTMENT NUT Assembly parts list →L | 1 | ||
| R910413038 | O-RINGD | 1 | ||
| R910384275 | O-RINGD | 1 | ||
| R910111902 | O-RINGD | 2 | ||
| R913029707 | QUAD RINGD | 1 | ||
| R910111082 | O-RINGD | 2 | ||
| R910602051 | STRAIGHT PIN | 2 | ||
| R909151979 | SCREW PLUGD | 1 |
