Assembly

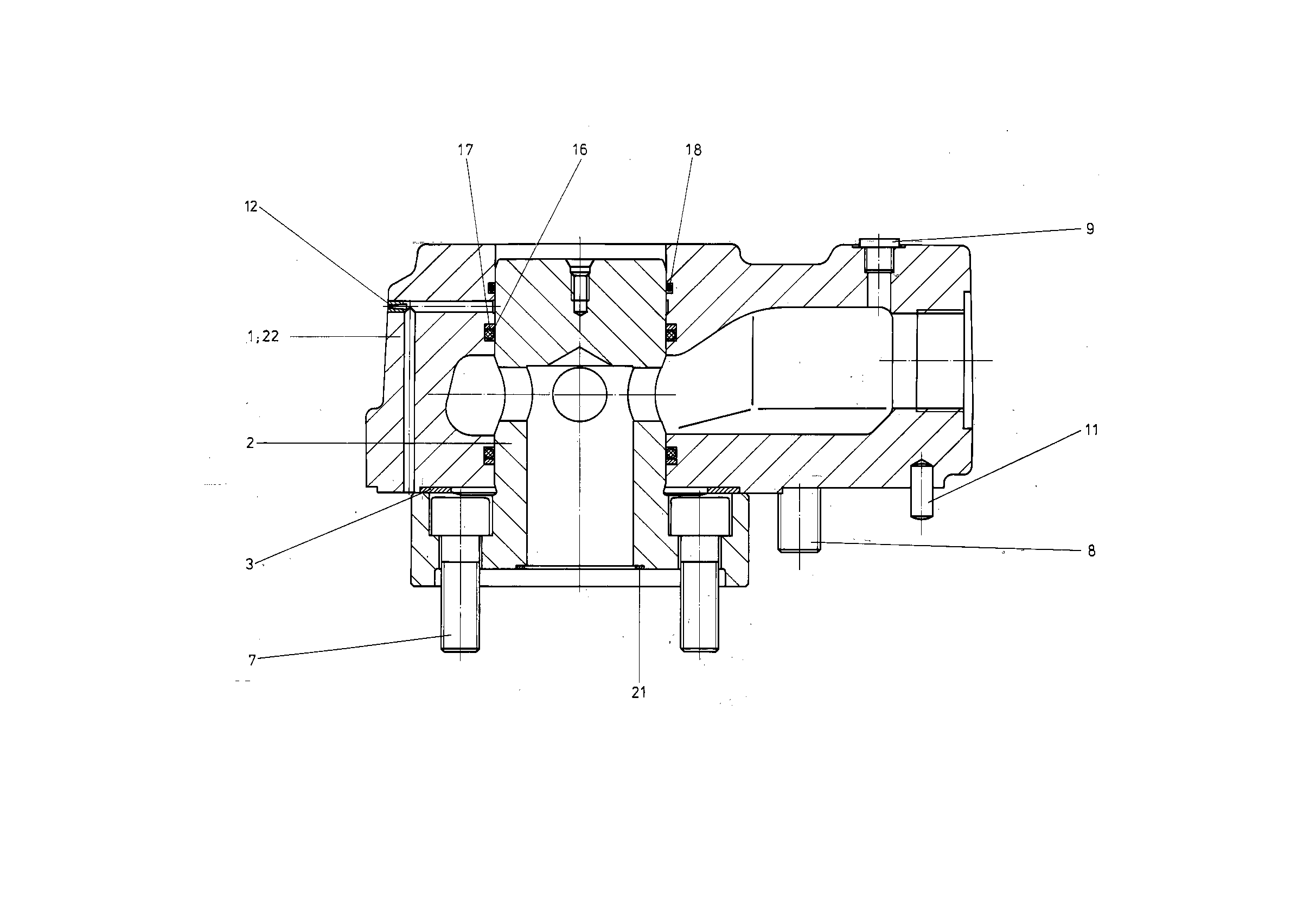

PIPE FLANGER910659096
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910660531 | PIPE FLANGE | 1 | ||
| R910659193 | JOURNAL | 1 | ||
| R910668605 | ADJUSTMENT SHIM | 1 | ||
| R910119113 | SOCKET HEAD CAP SCREW | 6 | ||
| R902572930 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R910602051 | STRAIGHT PIN | 1 | ||
| R910278378 | SEALING PLUGD | 1 | ||
| R910984337 | SEALD | 2 | ||
| R910102768 | O-RINGD | 1 | ||
| R910659134 | SEAL RINGD | 1 | ||
| R910102334 | O-RINGD | 2 |
