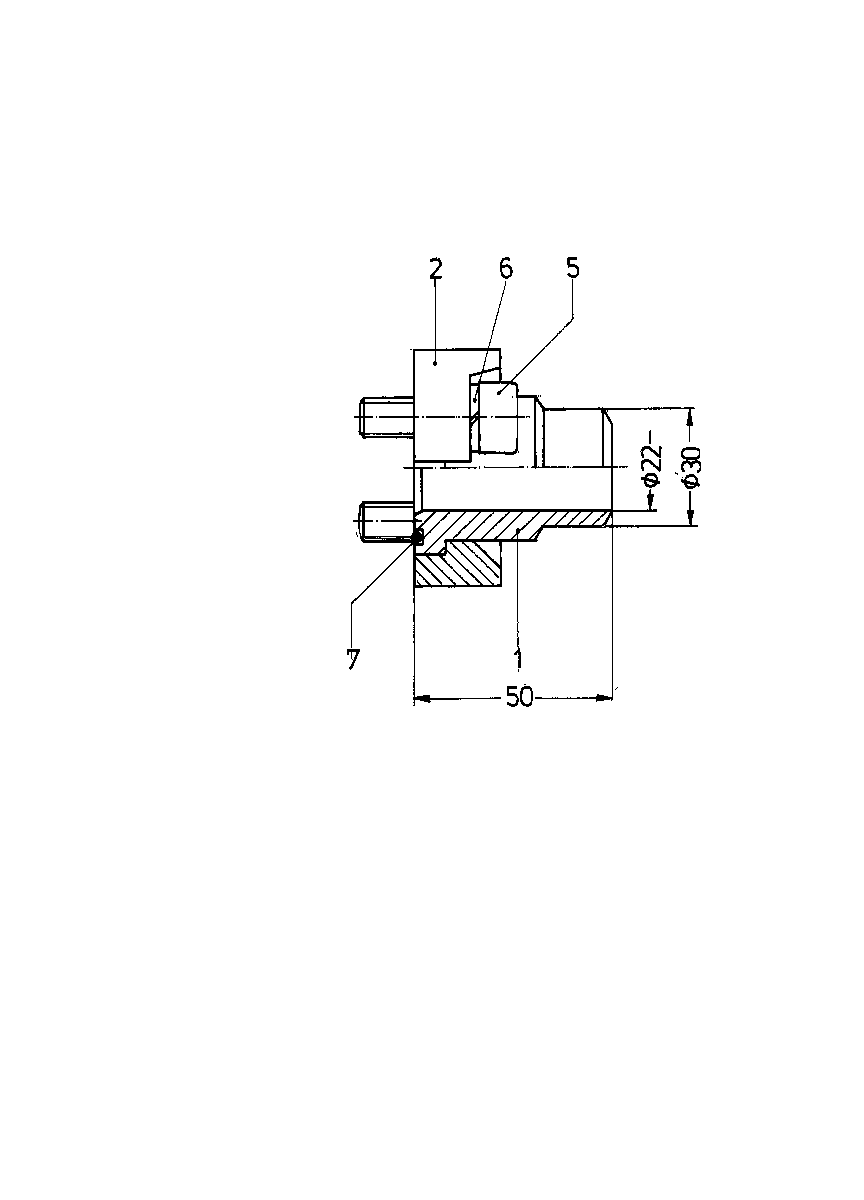

Assembly
FLANGER910697737
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 10 | R910697893 | FLANGE SHOULDER | 1 | |
| 20 | R910971216 | SPLIT FLANGE HALF | 2 | |
| 50 | R910109614 | SOCKET HEAD CAP SCREW | 4 | |
| 60 | R910100765 | SPRING LOCK WASHER | 4 | |
| 70 | R910532177 | O-RINGD | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 10 | R910697893 | FLANGE SHOULDER | 1 | |
| 20 | R910971216 | SPLIT FLANGE HALF | 2 | |
| 50 | R910109614 | SOCKET HEAD CAP SCREW | 4 | |
| 60 | R910100765 | SPRING LOCK WASHER | 4 | |
| 70 | R910532177 | O-RINGD | 1 |
