Assembly

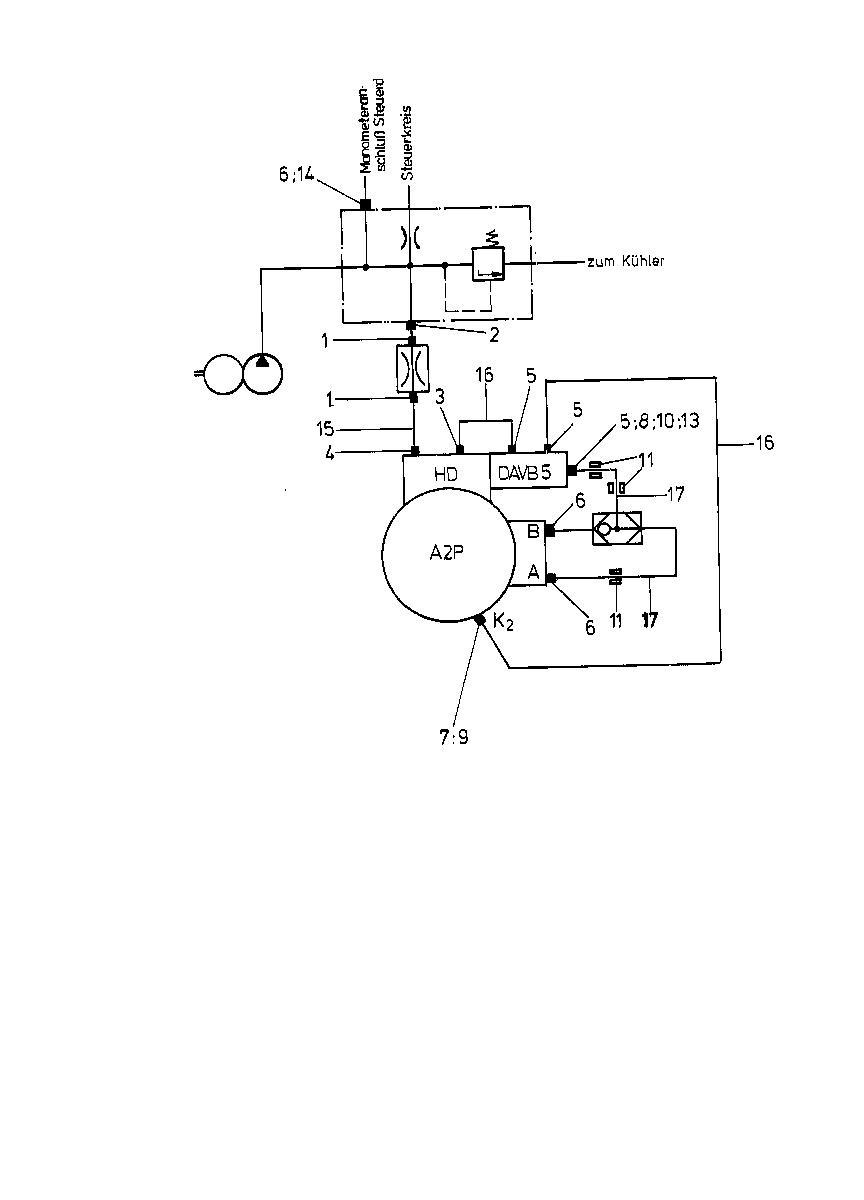

PIPING PLANR910711128
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910788384 | THREADED FASTENER | 2 | |
| 2 | R910760471 | THREADED FASTENER | 1 | |
| 3 | R910755788 | THREADED FASTENER | 1 | |
| 4 | R910903350 | THREADED FASTENER | 1 | |
| 5 | R910755761 | THREADED FASTENER | 3 | |
| 6 | R910778788 | THREADED FASTENER | 3 | |
| 7 | R910913138 | THREADED FASTENER | 1 | |
| 8 | R910778796 | THREADED FASTENER | 1 | |
| 9 | R910788406 | THREADED FASTENER | 1 | |
| 10 | R910762016 | THREADED FASTENER | 1 | |
| R910965694 | FASTENING CLAMP | 3 | ||
| 13 | R910795224 | PLUG | 1 | |
| 14 | R910723126 | PLUG | 1 | |
| 15 | R910099074 | PIPEMYANMAR | 600 | |
| R910997099 | PIPEMYANMAR | 300 | ||
| 17 | R910997196 | PIPE | 1500 | |
| 18 | R910755591 | COIL | 3 |
