Assembly

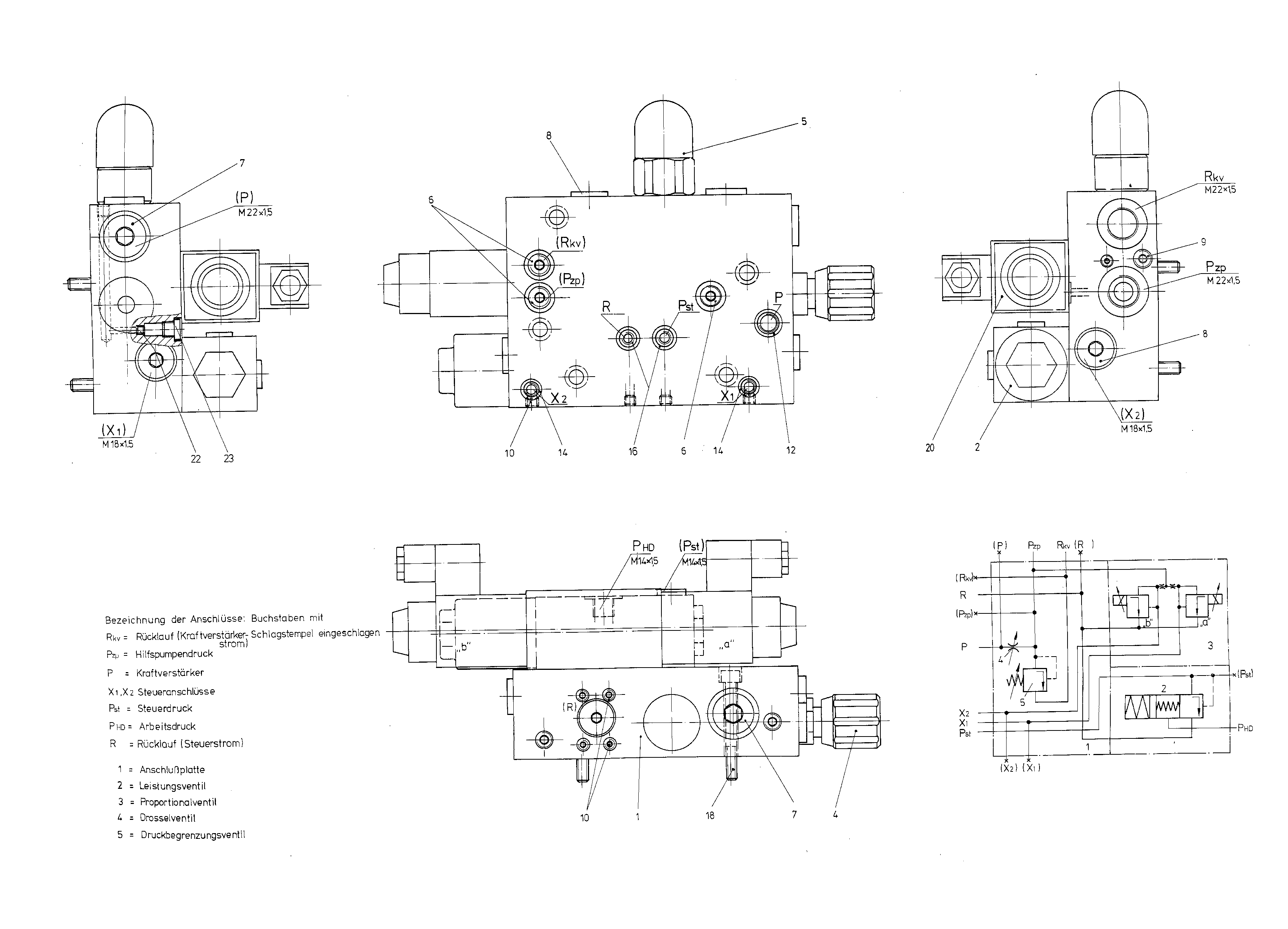

BLOCKR910747211
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910652474 | CONNECTION PLATE | 1 | ||
| R910443417 | PERFORMANCE LIMIT VALVE Assembly parts list →L | 1 | ||
| R910640611 | THROTTLE VALVE | 1 | ||
| R900424147 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| 6 | R910108065 | SCREW PLUG | 3 | |
| R909151694 | SCREW PLUGD | 2 | ||
| 8 | R909153815 | SCREW PLUGD | 3 | |
| 9 | R910113115 | SCREW PLUG | 3 | |
| R910230545 | SCREW PLUG | 9 | ||
| 12 | R910415537 | O-RINGD | 1 | |
| R910102032 | O-RINGD | 2 | ||
| R910111082 | O-RINGD | 2 | ||
| R910120251 | SOCKET HEAD CAP SCREW | 3 | ||
| R910977595 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100889 | SETSCREW | 2 | ||
| R909153364 | SCREW PLUGD | 2 |
