Assembly

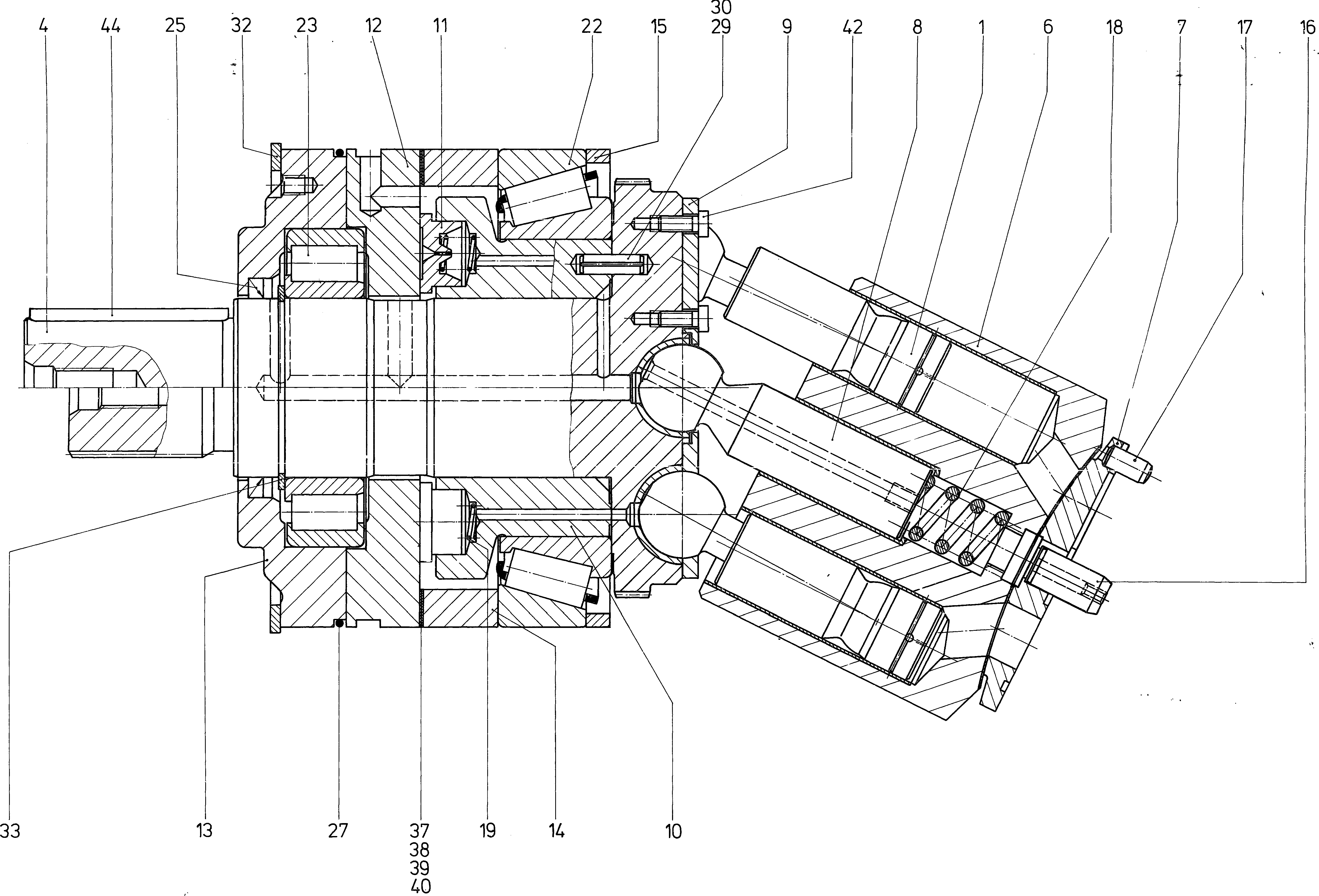

ROTARY GROUPR910763691
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910714852 | PISTON | 7 | ||
| R902534567 | DRIVE FLANGE | 1 | ||
| R910602086 | CYLINDER | 1 | ||
| R910602124 | DISTRIBUTOR PLATE | 1 | ||
| R910795119 | THRUST JOURNAL | 1 | ||
| R902556372 | RETAINING PLATE | 1 | ||
| R910714887 | PAD SUPPORT WITH SEAL | 1 | ||
| R910714798 | PAD | 7 | ||
| R910714879 | SLIDING DISC | 1 | ||
| R910904247 | SEALING FLANGE | 1 | ||
| R910714836 | SPACER RING | 1 | ||
| R910714828 | RING | 1 | ||
| R902555514 | CENTERING BOLT | 1 | ||
| R910915947 | STRAIGHT PIN | 1 | ||
| R910678767 | COMPRESSION SPRING | 1 | ||
| R910908452 | COMPRESSION SPRING | 7 | ||
| R902650819 | TAPERED-ROLLER BEARING | 1 | ||
| R910715263 | CYL. ROLLER BEARING | 1 | ||
| R910667447 | SHAFT SEALING RINGD | 1 | ||
| R910625051 | O-RINGD | 1 | ||
| R910127698 | RETAINING RING | 1 | ||
| R910083755 | RETAINING RING | 1 | ||
| R910625604 | SHIM RING | 1 | ||
| R910625612 | SHIM RING | 1 | ||
| R910625647 | SHIM RING | 2 | ||
| R902602715 | PAN-HEAD SCREW | 14 | ||
| R910444707 | PARALLEL KEY | 1 |
