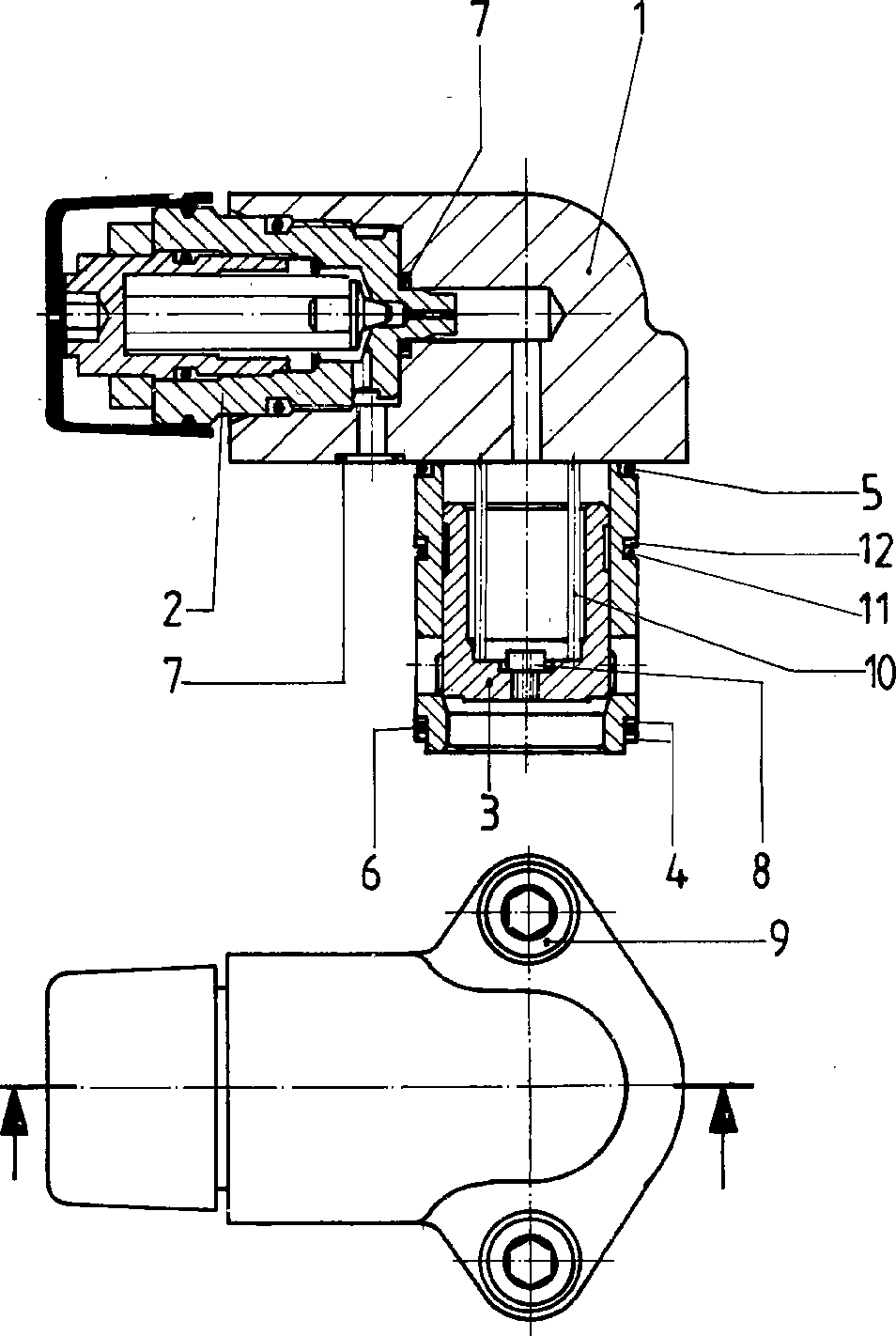

Assembly
PILOT VALVER910781657
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910781673 | HOUSING | 1 | ||
| R901226478 | PRESSURE RELIEF VALVE | 1 | ||
| R910618837 | MOUNTING KIT | 1 | ||
| R910618845 | BACKUP RING | 2 | ||
| R910959081 | O-RINGD | 1 | ||
| R910618896 | O-RINGD | 1 | ||
| R910976302 | O-RINGD | 2 | ||
| R910618926 | NOZZLE | 1 | ||
| R910109487 | SOCKET HEAD CAP SCREW | 2 | ||
| R910618918 | COMPRESSION SPRING | 1 | ||
| R910909942 | O-RINGD | 1 | ||
| R910932760 | BACKUP RING | 1 |
