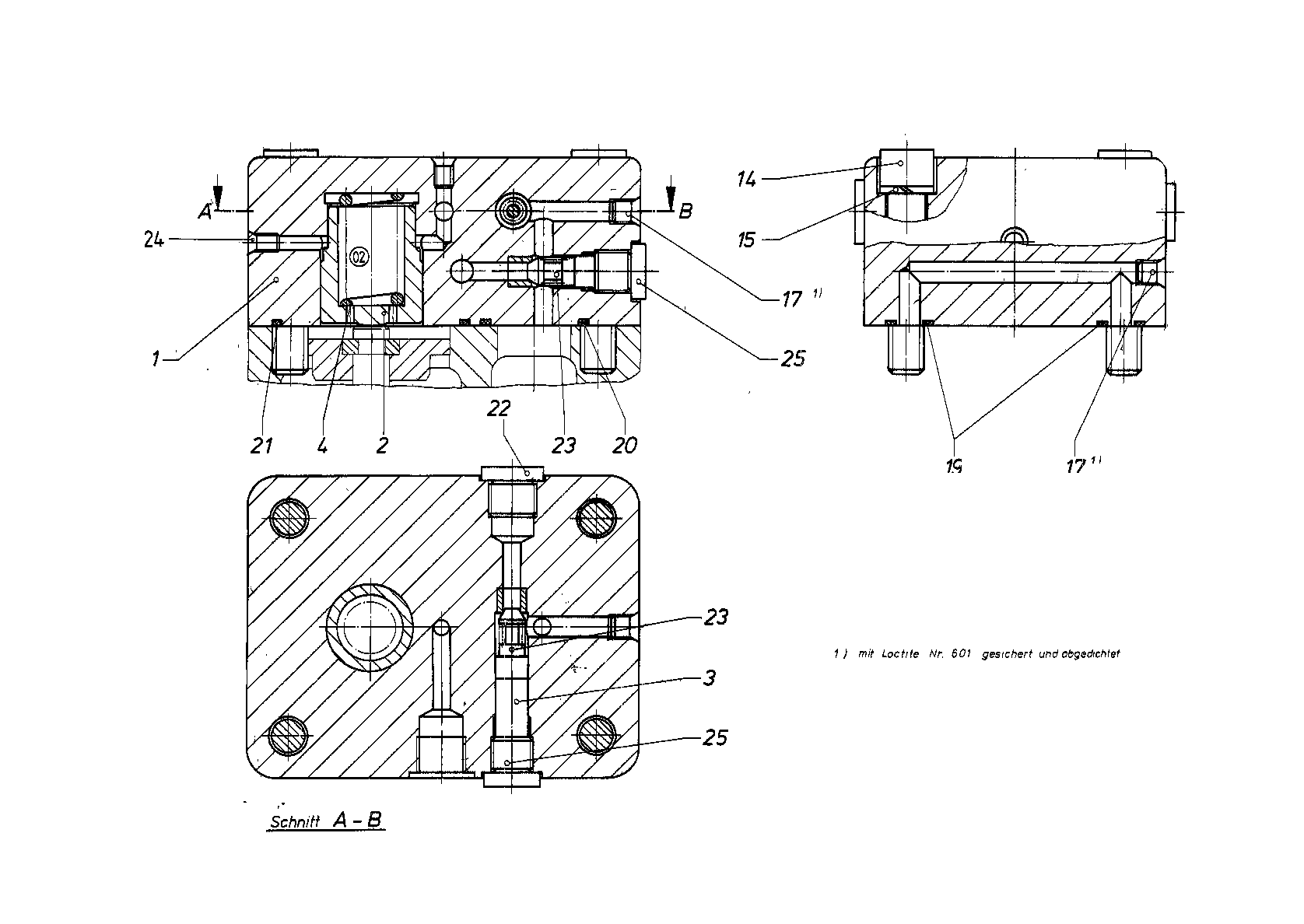

Assembly
COVERR910800200
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910847232 | COVER | 1 | ||
| 2 | R910847259 | CONTROL PISTON | 1 | |
| 3 | R910805947 | SPACER | 1 | |
| R910771139 | COMPRESSION SPRING | 1 | ||
| R910109835 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100773 | SPRING LOCK WASHER | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 19 | R910535397 | O-RINGD | 2 | |
| 20 | R910531251 | O-RINGD | 1 | |
| 21 | R910587192 | O-RINGD | 1 | |
| R909156864 | SCREW PLUGD | 1 | ||
| R910579718 | MOUNTING KIT | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153930 | SCREW PLUGD | 2 |
