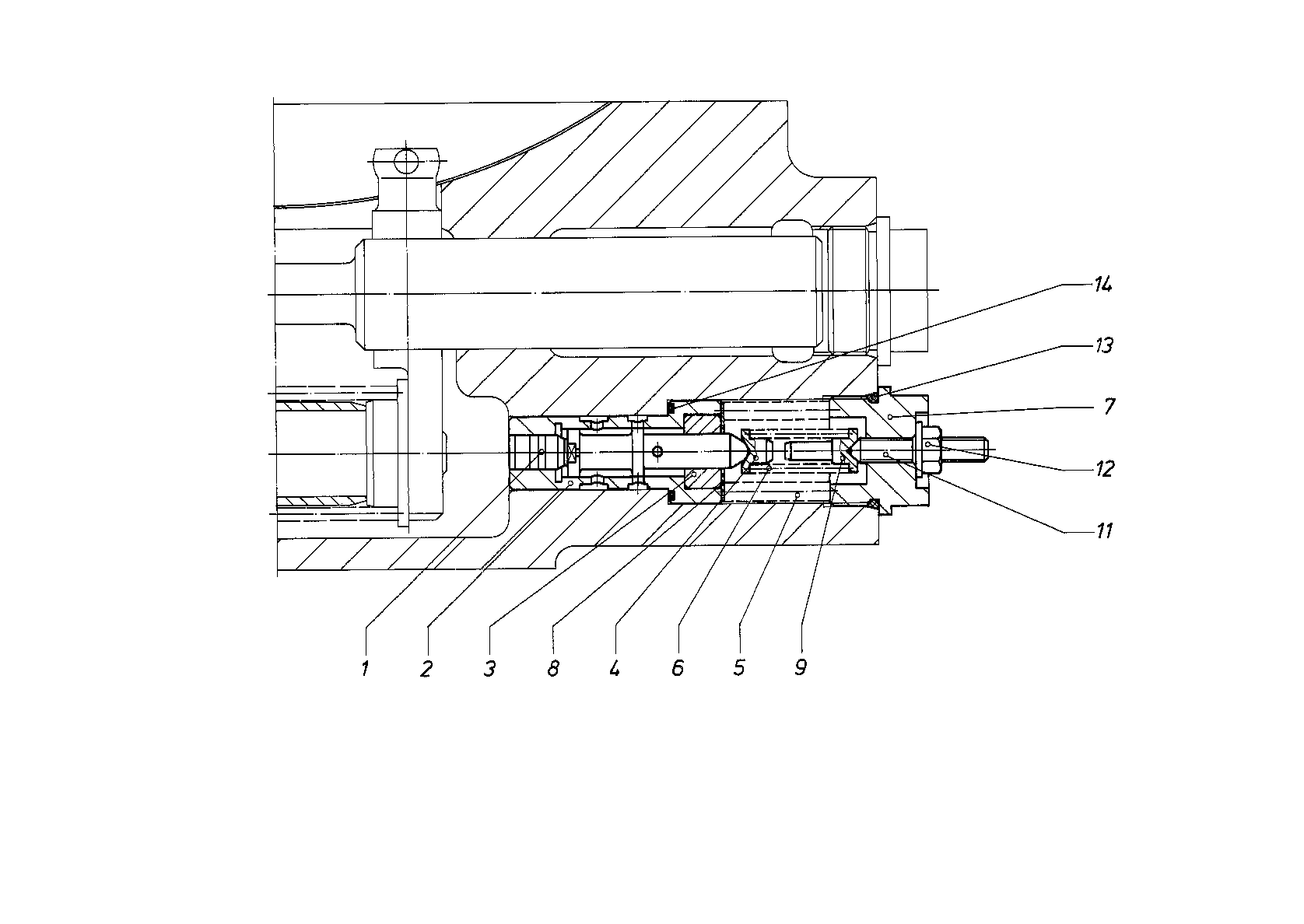

Assembly
CONTROL PARTR910800279
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 50 | R910800244 | CONTROL PISTON | 1 | |
| 50 | R910800252 | CONTROL SLEEVE | 1 | |
| 50 | R910800201 | GUIDE DISC | 1 | |
| 50 | R910837652 | SPRING DISK | 1 | |
| 50 | R910591106 | COMPRESSION SPRING | 1 | |
| 50 | R910586803 | COMPRESSION SPRING | 1 | |
| 50 | R910591289 | SCREW PLUG | 1 | |
| 50 | R910800384 | WASHER | 1 | |
| 50 | R910837644 | SPRING BOLT | 1 | |
| 61 | R910585505 | SETSCREW | 1 | |
| 61 | R909152426 | SEALING NUTD | 1 | |
| 61 | R910977056 | O-RINGD | 1 |
