Assembly

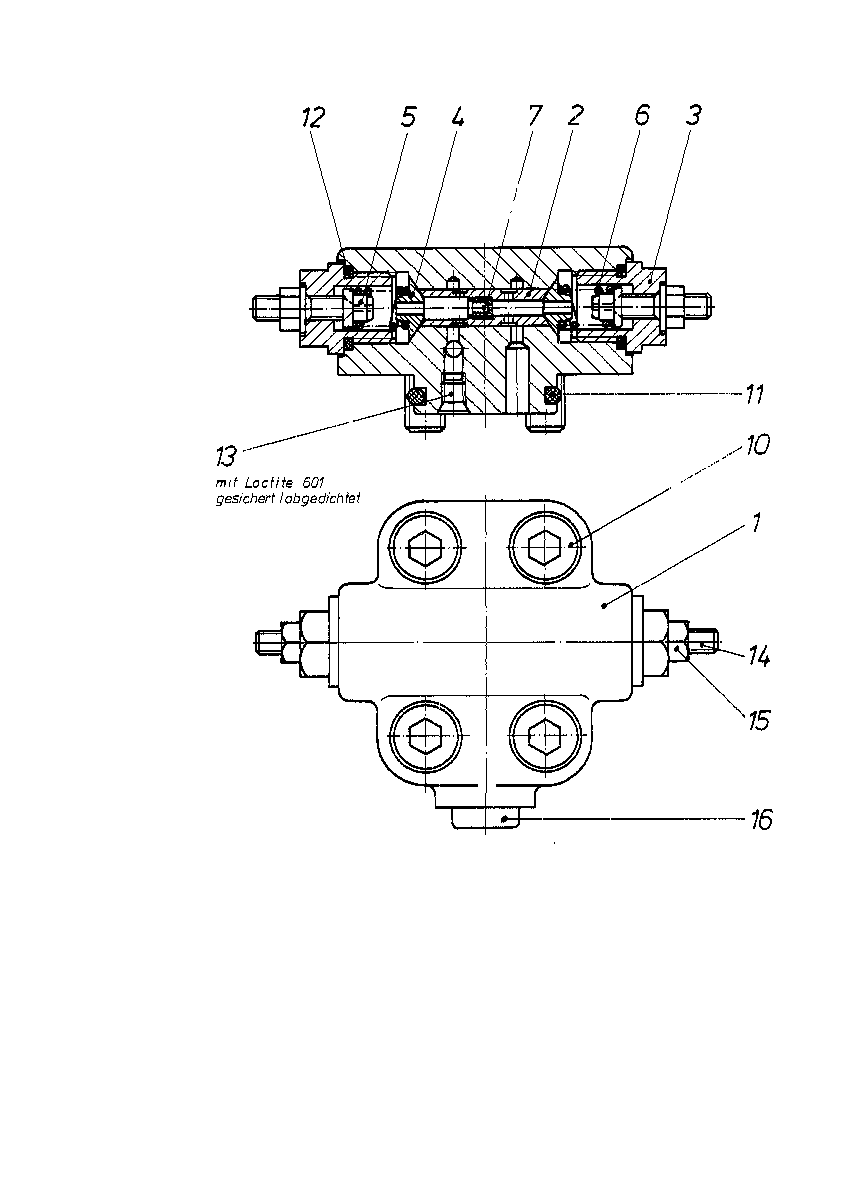

SWIVEL TIME LIMITING VALVER910801381
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 50 | R910801715 | HOUSING | 1 | |
| 50 | R909077836 | PISTON | 1 | |
| 50 | R909077837 | SCREW PLUG | 2 | |
| 50 | R909077334 | SPRING DISK | 2 | |
| 50 | R902531131 | SPRING DISK | 2 | |
| 50 | R910591955 | COMPRESSION SPRING | 2 | |
| 50 | R909077838 | THROTTLE SCREW | 1 | |
| 61 | R910109789 | SOCKET HEAD CAP SCREW | 4 | |
| 61 | R910103896 | O-RINGD | 1 | |
| 61 | R910514985 | O-RINGD | 2 | |
| 61 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 61 | R909153284 | SETSCREW | 2 | |
| 61 | R909152425 | SEALING NUTD | 2 | |
| 61 | R909151692 | SCREW PLUGD | 1 |
