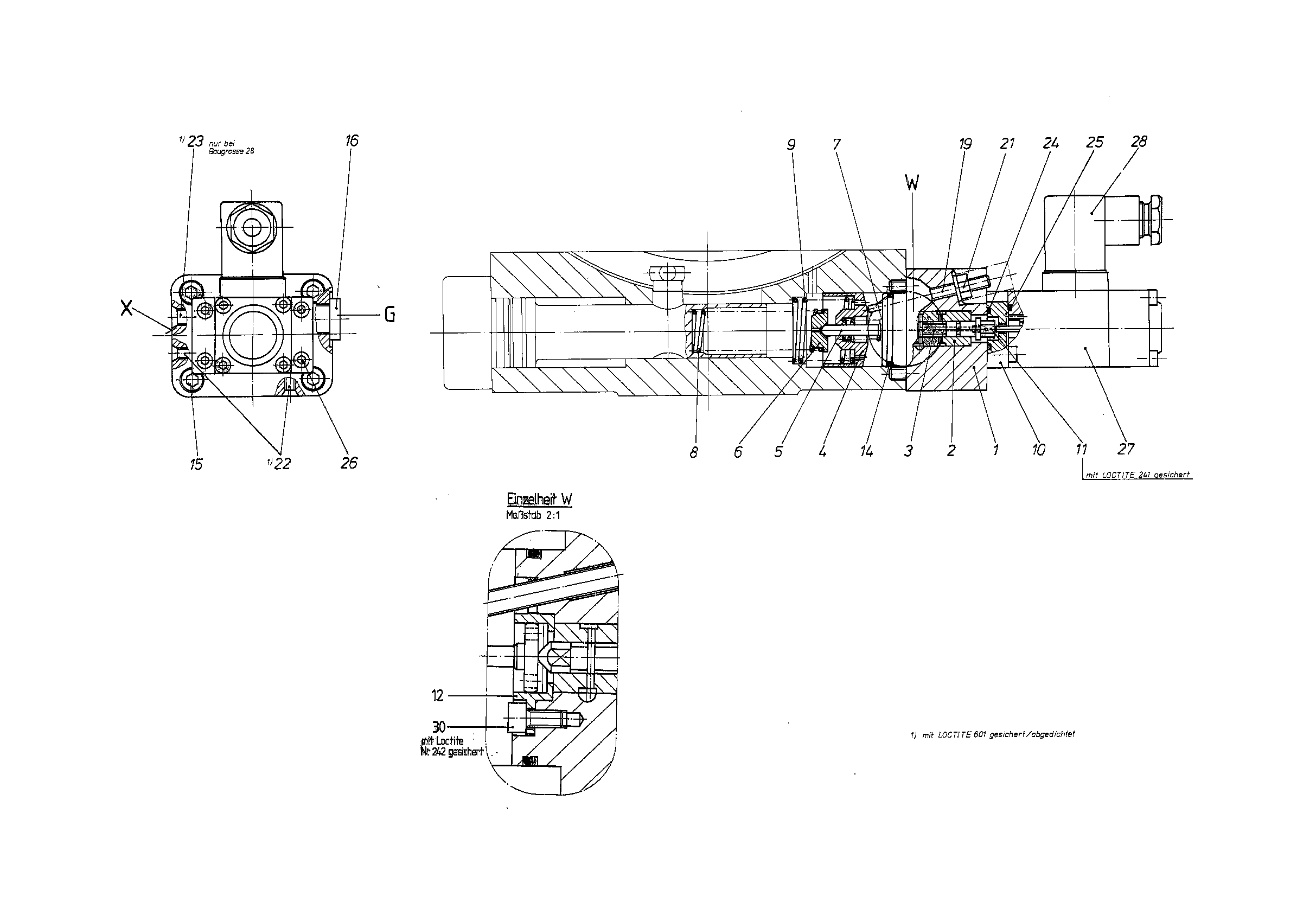

Assembly
CONTROL PARTR910802435
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910801736 | CONTROL HOUSING | 1 | ||
| R909412246 | CONTROL SLEEVE | 1 | ||
| R909412266 | CONTROL PISTON | 1 | ||
| R910801595 | ADJUSTING BUSHING | 1 | ||
| R909418761 | SPRING BOLT | 1 | ||
| R910801587 | SPRING DISK | 1 | ||
| R910801625 | COMPRESSION SPRING | 1 | ||
| R910801789 | COMPRESSION SPRING | 1 | ||
| R910801627 | COMPRESSION SPRING | 1 | ||
| R910801605 | INTERMEDIATE PLATE | 1 | ||
| R910801584 | STOP SCREW | 1 | ||
| R910924892 | STOP BUSHING | 1 | ||
| R910585238 | O-RINGD | 1 | ||
| R910109509 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 1 | ||
| R910545422 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910525618 | O-RINGD | 1 | ||
| R910802436 | O-RINGD | 1 | ||
| R910120111 | SOCKET HEAD CAP SCREW | 4 | ||
| R910803236 | PROPORTIONAL SOLENOID Assembly parts list →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R910119512 | SOCKET HEAD CAP SCREW | 4 |
