Assembly

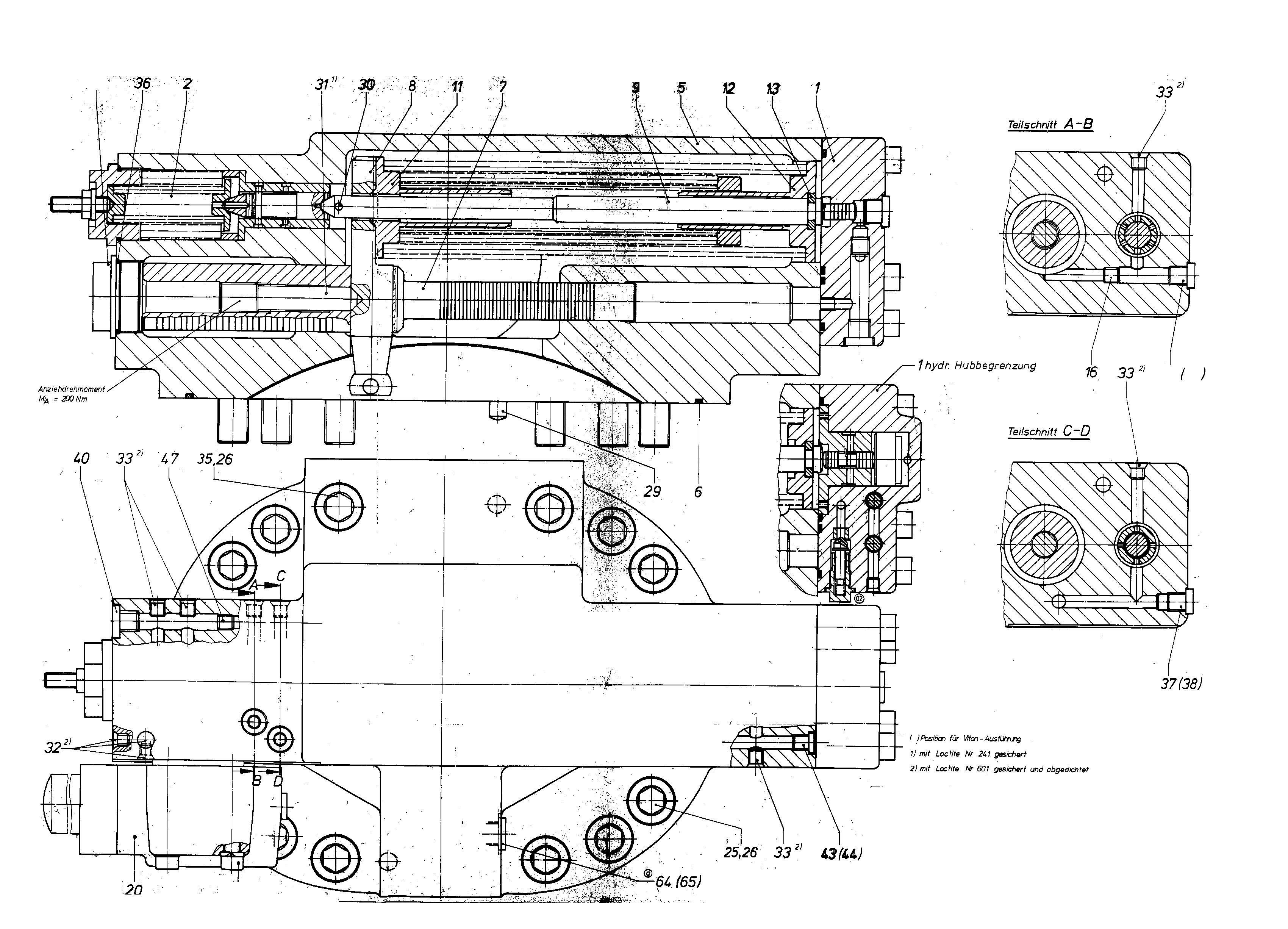

AXIAL-PISTON PUMPR910803225
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910800513 | COVER Assembly parts list →L | 1 | ||
| 2 | R910599212 | CONTROL PART Assembly parts list →L | 1 | |
| 5 | R910809454 | COVER PLATE | 1 | |
| 6 | R910801399 | O-RINGD | 1 | |
| R910841994 | POSITIONING PISTON | 1 | ||
| 8 | R902413796 | POSITIONING STUD | 1 | |
| 9 | R910596752 | GUIDE ROD | 1 | |
| 11 | R910802522 | SPRING BUSH | 1 | |
| 12 | R910802549 | SPRING BUSH | 1 | |
| R910582743 | RING | 1 | ||
| R910571288 | THROTTLE SCREW | 1 | ||
| R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| 21 | R910583758 | SCREW PLUG | 1 | |
| 25 | R910705799 | SOCKET HEAD CAP SCREW | 10 | |
| R910100838 | SPRING LOCK WASHER | 12 | ||
| 27 | R910295396 | SOCKET HEAD CAP SCREW | 4 | |
| 28 | R910100765 | SPRING LOCK WASHER | 4 | |
| R910514179 | STRAIGHT PIN | 2 | ||
| 30 | R910529206 | SLOTTED SPRING PIN | 1 | |
| 31 | R902533059 | SETSCREW | 1 | |
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831320 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910801402 | SOCKET HEAD CAP SCREW | 2 | ||
| R910587214 | O-RINGD | 1 | ||
| 37 | R909156650 | SCREW PLUGD | 2 | |
| R909153930 | SCREW PLUGD | 1 | ||
| 43 | R909156649 | SCREW PLUGD | 1 | |
| R910118621 | SETSCREW | 1 | ||
| 64 | R909156864 | SCREW PLUGD | 1 |
