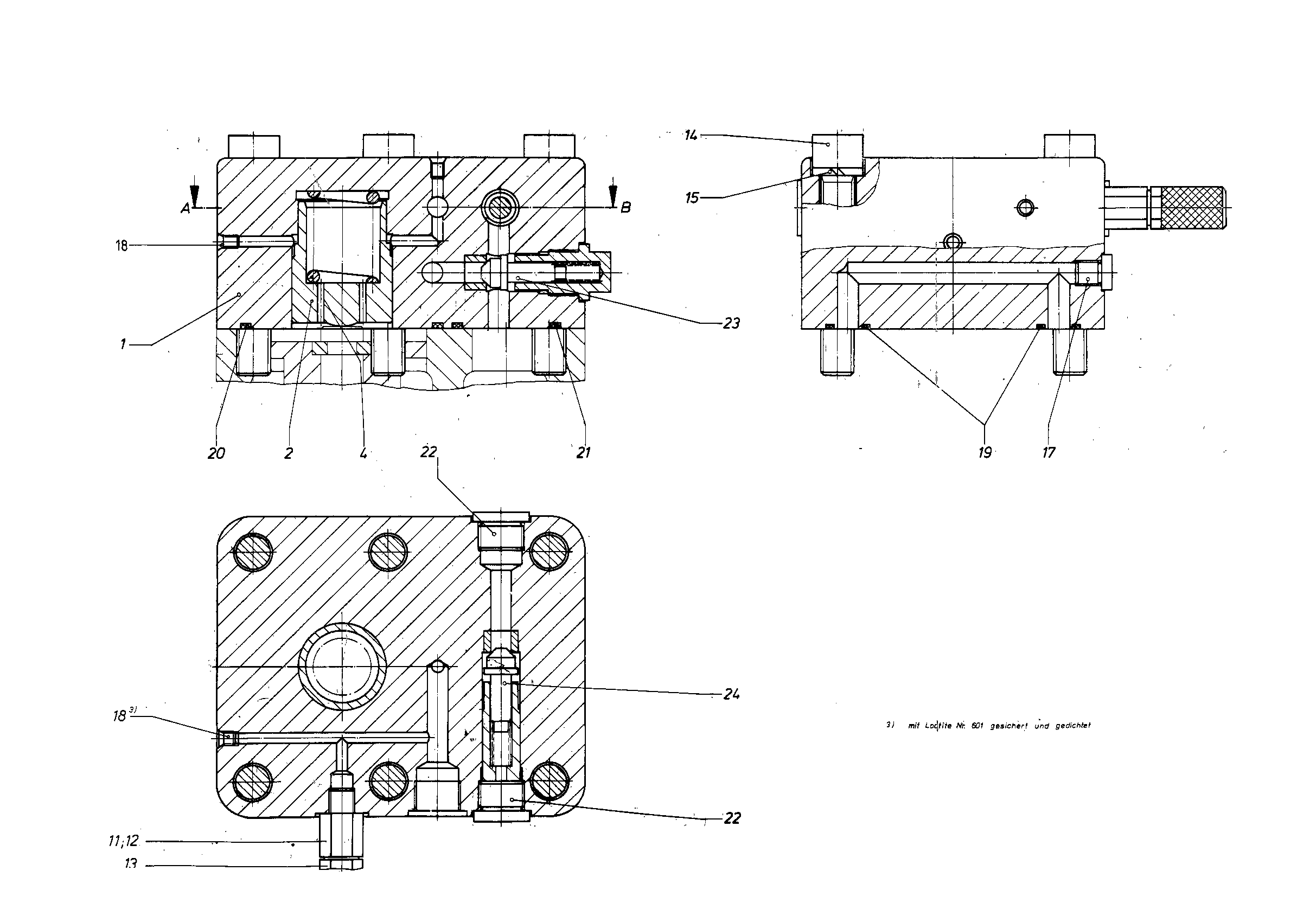

Assembly
COVERR910803270
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910803271 | COVER | 1 | |
| 2 | R910847143 | CONTROL PISTON | 1 | |
| R910581224 | COMPRESSION SPRING | 1 | ||
| R910744522 | SEAL RINGD | 1 | ||
| R910802016 | REDUCER SCREW | 1 | ||
| R910726761 | TEST POINT | 1 | ||
| 14 | R910513016 | SOCKET HEAD CAP SCREW | 6 | |
| 15 | R910100803 | SPRING LOCK WASHER | 6 | |
| R909151692 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910514985 | O-RINGD | 2 | ||
| R910672017 | O-RINGD | 1 | ||
| R910977050 | O-RINGD | 1 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R910805513 | NON-RETURN VALVE Assembly parts list →L | 1 | ||
| 24 | R910805521 | NON-RETURN VALVE Assembly parts list →L | 1 |
