Assembly

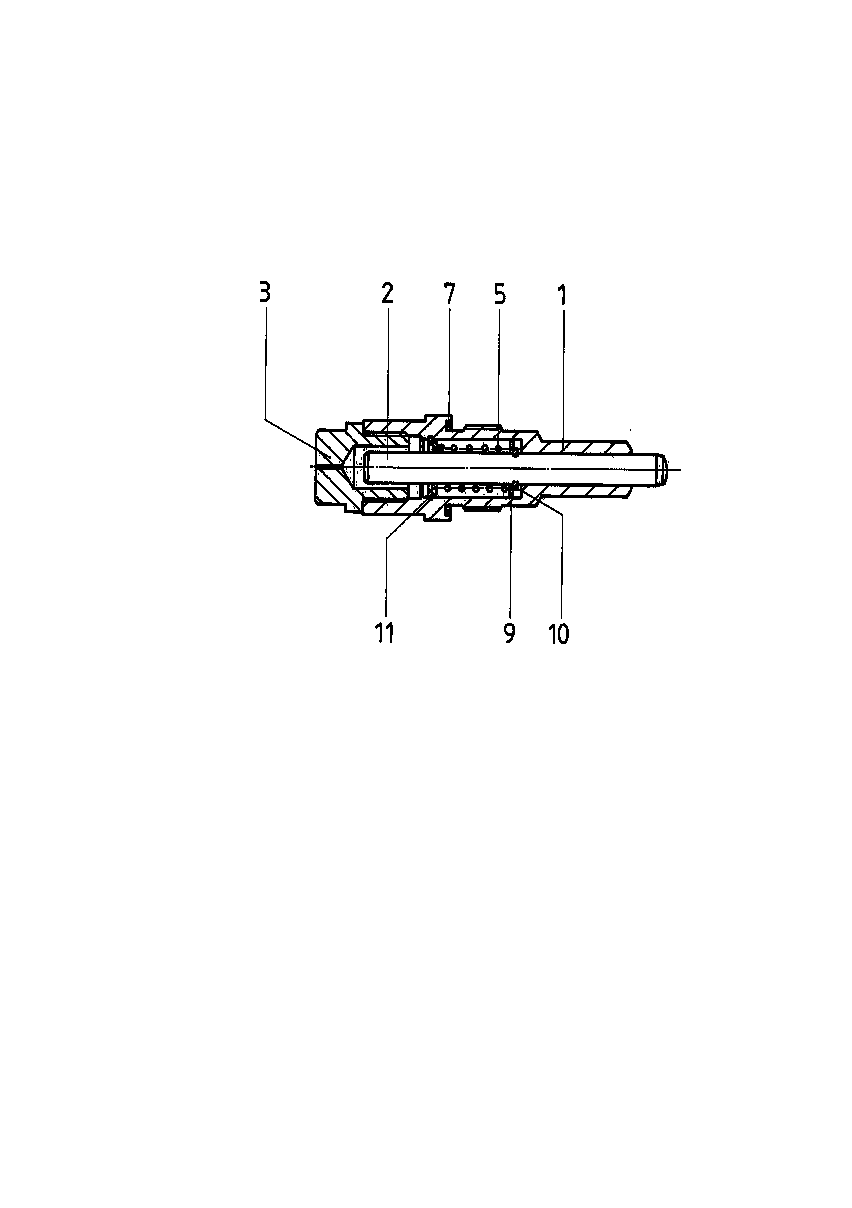

INDICATING DEVICER910803310
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910803311 | PIN HOUSING | 1 | |
| 2 | R910803309 | SPRING BOLT | 1 | |
| 3 | R910803307 | SCREW PLUG | 1 | |
| 5 | R910008389 | COMPRESSION SPRING | 1 | |
| 7 | R910732133 | SEAL RINGD | 1 | |
| 9 | R910439835 | SHIM RING | 2 | |
| R910803305 | SNAP RING | 1 | ||
| 11 | R910082945 | RETAINING RING | 1 |
