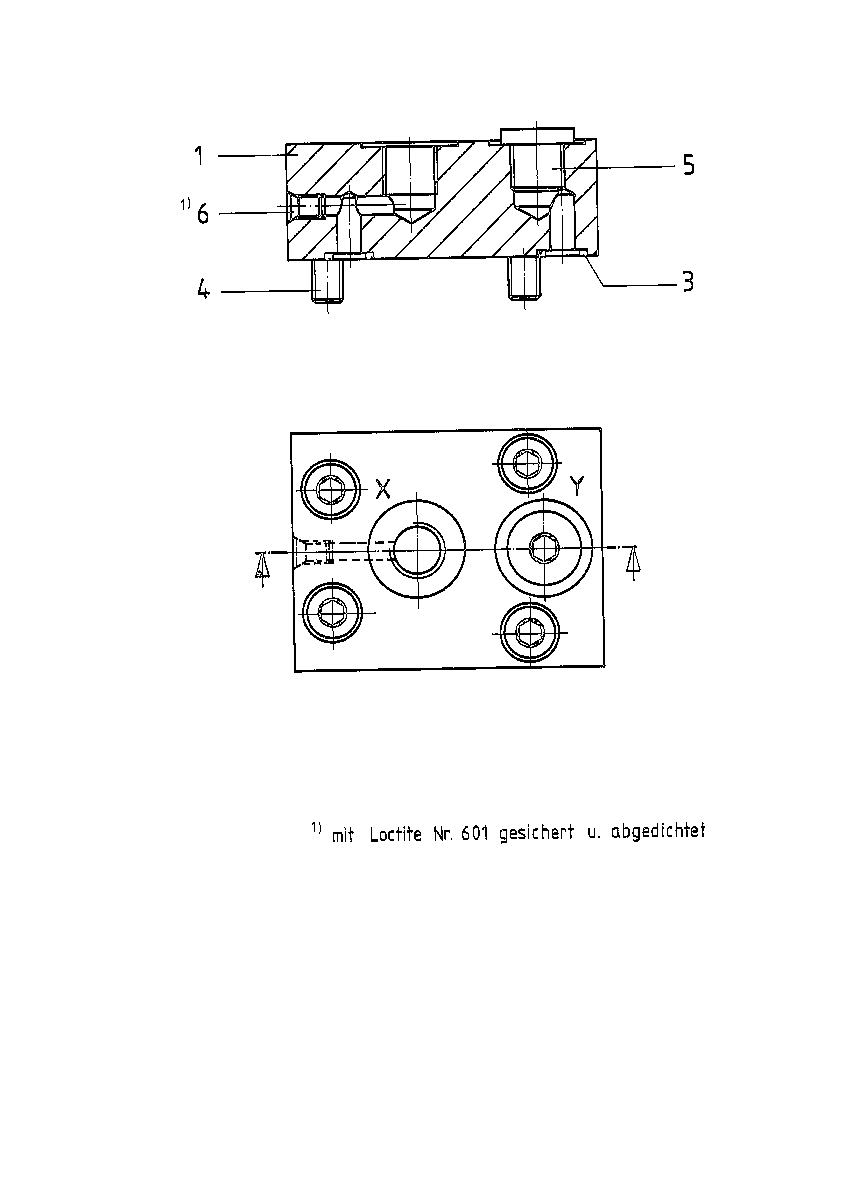

Assembly
CONNECTION PLATER910803422
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910803104 | CONNECTION PLATE | 1 | |
| 3 | R910593168 | O-RINGD | 2 | |
| 4 | R910109487 | SOCKET HEAD CAP SCREW | 4 | |
| 5 | R913011609 | SCREW PLUGD | 1 | |
| 6 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910803104 | CONNECTION PLATE | 1 | |
| 3 | R910593168 | O-RINGD | 2 | |
| 4 | R910109487 | SOCKET HEAD CAP SCREW | 4 | |
| 5 | R913011609 | SCREW PLUGD | 1 | |
| 6 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
