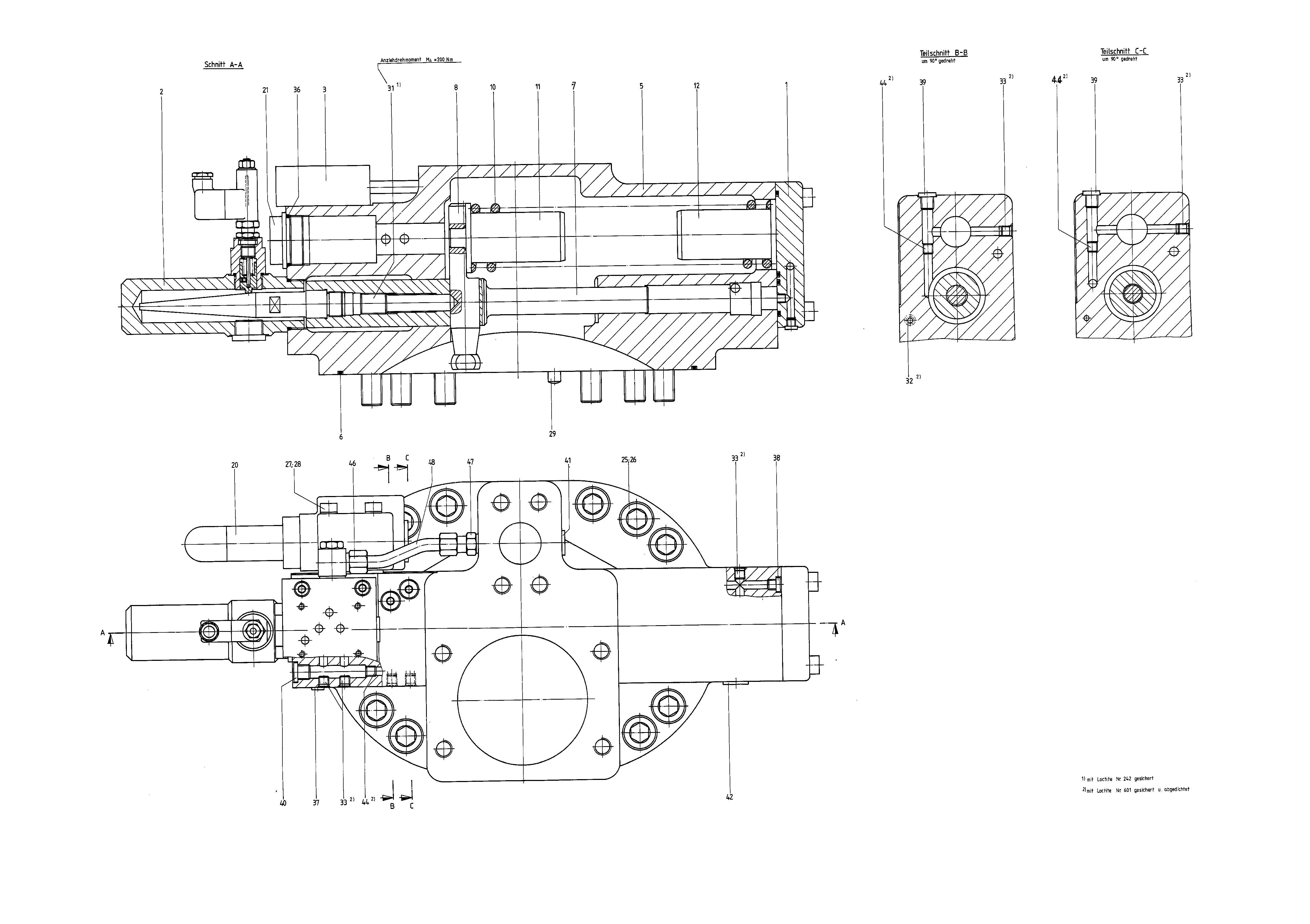

Assembly
CONTROLR910803533
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910597171 | COVER Assembly parts list →L | 1 | |
| 2 | R910803522 | INDUCTIVE DISPL. PICK-UP Assembly parts list →L | 1 | |
| 3 | R910803530 | INTERMEDIATE PLATE Assembly parts list →L | 1 | |
| 5 | R910803518 | COVER PLATE | 1 | |
| 6 | R910801399 | O-RINGD | 1 | |
| 7 | R910803527 | POSITIONING PISTON | 1 | |
| R902413796 | POSITIONING STUD | 1 | ||
| 10 | R910582085 | COMPRESSION SPRING | 1 | |
| 11 | R910801356 | SPRING BUSH | 1 | |
| 12 | R910801348 | SPRING BUSH | 1 | |
| 20 | R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | |
| 21 | R910583758 | SCREW PLUG | 1 | |
| 25 | R910705799 | SOCKET HEAD CAP SCREW | 12 | |
| 26 | R910100838 | SPRING LOCK WASHER | 12 | |
| R910295396 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100765 | SPRING LOCK WASHER | 4 | ||
| 29 | R910514179 | STRAIGHT PIN | 2 | |
| 31 | R902533059 | SETSCREW | 1 | |
| 32 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R909831320 | DOUBLE BREAK-OFF PLUG | 3 | |
| 36 | R910586897 | O-RINGD | 1 | |
| 37 | R909154024 | SCREW PLUGD | 1 | |
| R909153364 | SCREW PLUGD | 1 | ||
| 39 | R909151692 | SCREW PLUGD | 2 | |
| 40 | R909151979 | SCREW PLUGD | 1 | |
| 41 | R909153816 | SCREW PLUGD | 1 | |
| 42 | R909153815 | SCREW PLUGD | 1 | |
| R910118621 | SETSCREW | 3 | ||
| 46 | R910755761 | THREADED FASTENER | 1 | |
| 47 | R910755788 | THREADED FASTENER | 1 | |
