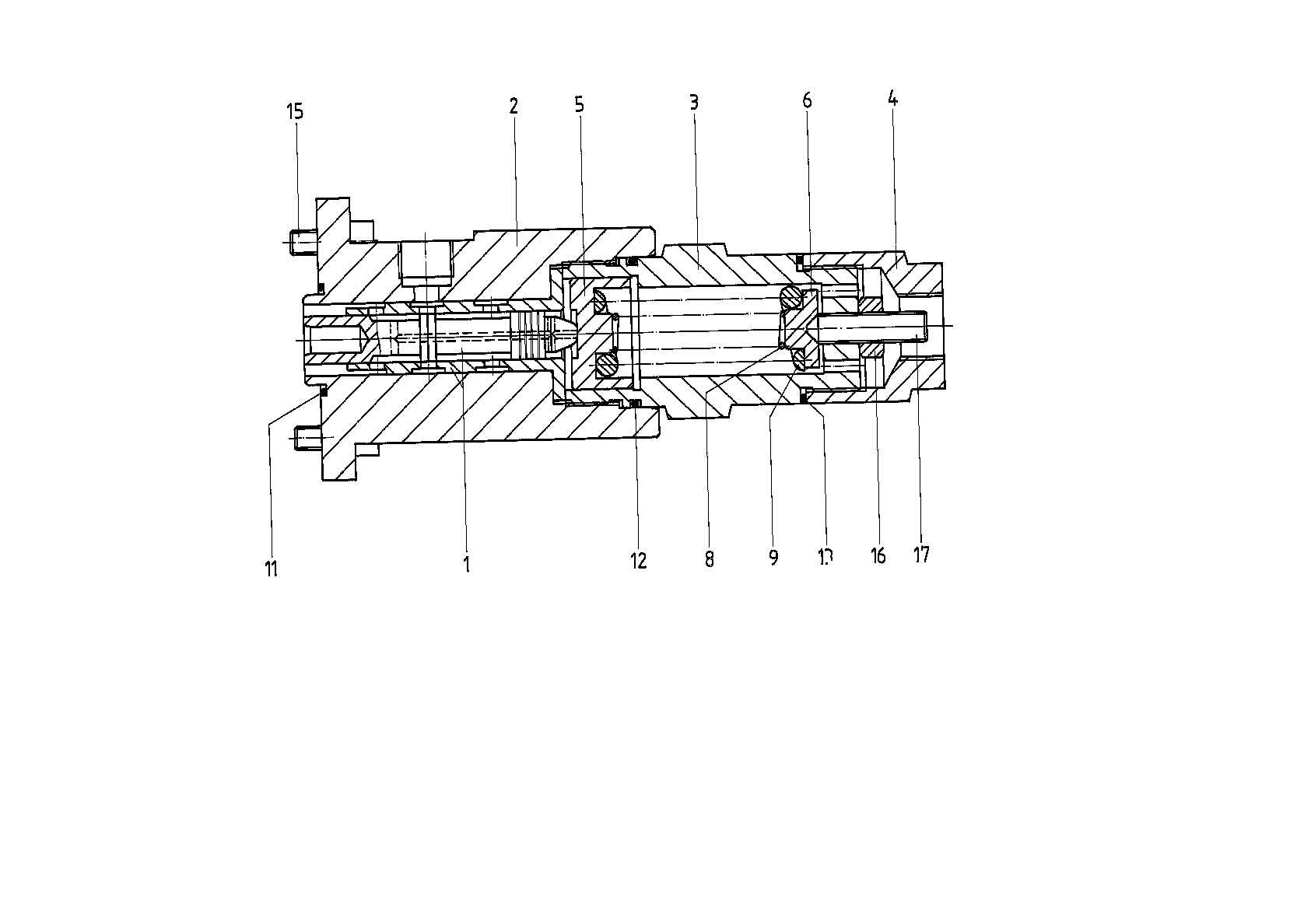

Assembly
CONTROL PARTR910803610
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910803605 | CONTROL PISTON | 1 | ||
| 2 | R910803577 | CONTROL HOUSING | 1 | |
| 3 | R910803591 | THREADED FASTENER | 1 | |
| R910803589 | REDUCTION THREADED JOINT | 1 | ||
| R910803582 | SERVO PISTON | 1 | ||
| 6 | R910803583 | SPRING DISK | 1 | |
| 8 | R910306517 | COMPRESSION SPRING | 1 | |
| 11 | R910977032 | O-RINGD | 1 | |
| R910513571 | O-RINGD | 1 | ||
| 13 | R910977060 | O-RINGD | 1 | |
| 15 | R910110167 | SOCKET HEAD CAP SCREW | 4 | |
| 16 | R910105295 | HEXAGON NUT | 1 | |
| 17 | R909086270 | SETSCREW | 1 |
