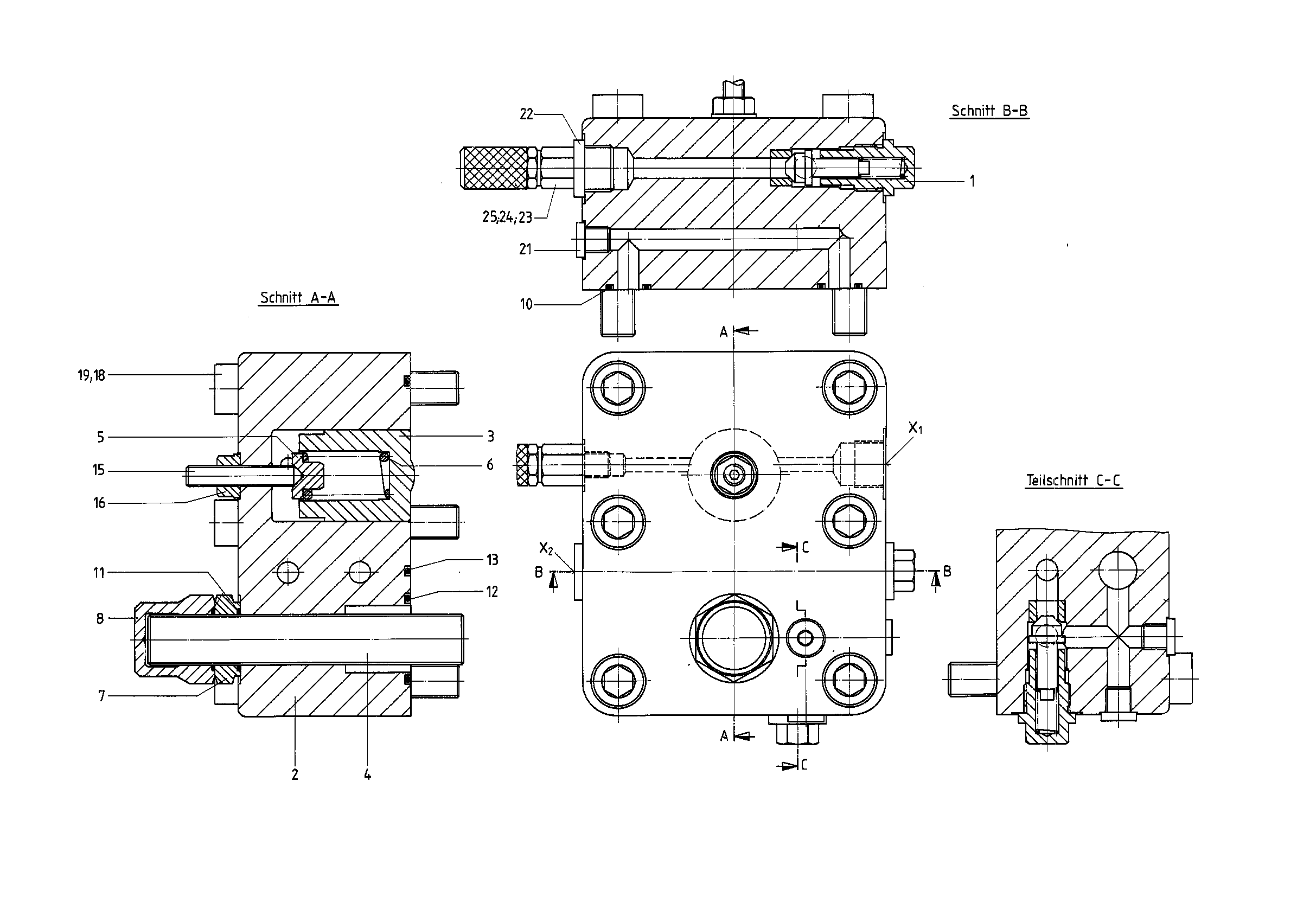

Assembly
COVERR910803614
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910805513 | NON-RETURN VALVE Assembly parts list →L | 2 | ||
| 2 | R910803575 | COVER | 1 | |
| 3 | R910590347 | CONTROL PISTON | 1 | |
| R910803584 | SETSCREW | 1 | ||
| R910590339 | SPRING DISK | 1 | ||
| R910590479 | COMPRESSION SPRING | 1 | ||
| R910902820 | NUT | 1 | ||
| 8 | R910902819 | CAP NUT | 1 | |
| R910514985 | O-RINGD | 2 | ||
| 11 | R910971035 | O-RINGD | 2 | |
| R910977050 | O-RINGD | 1 | ||
| 13 | R910672017 | O-RINGD | 1 | |
| 15 | R909154165 | SETSCREW | 1 | |
| 16 | R909152426 | SEALING NUTD | 1 | |
| R910100803 | SPRING LOCK WASHER | 6 | ||
| R910513016 | SOCKET HEAD CAP SCREW | 6 | ||
| 21 | R909151692 | SCREW PLUGD | 4 | |
| R909151694 | SCREW PLUGD | 1 | ||
| 23 | R910802016 | REDUCER SCREW | 1 | |
| 24 | R910744522 | SEAL RINGD | 1 | |
| 25 | R910726761 | TEST POINT | 1 |
