Assembly

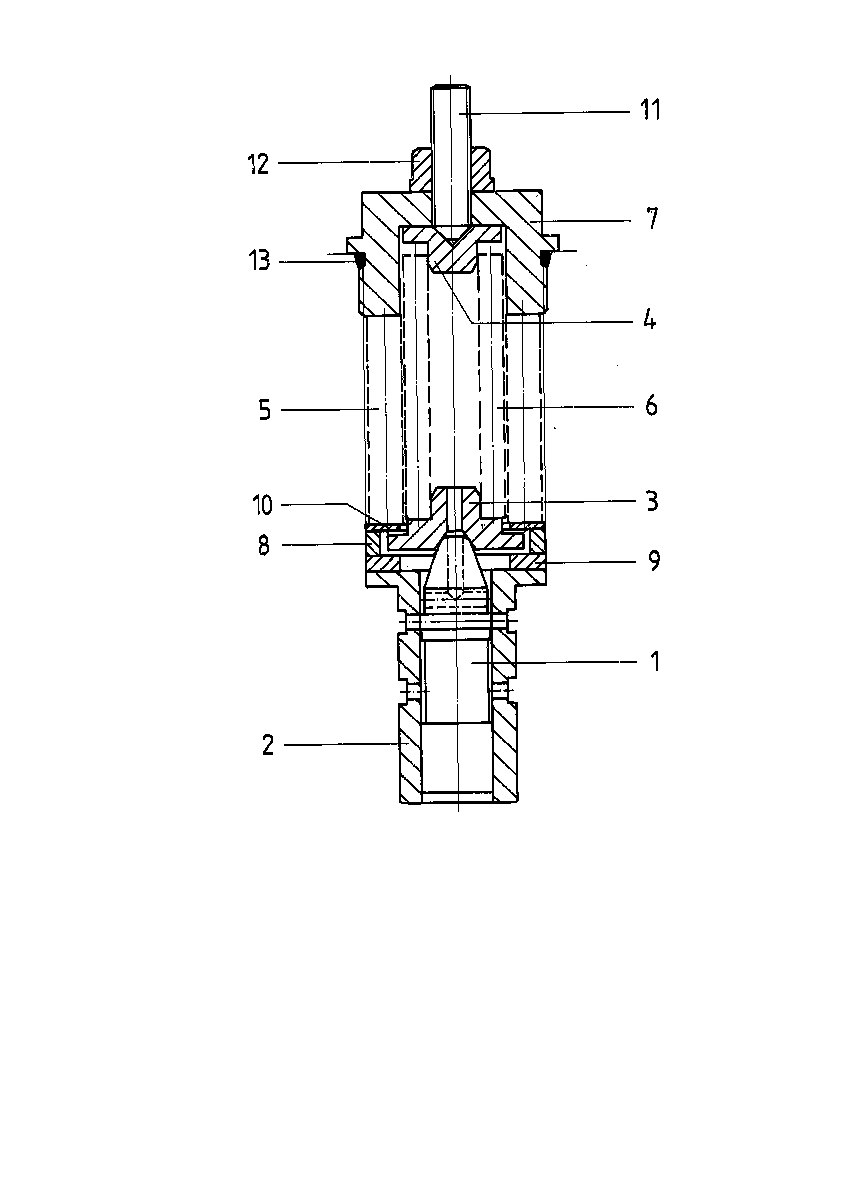

CONTROL PARTR910803773
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910803769 | CONTROL PISTON | 1 | |
| R910582603 | CONTROL BUSH | 1 | ||
| 3 | R910848514 | SPRING DISK | 1 | |
| 4 | R910848522 | SPRING DISK | 1 | |
| 5 | R910582026 | COMPRESSION SPRING | 1 | |
| 6 | R910597317 | SPRING | 1 | |
| 7 | R910588628 | SCREW PLUG | 1 | |
| 8 | R910803770 | RING | 1 | |
| 9 | R910803771 | WASHER | 1 | |
| 10 | R910803779 | WASHER | 1 | |
| 11 | R910585505 | SETSCREW | 1 | |
| 12 | R909152426 | SEALING NUTD | 1 | |
| 13 | R910586897 | O-RINGD | 1 |
