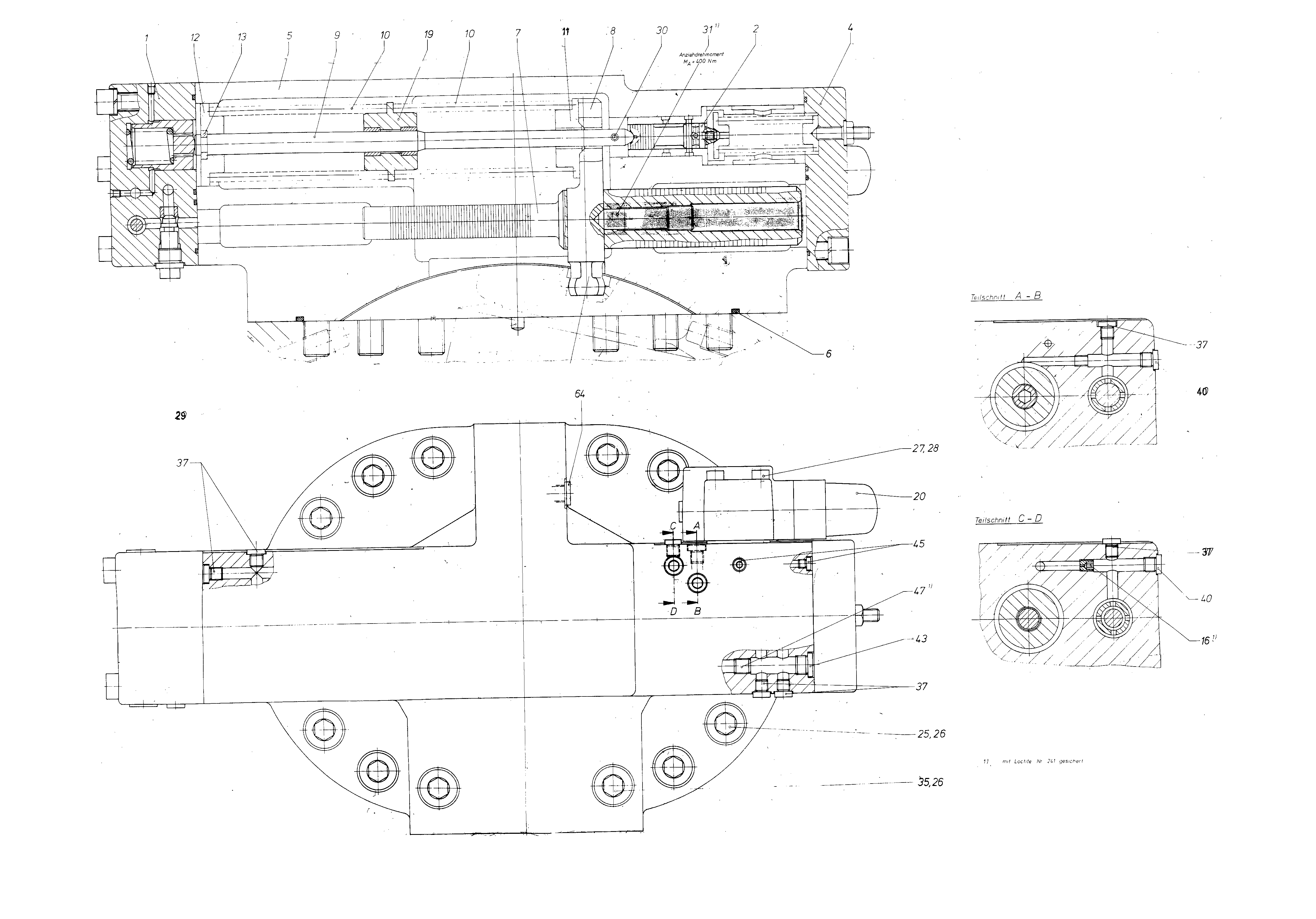

Assembly
CONTROLR910803990
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910803122 | COVER Assembly parts list →L | 1 | ||
| R910803991 | CONTROL PART Assembly parts list →L | 1 | ||
| R910800567 | COVER Assembly parts list →L | 1 | ||
| R910800610 | COVER PLATE | 1 | ||
| R910800558 | O-RINGD | 1 | ||
| R910841803 | POSITIONING PISTON | 1 | ||
| R902414363 | POSITIONING STUD | 1 | ||
| R910590304 | GUIDE ROD | 1 | ||
| R910596981 | COMPRESSION SPRING | 2 | ||
| R910590282 | SPRING DISK | 1 | ||
| R910590274 | SPRING DISK | 1 | ||
| R910590207 | RING | 1 | ||
| R910843571 | THROTTLE SCREW | 1 | ||
| R910596949 | SPRING GUIDE Assembly parts list →L | 1 | ||
| R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | ||
| R910414751 | SOCKET HEAD CAP SCREW | 10 | ||
| R910100846 | SPRING LOCK WASHER | 12 | ||
| R910295396 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100765 | SPRING LOCK WASHER | 4 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910672009 | SLOTTED SPRING PIN | 1 | ||
| R902533060 | SETSCREW | 1 | ||
| R910579947 | SOCKET HEAD CAP SCREW | 2 | ||
| R909156650 | SCREW PLUGD | 7 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R909156863 | SCREW PLUGD | 1 | ||
| R910803383 | SETSCREW | 1 | ||
| R909156864 | SCREW PLUGD | 1 |
