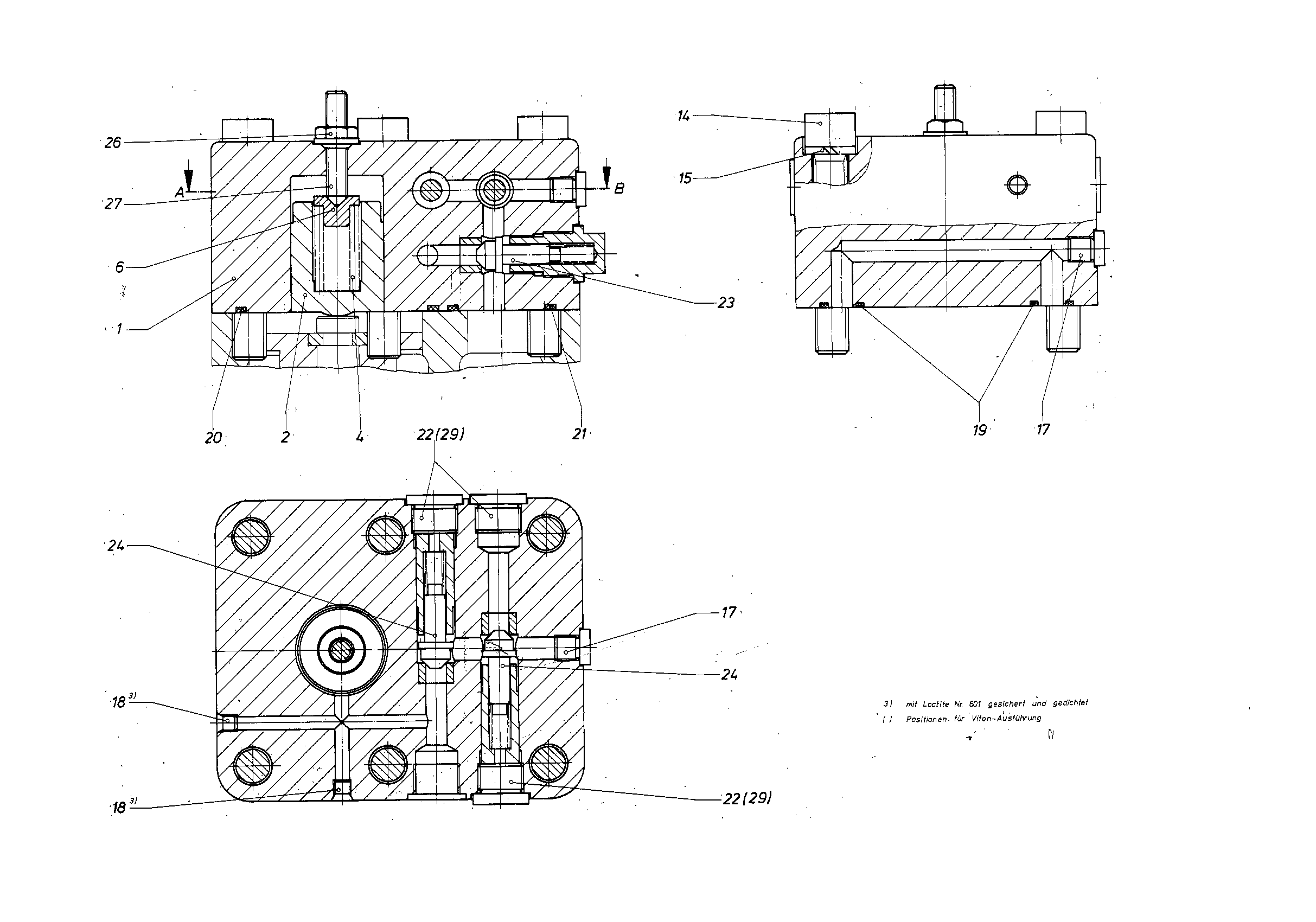

Assembly
COVERR910805548
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 42 | R910805513 | NON-RETURN VALVE Assembly parts list →L | 1 | |
| 42 | R910805521 | NON-RETURN VALVE Assembly parts list →L | 2 | |
| 50 | R910805394 | COVER | 1 | |
| 50 | R910590347 | CONTROL PISTON | 1 | |
| 50 | R910590479 | COMPRESSION SPRING | 1 | |
| 50 | R910590339 | SPRING DISK | 1 | |
| 61 | R910513016 | SOCKET HEAD CAP SCREW | 6 | |
| 61 | R910100803 | SPRING LOCK WASHER | 6 | |
| 61 | R909151692 | SCREW PLUGD | 2 | |
| 61 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 61 | R910514985 | O-RINGD | 2 | |
| 62 | R910672017 | O-RINGD | 1 | |
| 62 | R910977050 | O-RINGD | 1 | |
| 62 | R909151694 | SCREW PLUGD | 3 | |
| 62 | R909152426 | SEALING NUTD | 1 | |
| 62 | R909154165 | SETSCREW | 1 |
