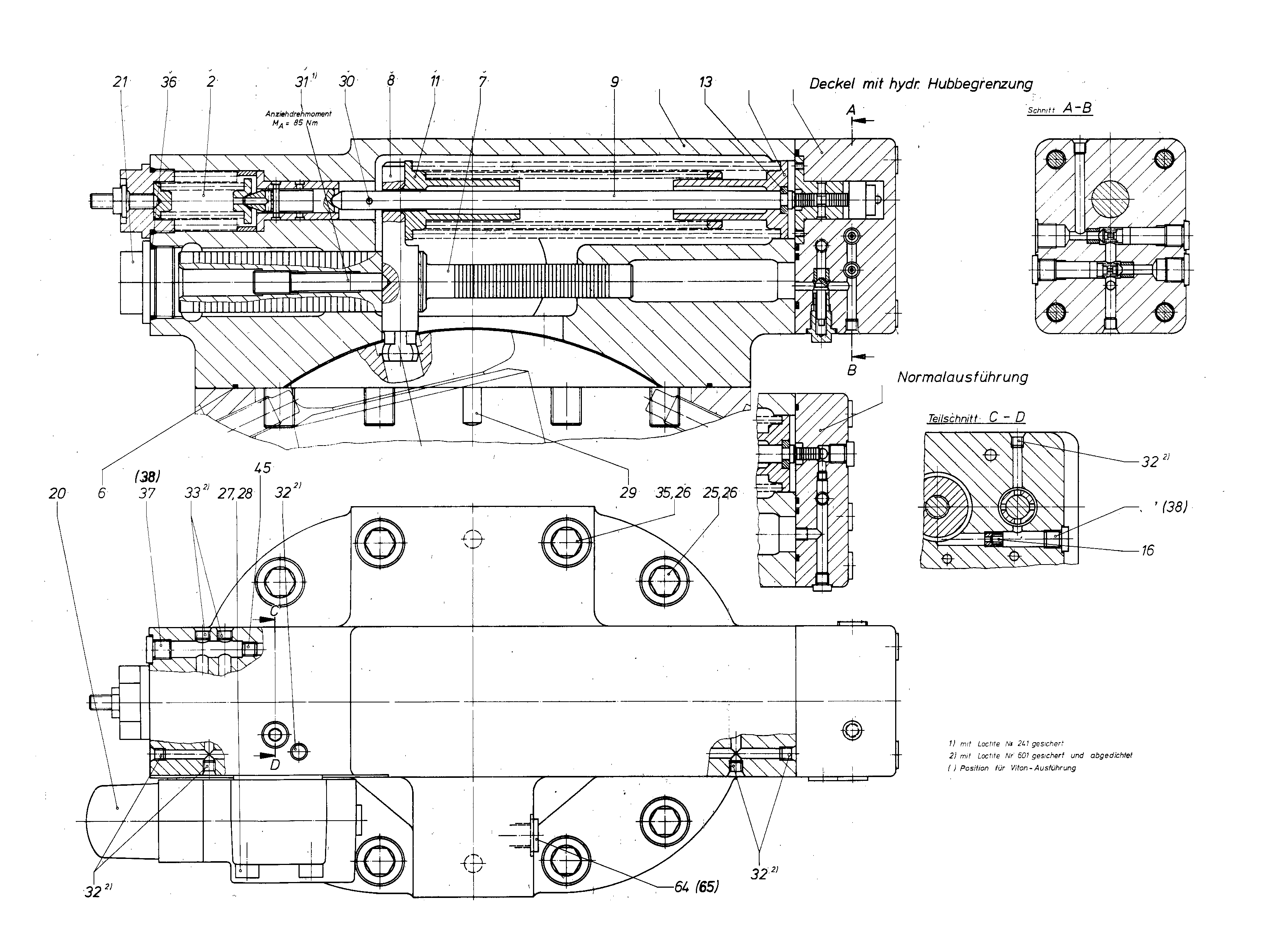

Assembly
CONTROLR910806099
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 40 | R910587893 | COVER Assembly parts list →L | 1 | |
| 40 | R910587451 | CONTROL PART Assembly parts list →L | 1 | |
| 50 | R910805955 | COVER PLATE | 1 | |
| 50 | R910945102 | O-RINGD | 1 | |
| 50 | R910842001 | POSITIONING PISTON | 1 | |
| 50 | R902413797 | POSITIONING STUD | 1 | |
| 50 | R910583979 | GUIDE ROD | 1 | |
| 51 | R910801615 | SPRING DISK | 1 | |
| 51 | R910801607 | SPRING DISK | 1 | |
| 51 | R910583855 | RING | 1 | |
| 51 | R910571288 | THROTTLE SCREW | 1 | |
| 52 | R910583758 | SCREW PLUG | 1 | |
| 53 | R910807001 | SETSCREW | 1 | |
| 62 | R901327580 | PROPORTIONAL PRESSURE RELIEF VALVE | 1 | |
| 62 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 62 | R910100838 | SPRING LOCK WASHER | 8 | |
| 62 | R910295396 | SOCKET HEAD CAP SCREW | 4 | |
| 62 | R910100765 | SPRING LOCK WASHER | 4 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R910977277 | SLOTTED SPRING PIN | 1 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 3 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 63 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R910586897 | O-RINGD | 1 | |
| 63 | R909151692 | SCREW PLUGD | 2 | |
| 64 | R910515361 | SETSCREW | 1 | |
| 66 | R909153816 | SCREW PLUGD | 1 |
