Assembly

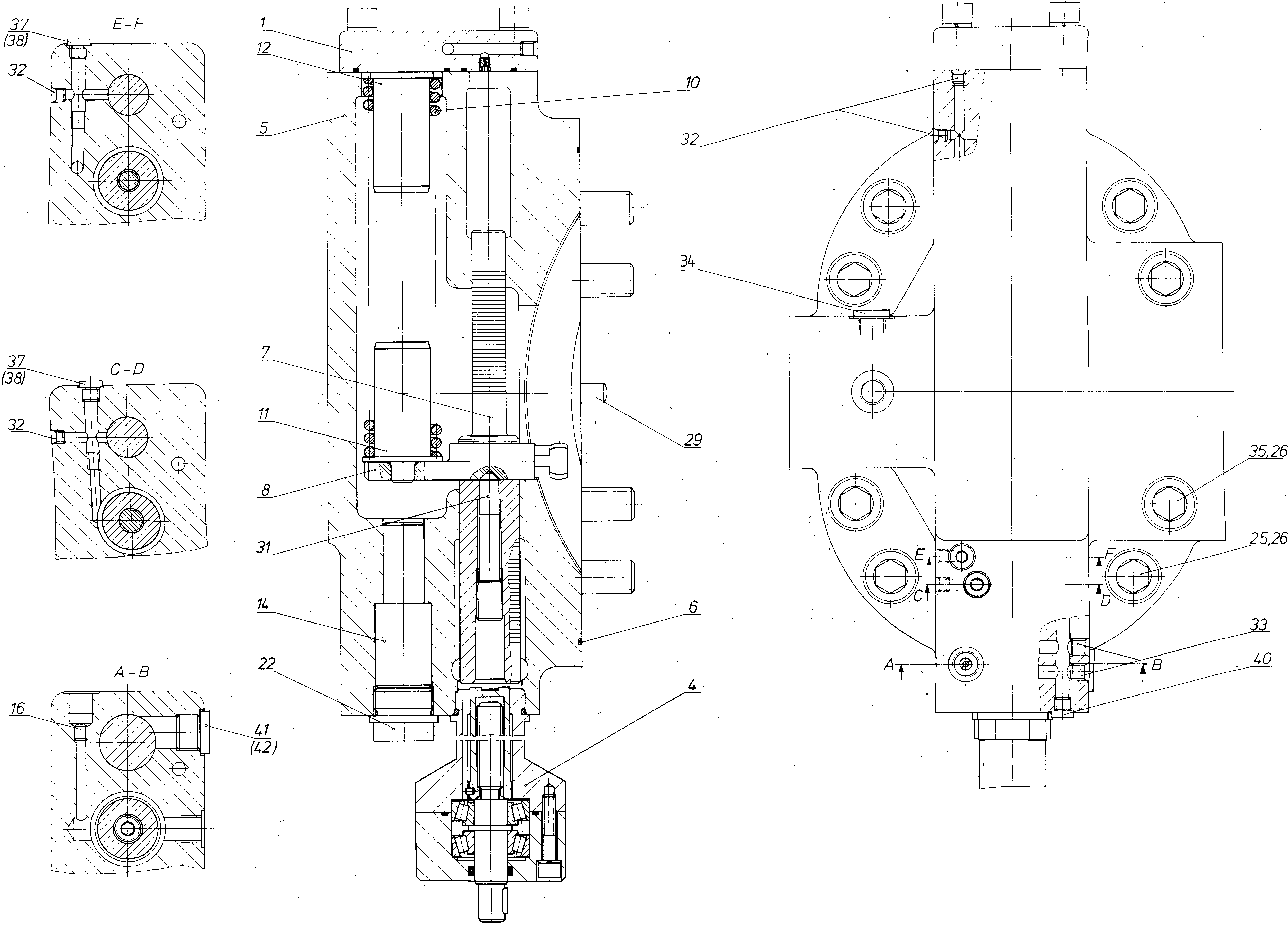

ADJUSTING PIECER910809357
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910595349 | COVER Assembly parts list →L | 1 | ||
| R910599611 | STROKE LIMITER Assembly parts list →L | 1 | ||
| 50 | R910804495 | COVER PLATE | 1 | |
| 50 | R910945129 | O-RINGD | 1 | |
| 50 | R910841846 | POSITIONING PISTON | 1 | |
| 50 | R902413798 | POSITIONING STUD | 1 | |
| 51 | R910591548 | COMPRESSION SPRING | 1 | |
| 51 | R910801798 | SPRING BUSH | 1 | |
| 51 | R910801828 | SPRING BUSH | 1 | |
| 51 | R910595381 | PLUG | 1 | |
| 51 | R910571261 | THROTTLE SCREW | 1 | |
| 52 | R910595403 | SCREW PLUG | 1 | |
| 53 | R910807001 | SETSCREW | 1 | |
| 62 | R910110043 | SOCKET HEAD CAP SCREW | 6 | |
| 62 | R910100838 | SPRING LOCK WASHER | 8 | |
| 62 | R910514179 | STRAIGHT PIN | 2 | |
| 63 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| 63 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 63 | R909153816 | SCREW PLUGD | 1 | |
| 63 | R910120901 | SOCKET HEAD CAP SCREW | 2 | |
| 63 | R909153364 | SCREW PLUGD | 2 | |
| 64 | R909151692 | SCREW PLUGD | 1 | |
| 64 | R909151694 | SCREW PLUGD | 1 |
