Assembly

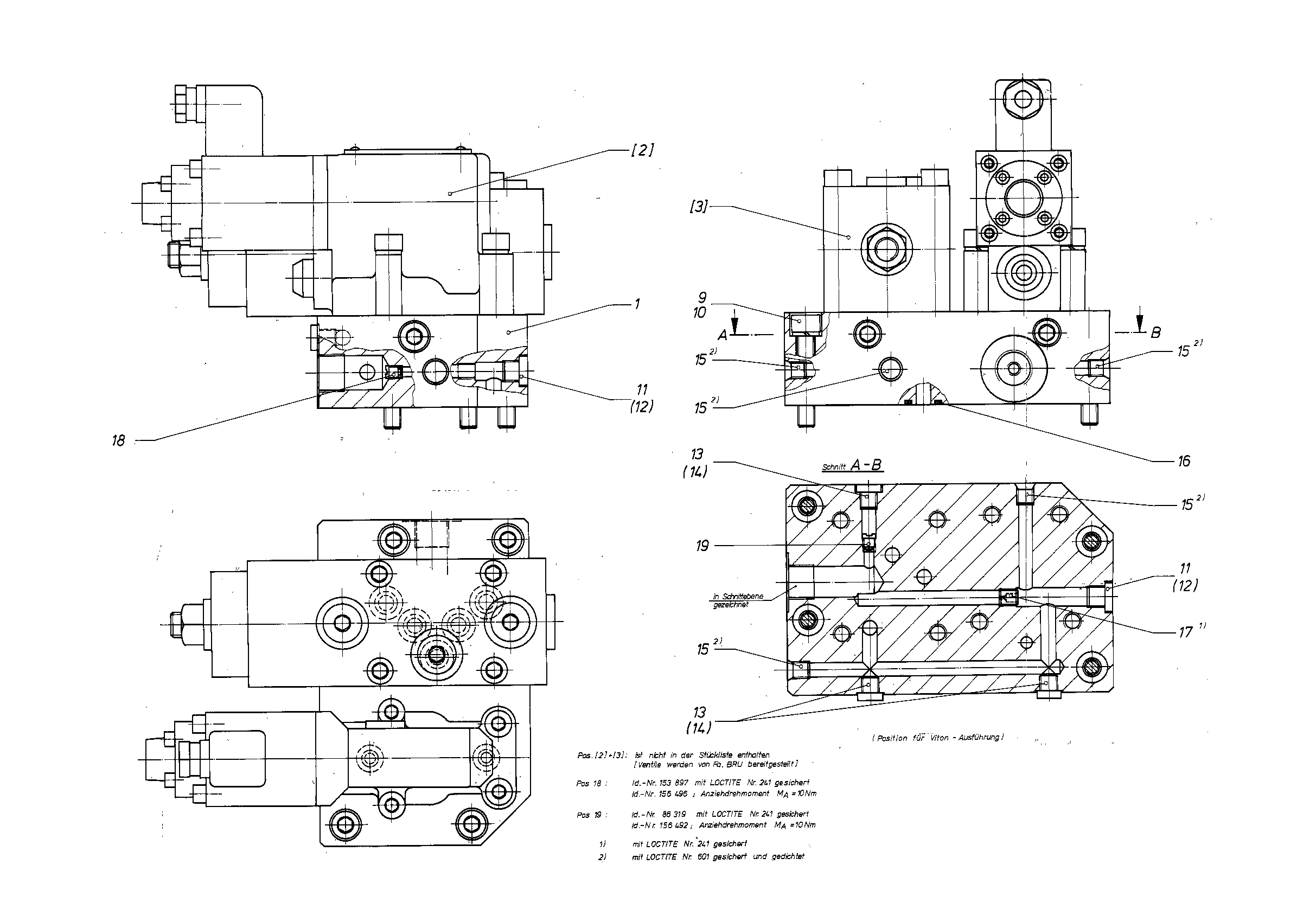

CONNECTING BLOCKR910836931
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 50 | R910835714 | CONNECTION PLATE | 1 | |
| 51 | R910834491 | THROTTLE SCREW | 1 | |
| 60 | R910109517 | SOCKET HEAD CAP SCREW | 4 | |
| 61 | R910100757 | SPRING LOCK WASHER | 4 | |
| 61 | R909153364 | SCREW PLUGD | 2 | |
| 61 | R909154024 | SCREW PLUGD | 3 | |
| 61 | R909831319 | DOUBLE BREAK-OFF PLUG | 3 | |
| 61 | R910523003 | O-RINGD | 1 | |
| 61 | R910836303 | NOZZLE | 1 | |
| 61 | R910836761 | NOZZLE | 1 |
