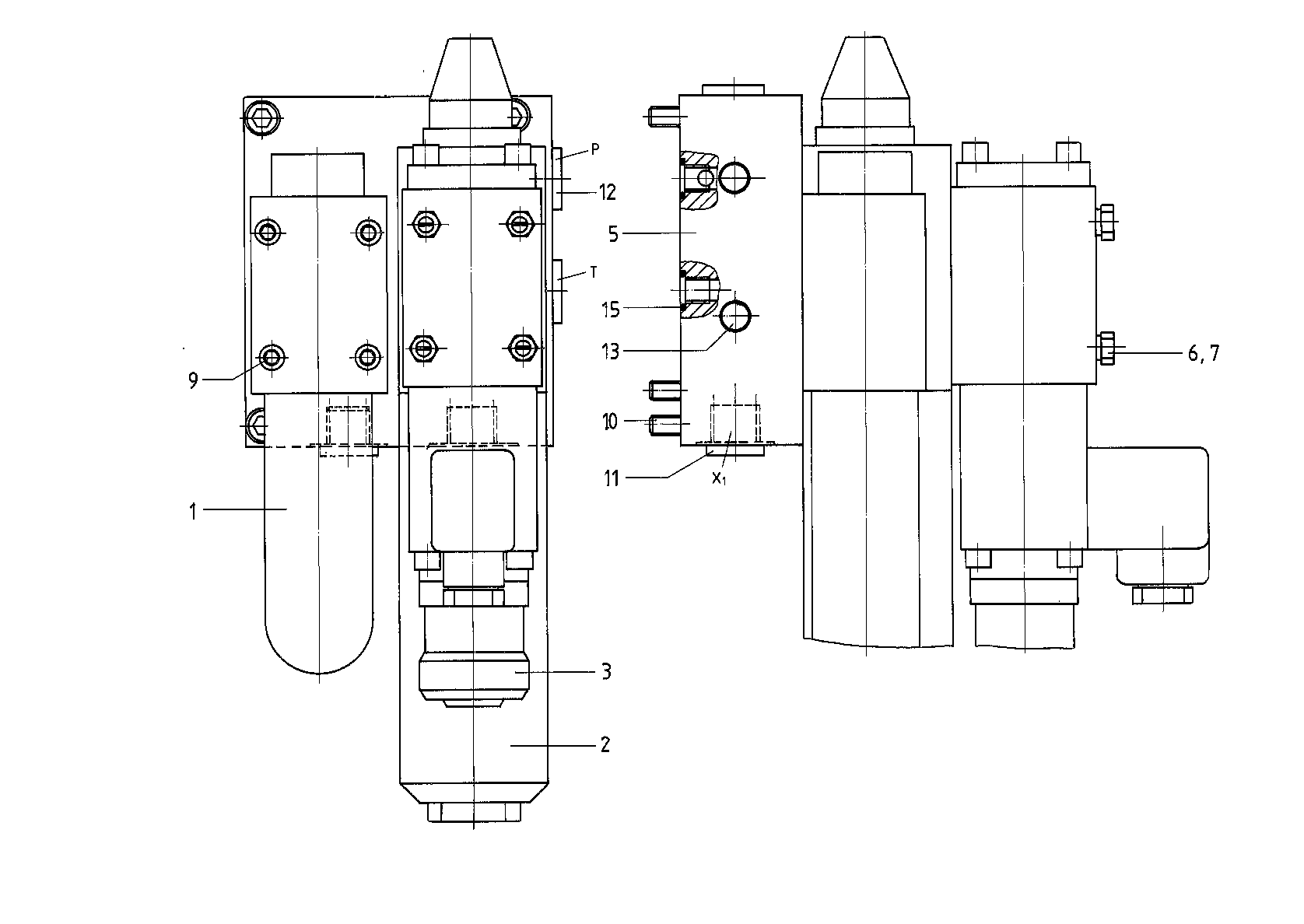

Assembly
VALVE BLOCKR910844071
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910669296 | DUMMY | 1 | |
| 2 | R910844179 | FILTER Assembly parts list →L | 1 | |
| 3 | R902405794 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | |
| 5 | R910844152 | INTERMEDIATE PLATE | 1 | |
| 6 | R910624691 | HEXAGON NUT | 4 | |
| 7 | R910930534 | TIE-ROD | 4 | |
| 9 | R910120162 | SOCKET HEAD CAP SCREW | 4 | |
| 10 | R910110159 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R909151979 | SCREW PLUGD | 1 | |
| 12 | R909153816 | SCREW PLUGD | 2 | |
| 13 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| 15 | R910513415 | O-RINGD | 2 |
