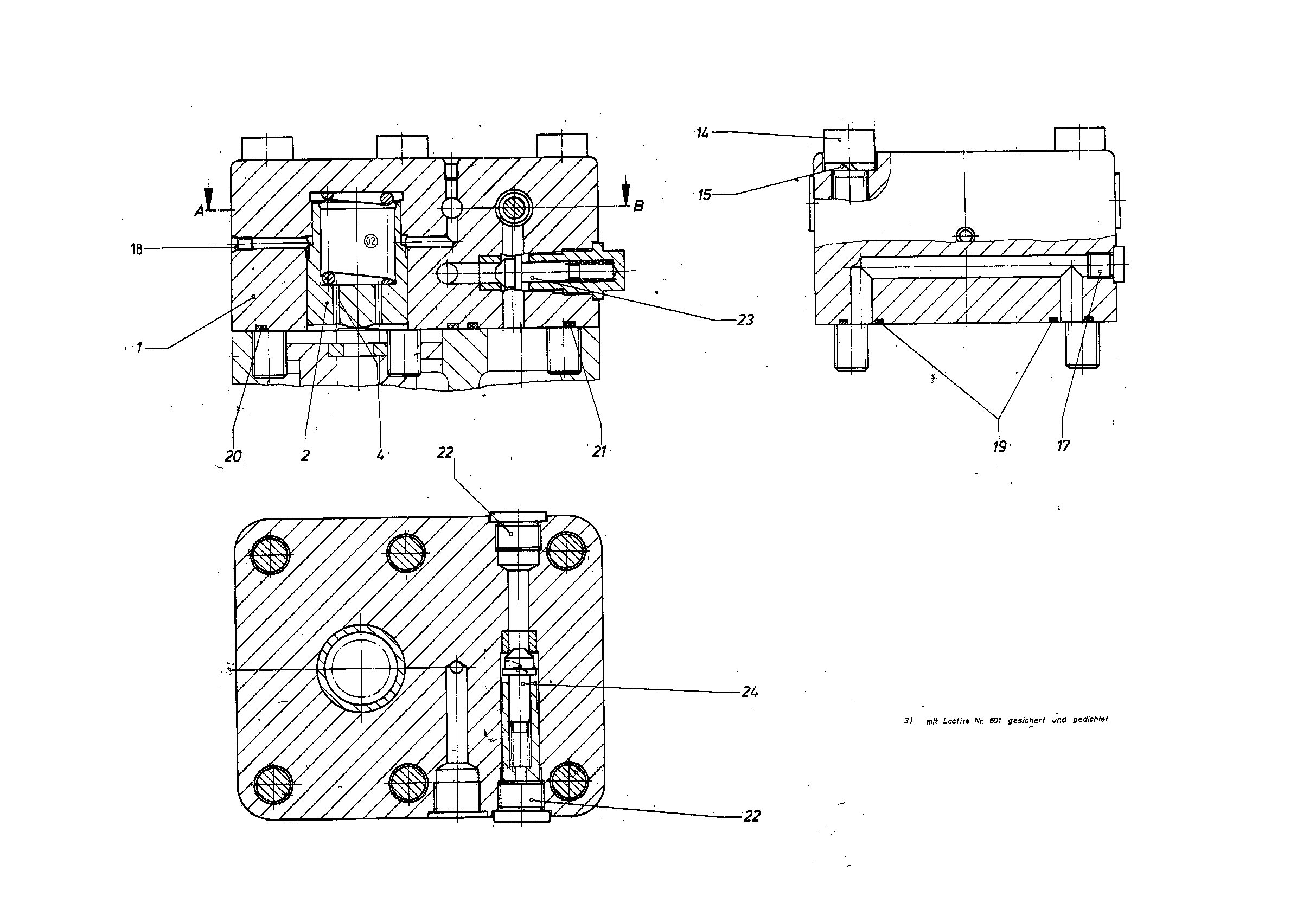

Assembly
COVERR910845868
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910847135 | COVER | 1 | ||
| R910847143 | CONTROL PISTON | 1 | ||
| R910581224 | COMPRESSION SPRING | 1 | ||
| R910513016 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100803 | SPRING LOCK WASHER | 6 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910514985 | O-RINGD | 2 | ||
| R910672017 | O-RINGD | 1 | ||
| R910977050 | O-RINGD | 1 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R910805513 | NON-RETURN VALVE Assembly parts list →L | 1 | ||
| R910805521 | NON-RETURN VALVE Assembly parts list →L | 1 |
