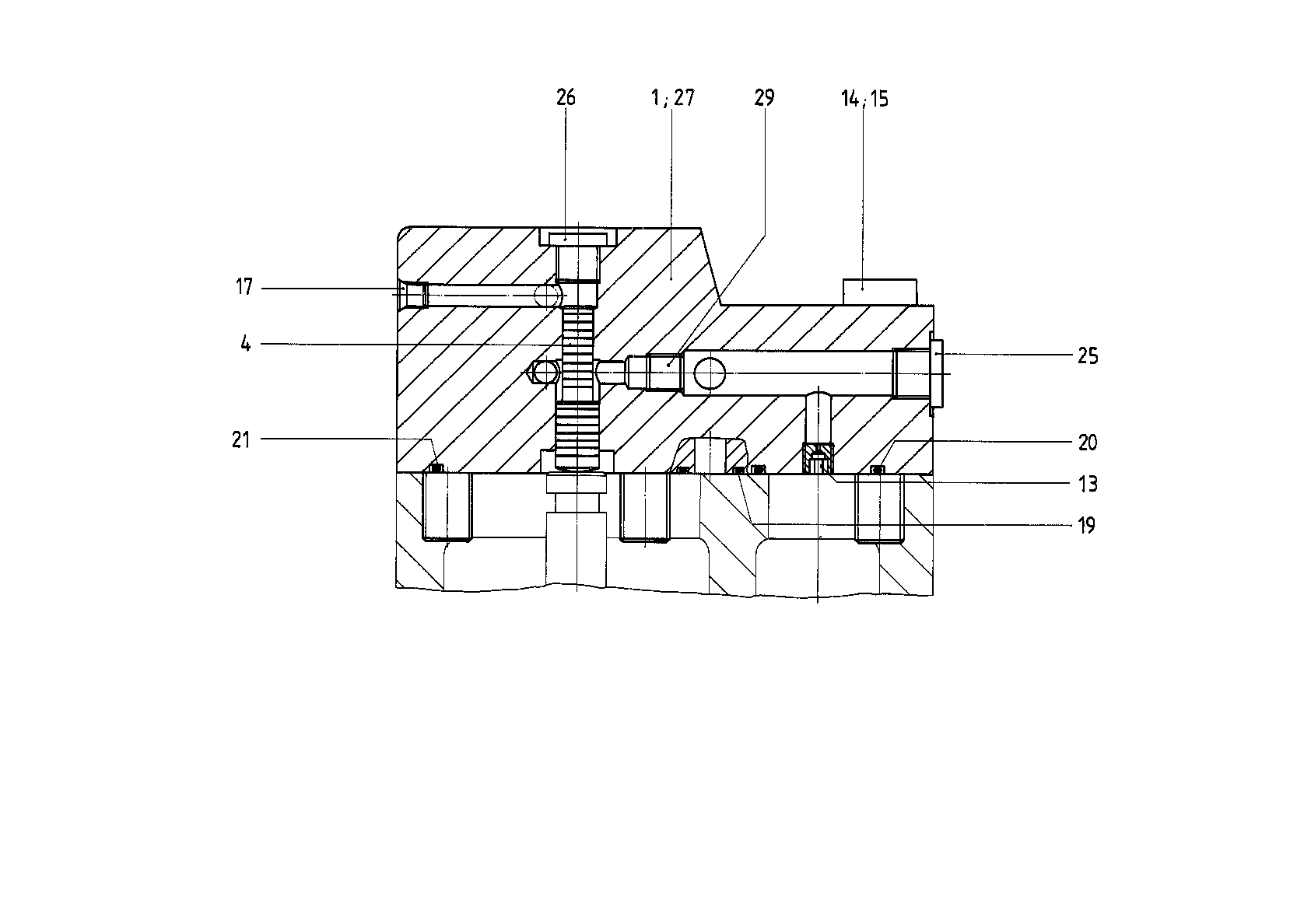

Assembly
COVERR910846147
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910845981 | COVER | 1 | |
| R910845973 | PISTON | 1 | ||
| R910852171 | THROTTLE SCREW | 1 | ||
| 14 | R910126535 | SOCKET HEAD CAP SCREW | 6 | |
| 15 | R910100803 | SPRING LOCK WASHER | 6 | |
| 17 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 19 | R910514985 | O-RINGD | 2 | |
| R910977050 | O-RINGD | 1 | ||
| R910672017 | O-RINGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 27 | R909151692 | SCREW PLUGD | 1 | |
| R910274062 | SETSCREW | 1 |
