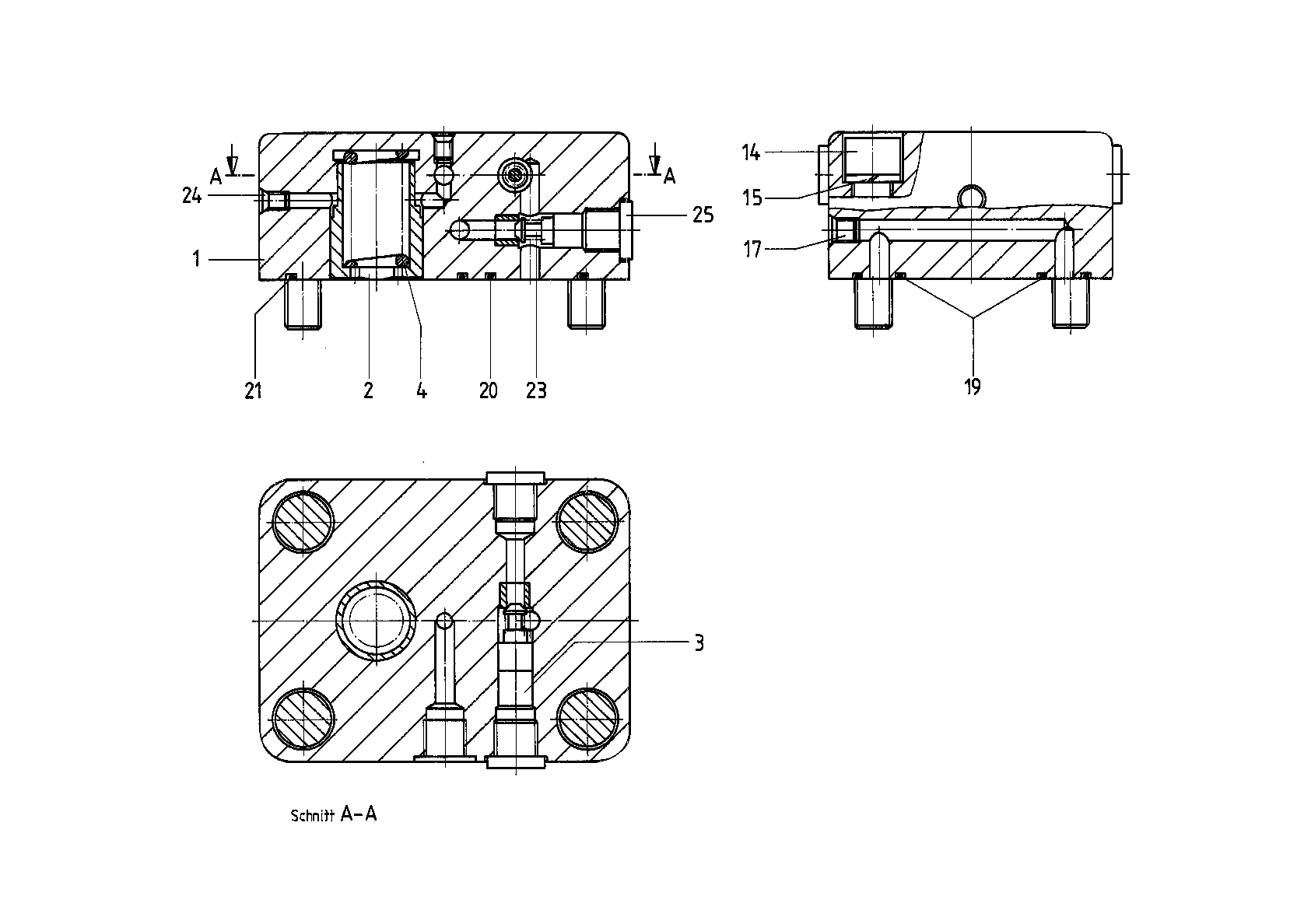

Assembly
COVERR910848204
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910848247 | COVER | 1 | ||
| R910848239 | CONTROL PISTON | 1 | ||
| R910805688 | SPACER | 1 | ||
| R910771139 | COMPRESSION SPRING | 1 | ||
| R910120359 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100773 | SPRING LOCK WASHER | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910977037 | O-RINGD | 2 | ||
| R910977035 | O-RINGD | 1 | ||
| R910977062 | O-RINGD | 1 | ||
| R910579718 | MOUNTING KIT | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909151979 | SCREW PLUGD | 3 |
