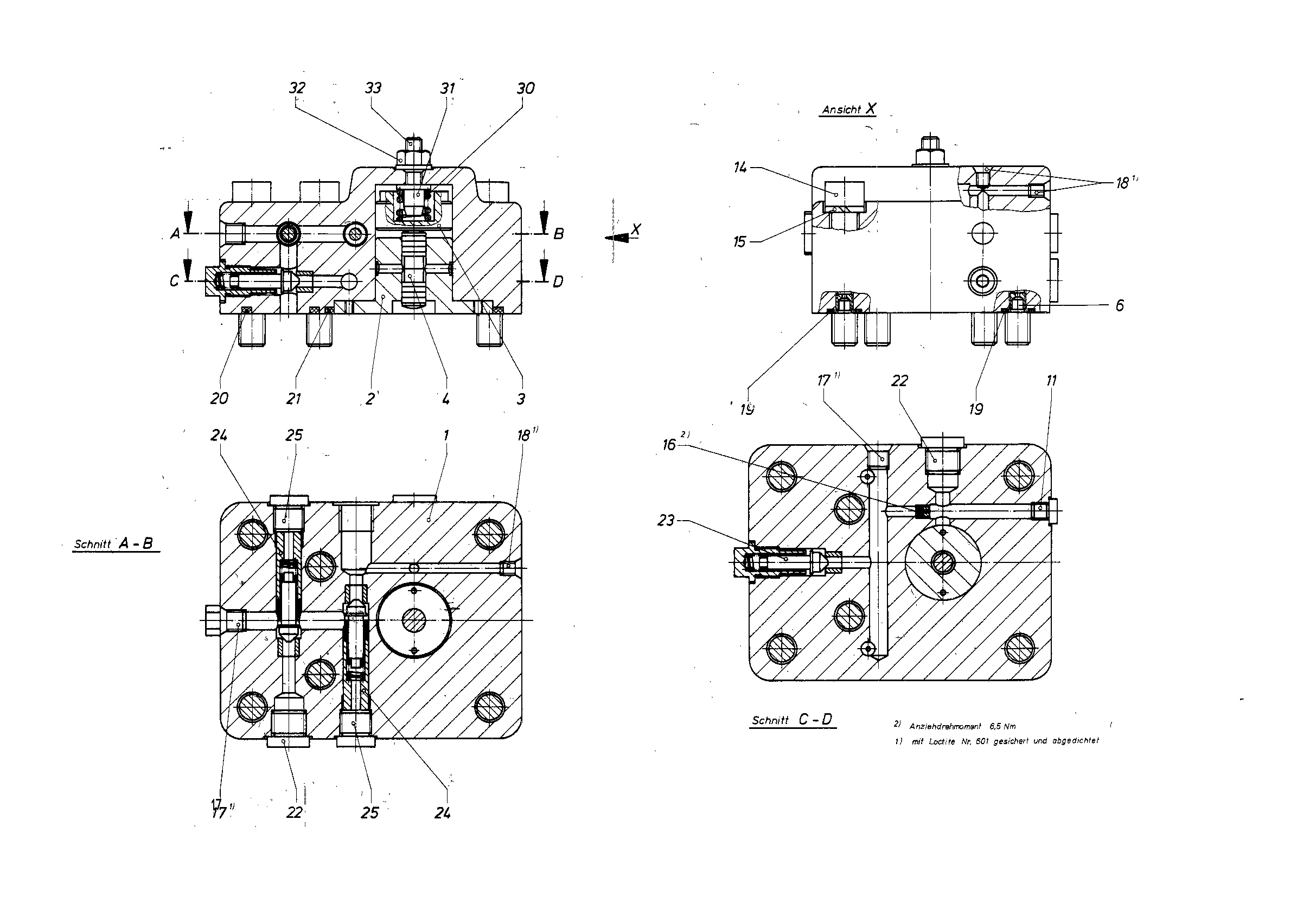

Assembly
COVERR910849057
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910849081 | COVER | 1 | ||
| R910582514 | CONTROL BUSH | 1 | ||
| 3 | R910800678 | CONTROL PISTON | 1 | |
| 4 | R910582964 | PISTON | 2 | |
| 6 | R910853615 | THROTTLE SCREW | 2 | |
| 11 | R909154024 | SCREW PLUGD | 1 | |
| 14 | R910109843 | SOCKET HEAD CAP SCREW | 6 | |
| 15 | R910100773 | SPRING LOCK WASHER | 6 | |
| R910836761 | NOZZLE | 1 | ||
| 17 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910977037 | O-RINGD | 2 | ||
| R910584975 | O-RINGD | 1 | ||
| 21 | R910584983 | O-RINGD | 1 | |
| R909153816 | SCREW PLUGD | 2 | ||
| R910809012 | NON-RETURN VALVE Assembly parts list →L | 1 | ||
| 24 | R910809055 | NON-RETURN VALVE Assembly parts list →L | 2 | |
| R909151979 | SCREW PLUGD | 1 | ||
| R910512664 | COMPRESSION SPRING | 1 | ||
| 31 | R910837792 | SPRING DISK | 1 | |
| R910516082 | DUMMYD | 1 | ||
| R910800767 | SETSCREW | 1 |
