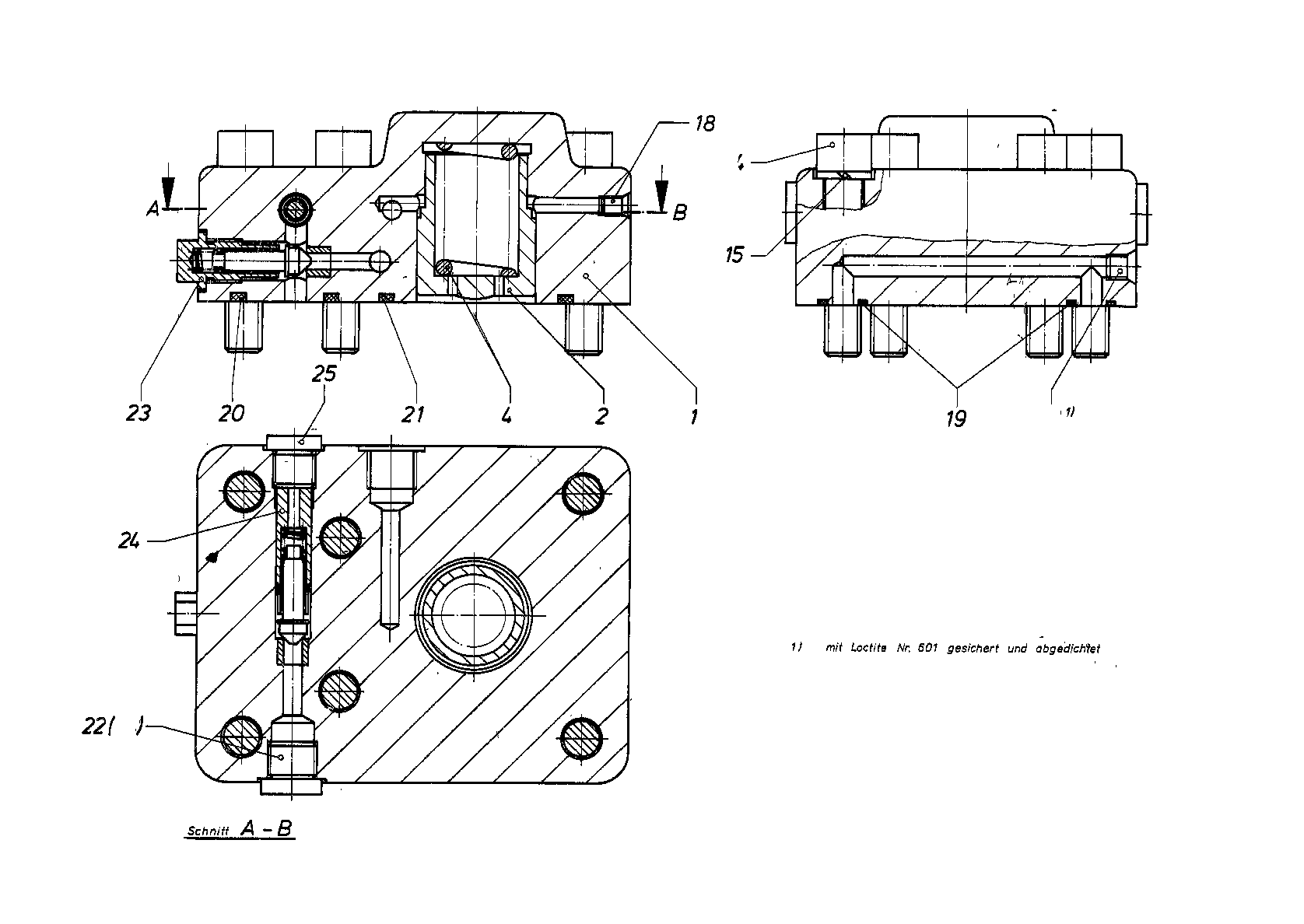

Assembly
COVERR910849286
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910849308 | COVER | 1 | ||
| R910849316 | CONTROL PISTON | 1 | ||
| R910916595 | COMPRESSION SPRING | 1 | ||
| 14 | R910109835 | SOCKET HEAD CAP SCREW | 6 | |
| R910100773 | SPRING LOCK WASHER | 6 | ||
| 17 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910977037 | O-RINGD | 2 | ||
| R910584975 | O-RINGD | 1 | ||
| R910584983 | O-RINGD | 1 | ||
| R910809012 | NON-RETURN VALVE Assembly parts list →L | 1 | ||
| R910809055 | NON-RETURN VALVE Assembly parts list →L | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 26 | R909153816 | SCREW PLUGD | 1 |
