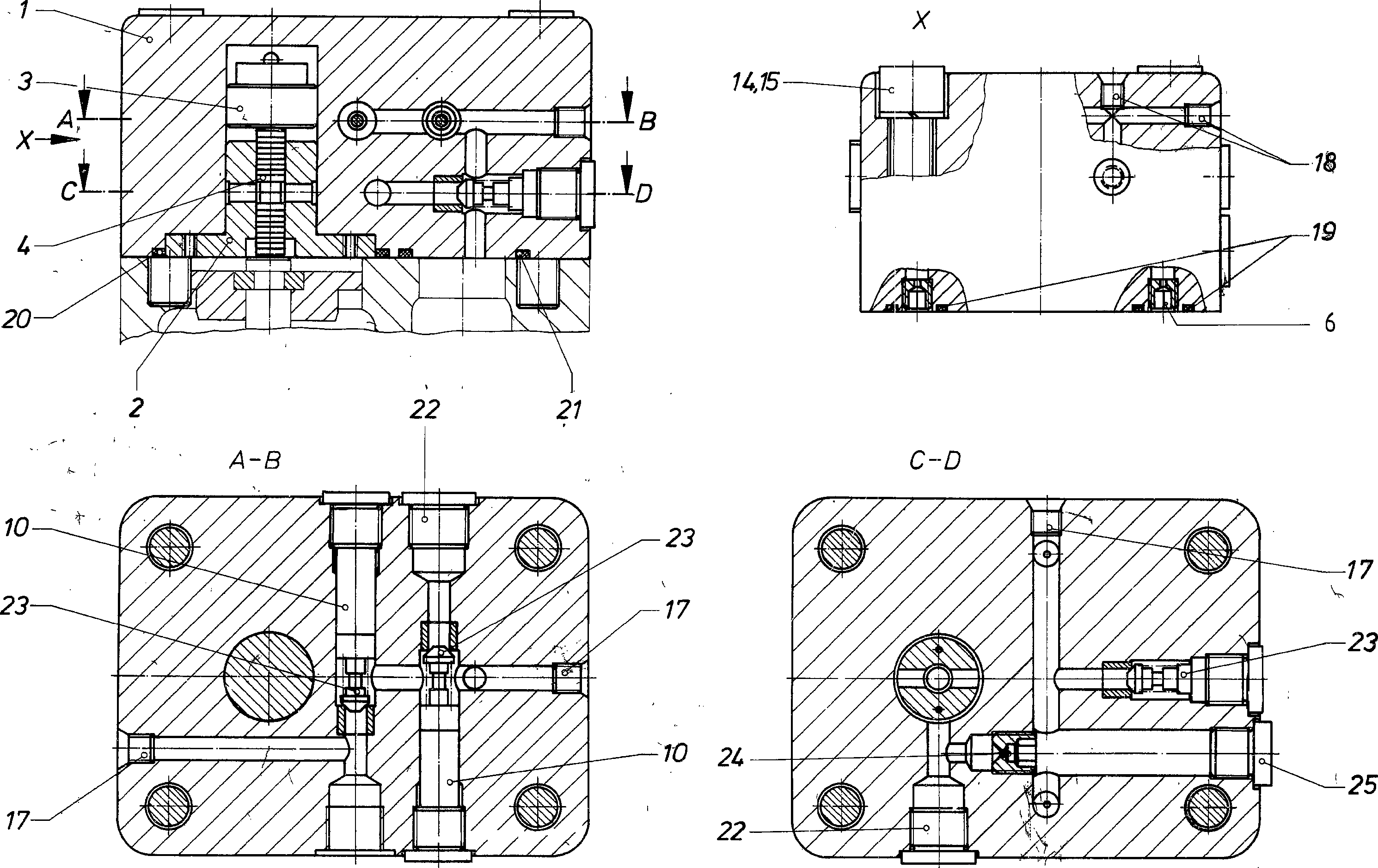

Assembly
COVERR910849782
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910855812 | COVER | 1 | ||
| R910592471 | CONTROL SLEEVE | 1 | ||
| R910592501 | CONTROL PISTON | 1 | ||
| R910592498 | PISTON | 2 | ||
| R910578827 | THROTTLE SCREW | 2 | ||
| R910805688 | SPACER | 2 | ||
| R910109851 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100773 | SPRING LOCK WASHER | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910977037 | O-RINGD | 2 | ||
| R910977062 | O-RINGD | 1 | ||
| R910977035 | O-RINGD | 1 | ||
| R909151979 | SCREW PLUGD | 5 | ||
| R910579718 | MOUNTING KIT | 3 | ||
| R910836761 | NOZZLE | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
