Assembly

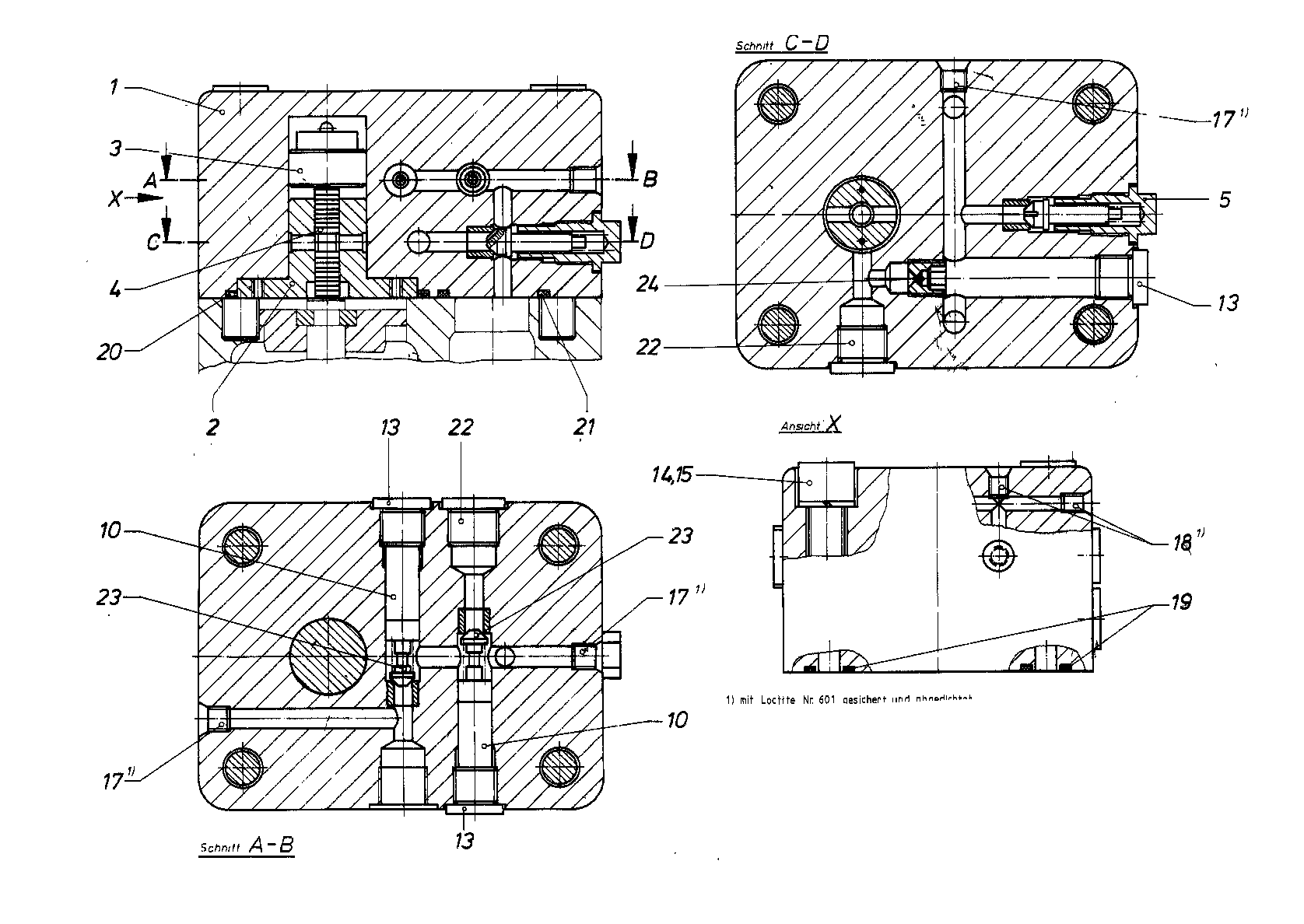

COVERR910849979
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910579807 | COVER | 1 | ||
| R910584568 | CONTROL BUSH | 1 | ||
| R910583782 | CONTROL PISTON | 1 | ||
| R910583804 | PISTON | 2 | ||
| R910849839 | NON-RETURN VALVE Assembly parts list →L | 1 | ||
| R910805947 | SPACER | 2 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R910109851 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100773 | SPRING LOCK WASHER | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910977037 | O-RINGD | 2 | ||
| R910342157 | O-RINGD | 1 | ||
| R910513555 | O-RINGD | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R910579718 | MOUNTING KIT | 2 | ||
| R910579459 | THROTTLE SCREW | 1 |
