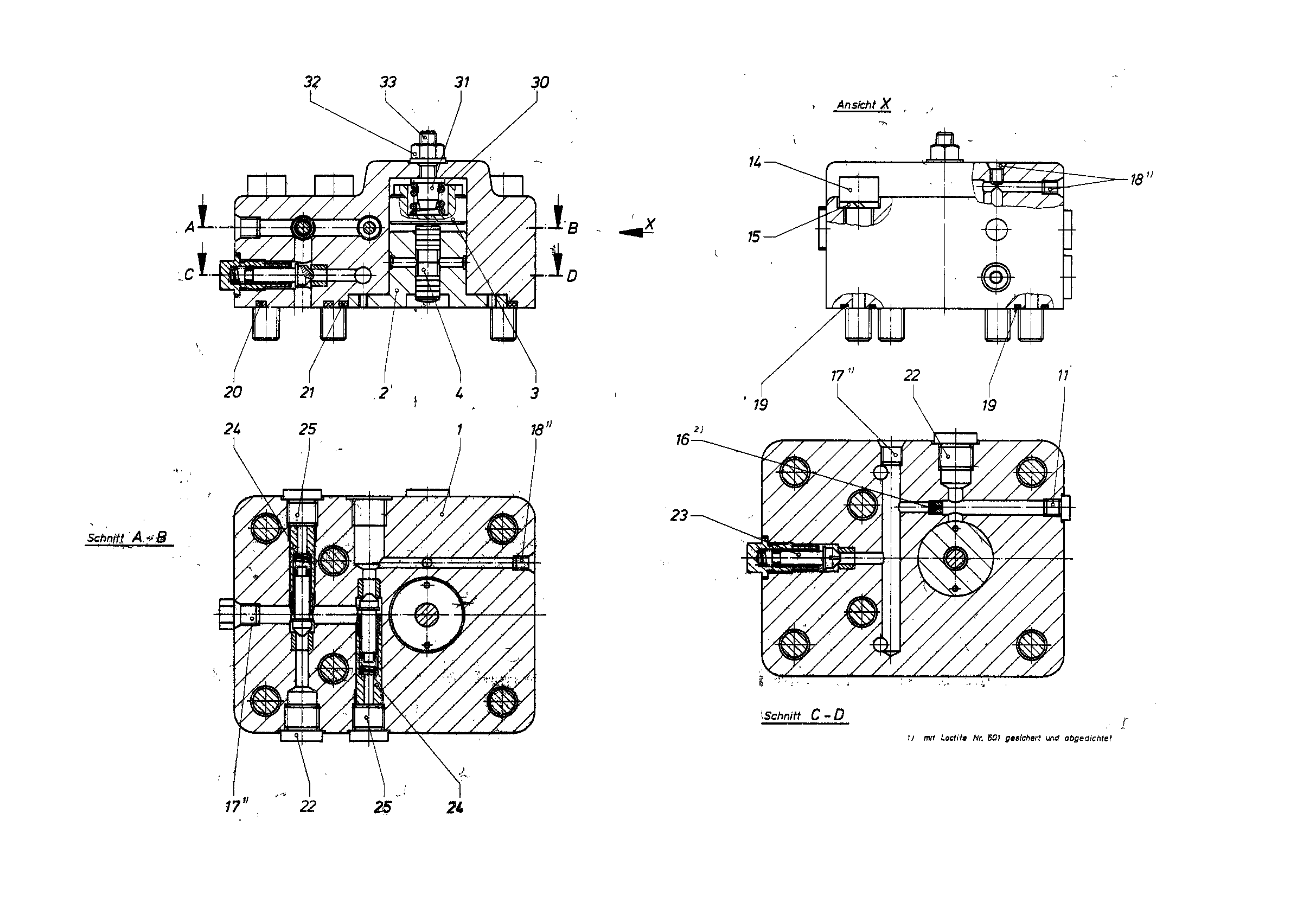

Assembly
COVERR910850012
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910800686 | COVER | 1 | ||
| R910582514 | CONTROL BUSH | 1 | ||
| R910800678 | CONTROL PISTON | 1 | ||
| R910582964 | PISTON | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R910109843 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100773 | SPRING LOCK WASHER | 6 | ||
| R910836761 | NOZZLE | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910977037 | O-RINGD | 2 | ||
| R910584975 | O-RINGD | 1 | ||
| R910584983 | O-RINGD | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R910849839 | NON-RETURN VALVE Assembly parts list →L | 1 | ||
| R910809055 | NON-RETURN VALVE Assembly parts list →L | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R910512664 | COMPRESSION SPRING | 1 | ||
| R910837792 | SPRING DISK | 1 | ||
| R910516082 | DUMMYD | 1 | ||
| R910800767 | SETSCREW | 1 |
