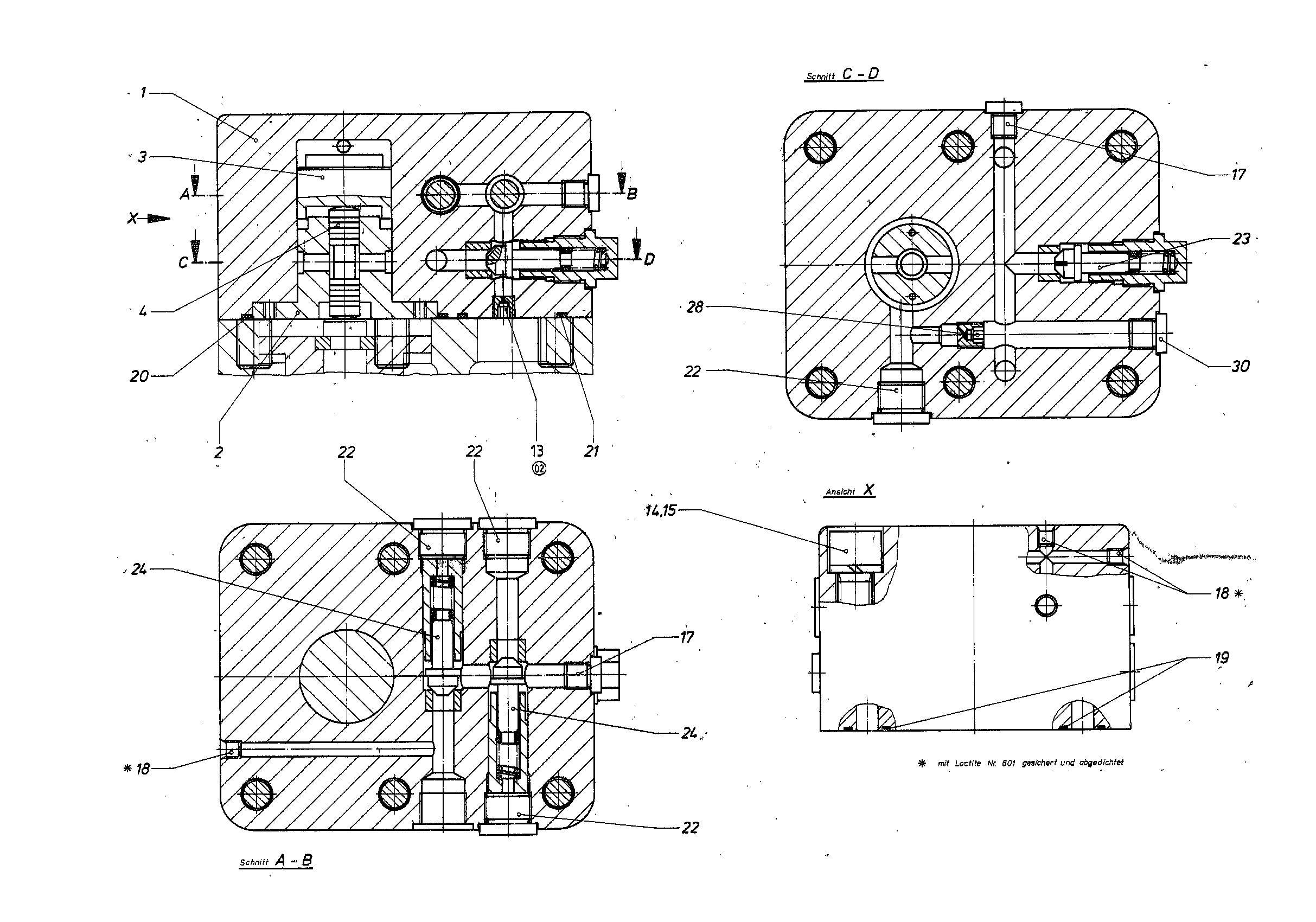

Assembly
COVERR910850055
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910579742 | COVER | 1 | ||
| R910593648 | CONTROL BUSH | 1 | ||
| R910593672 | CONTROL PISTON | 1 | ||
| R910593664 | PISTON | 2 | ||
| R910852171 | THROTTLE SCREW | 1 | ||
| R910513016 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100803 | SPRING LOCK WASHER | 6 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910514985 | O-RINGD | 2 | ||
| R910245879 | O-RINGD | 1 | ||
| R910977050 | O-RINGD | 1 | ||
| R909151694 | SCREW PLUGD | 4 | ||
| R910850039 | NON-RETURN VALVE Assembly parts list →L | 1 | ||
| R910805521 | NON-RETURN VALVE Assembly parts list →L | 2 | ||
| R910579459 | THROTTLE SCREW | 1 | ||
| R909151979 | SCREW PLUGD | 1 |
