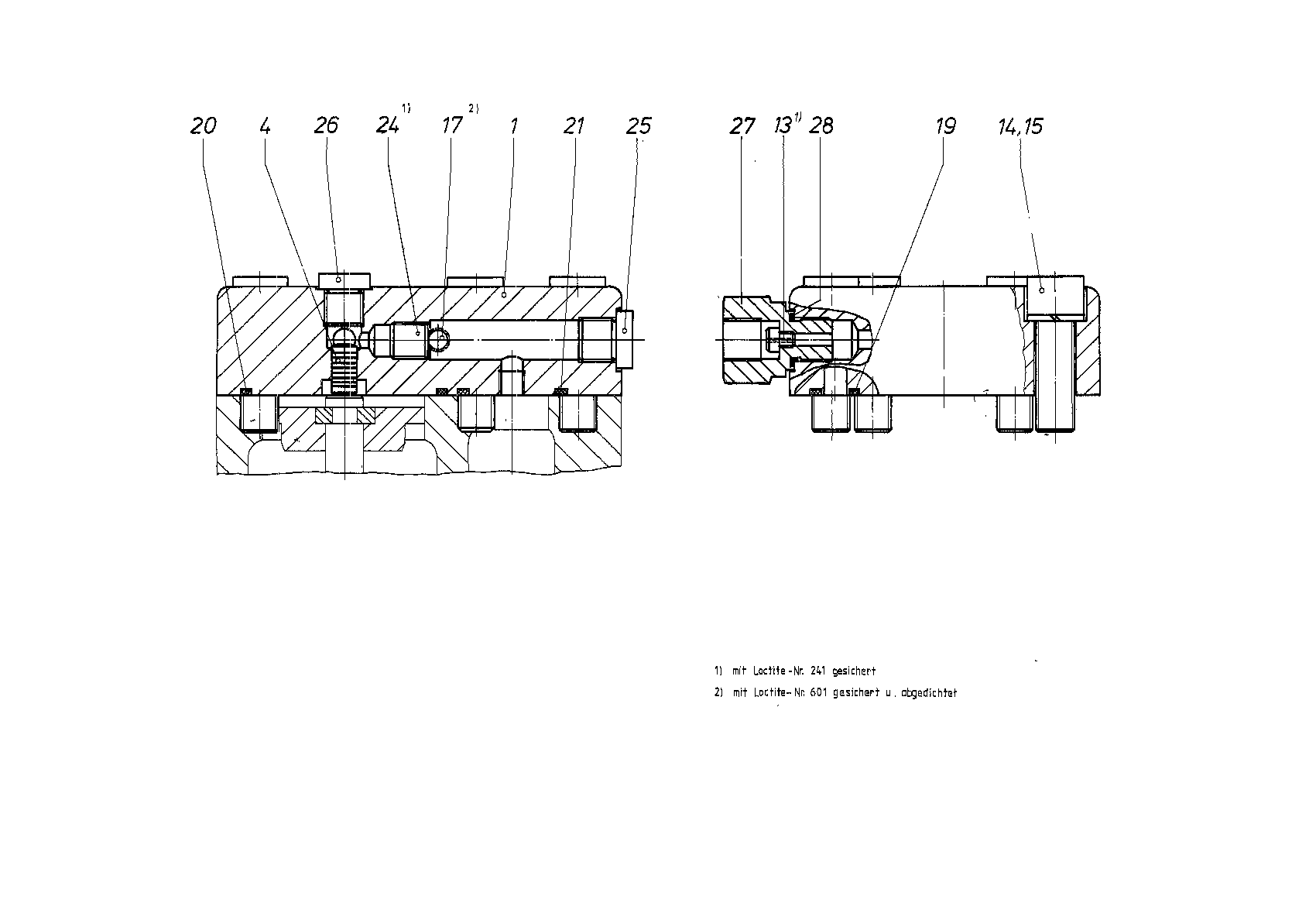

Assembly
COVERR910851396
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910579688 | COVER | 1 | |
| R910591491 | PISTON | 1 | ||
| 13 | R910100579 | NOZZLE | 1 | |
| R910109789 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100773 | SPRING LOCK WASHER | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910977037 | O-RINGD | 2 | ||
| R910977062 | O-RINGD | 1 | ||
| R910977035 | O-RINGD | 1 | ||
| 24 | R910274062 | SETSCREW | 1 | |
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| 27 | R910918607 | THREADED FASTENER | 1 | |
| 28 | R910730289 | SEAL RING | 1 |
