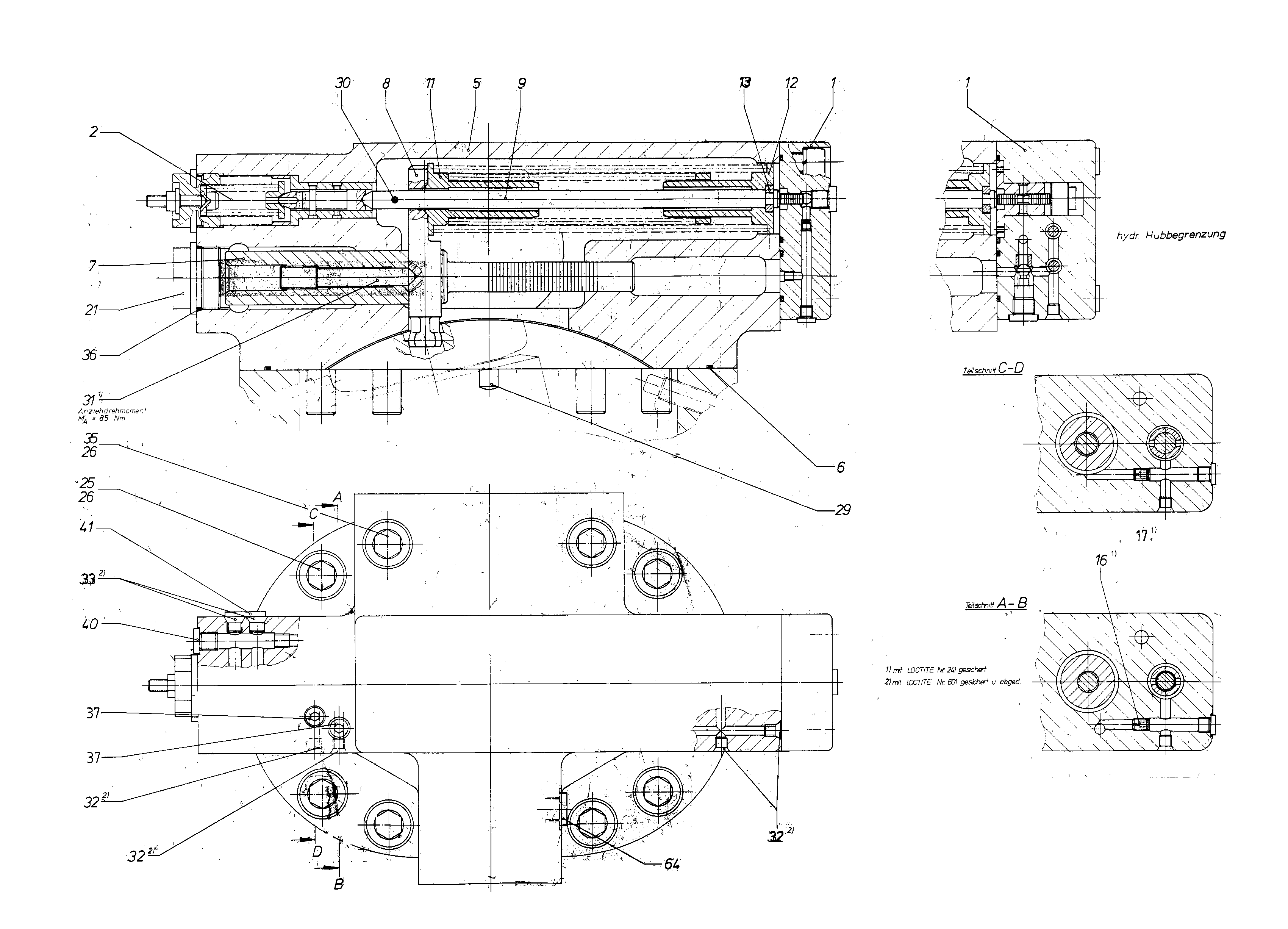

Assembly
CONTROLR910854034
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910590754 | COVER Assembly parts list →L | 1 | ||
| R910590762 | CONTROL PART Assembly parts list →L | 1 | ||
| R910803618 | COVER PLATE | 1 | ||
| R910945129 | O-RINGD | 1 | ||
| R910841846 | POSITIONING PISTON | 1 | ||
| R902413798 | POSITIONING STUD | 1 | ||
| R910591475 | GUIDE ROD | 1 | ||
| R910803634 | SPRING BUSH | 1 | ||
| R910803642 | SPRING BUSH | 1 | ||
| R910583855 | RING | 1 | ||
| R910594253 | THROTTLE SCREW | 1 | ||
| R910853615 | THROTTLE SCREW | 1 | ||
| R910591483 | SCREW PLUG | 1 | ||
| R910110043 | SOCKET HEAD CAP SCREW | 6 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R910514179 | STRAIGHT PIN | 2 | ||
| R910977277 | SLOTTED SPRING PIN | 1 | ||
| R910807001 | SETSCREW | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910120901 | SOCKET HEAD CAP SCREW | 2 | ||
| R910516481 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
