Assembly

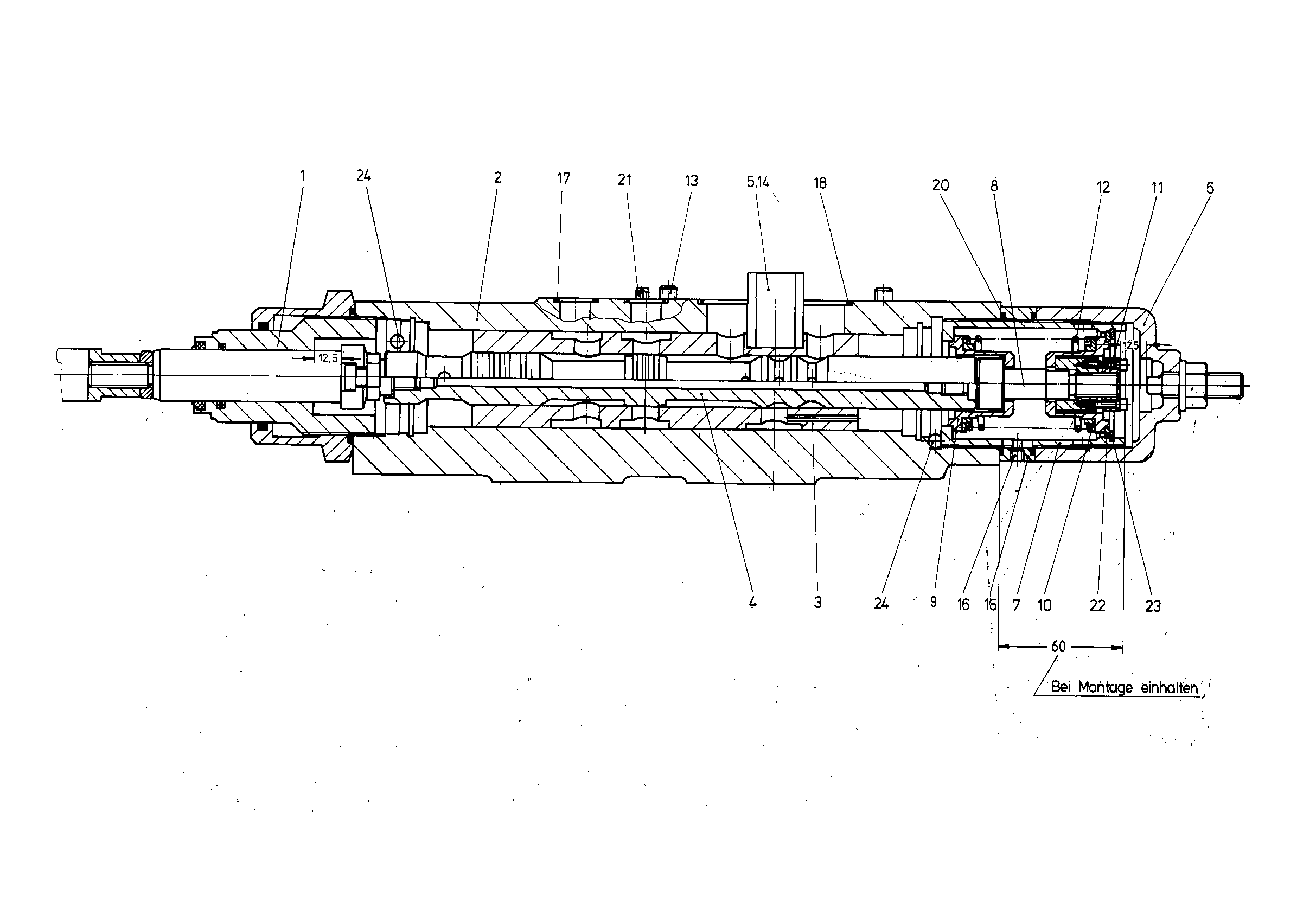

CONTROL MODULER910902276
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910902012 | ACTUATOR Assembly parts list →L | 1 | ||
| R910901296 | CONTROL HOUSING | 1 | ||
| R910911951 | POSITIONING PISTON | 1 | ||
| R910920258 | VALVE SPOOL | 1 | ||
| 5 | R910421103 | CARRIER | 1 | |
| 6 | R910606502 | STOP Assembly parts list →L | 1 | |
| 7 | R910423327 | SPRING SLEEV | 1 | |
| R910920223 | STUD BOLT | 1 | ||
| 9 | R910920231 | SPRING SLEEV | 2 | |
| 10 | R910609749 | LOCATING RING | 2 | |
| 11 | R910920169 | LOCK NUT Assembly parts list →L | 1 | |
| R910064017 | COMPRESSION SPRING | 1 | ||
| R910109576 | SOCKET HEAD CAP SCREW | 4 | ||
| 14 | R910109215 | SOCKET HEAD CAP SCREW | 2 | |
| 15 | R910616559 | ADJUSTING RING | 1 | |
| 16 | R910684562 | DOUBLE BREAK-OFF PLUG | 1 | |
| R910111082 | O-RINGD | 2 | ||
| R910111805 | O-RINGD | 1 | ||
| R910111775 | O-RINGD | 2 | ||
| R910106879 | CLAMPING SLEEVE | 2 | ||
| R910105473 | SUPPORTING DISC | 1 | ||
| R910105996 | RETAINING RING | 1 | ||
| R909153815 | SCREW PLUGD | 2 |
