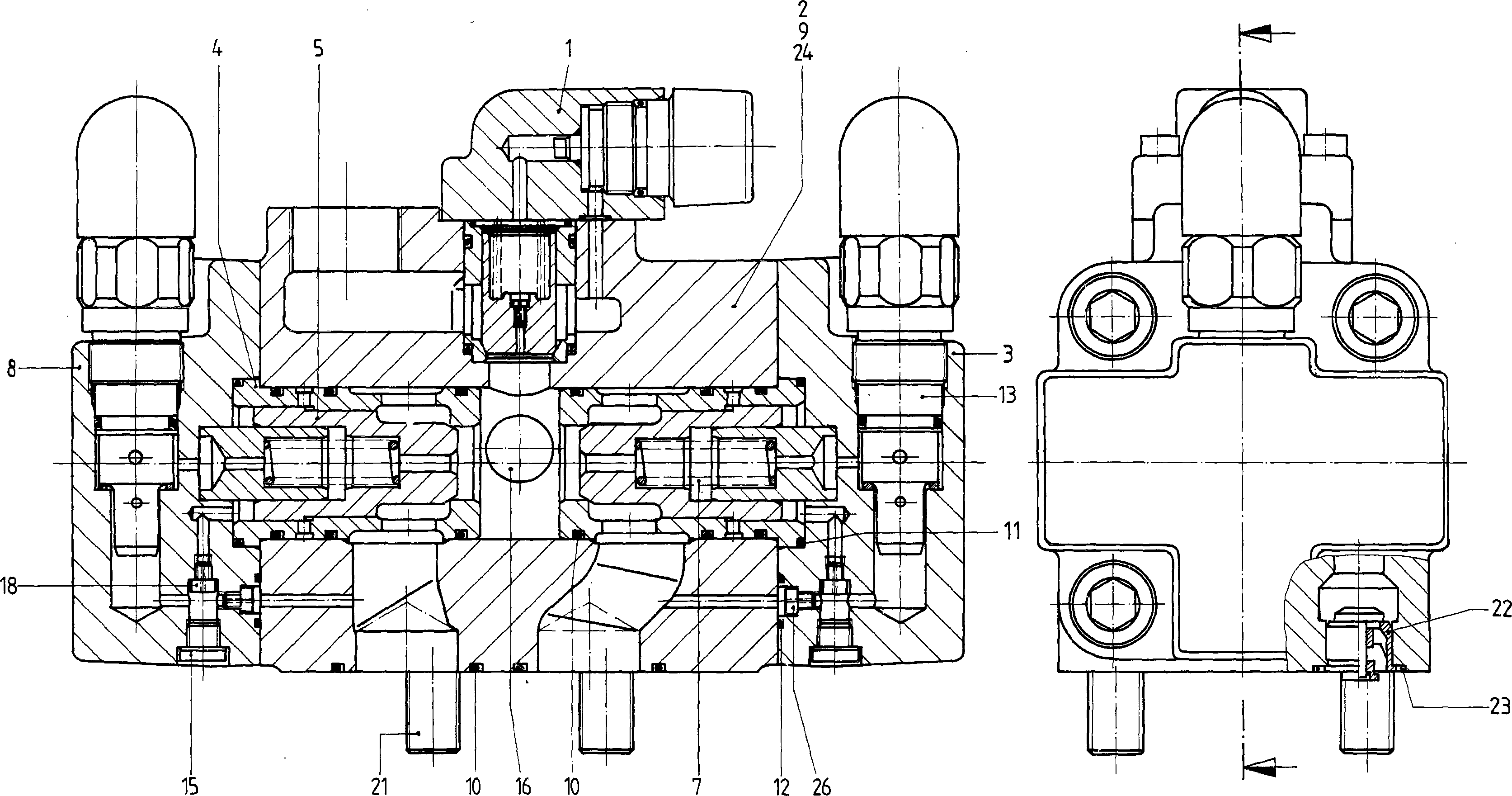

Assembly
FLUSHING BLOCKR910902407
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910938785 | PILOT VALVE Assembly parts list →L | 1 | ||
| R910902406 | VALVE HOUSING | 1 | ||
| R910906428 | COVER Assembly parts list →L | 2 | ||
| R910417386 | VALVE INSERT | 2 | ||
| R910417408 | VALVE SPOOL | 2 | ||
| R910037281 | COMPRESSION SPRING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910113646 | O-RING | 8 | ||
| R910470325 | O-RING | 2 | ||
| R910080543 | O-RING | 2 | ||
| R900438939 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909156649 | SCREW PLUG | 2 | ||
| R909156654 | SCREW PLUG | 2 | ||
| R910100587 | NOZZLE | 2 | ||
| 20 | R910120499 | SOCKET HEAD CAP SCREW | 8 | |
| R910120553 | SOCKET HEAD CAP SCREW | 4 | ||
| R910921901 | PRECHARGE VALVE | 1 | ||
| R910923187 | O-RING | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910100587 | NOZZLE | 2 |
