Assembly

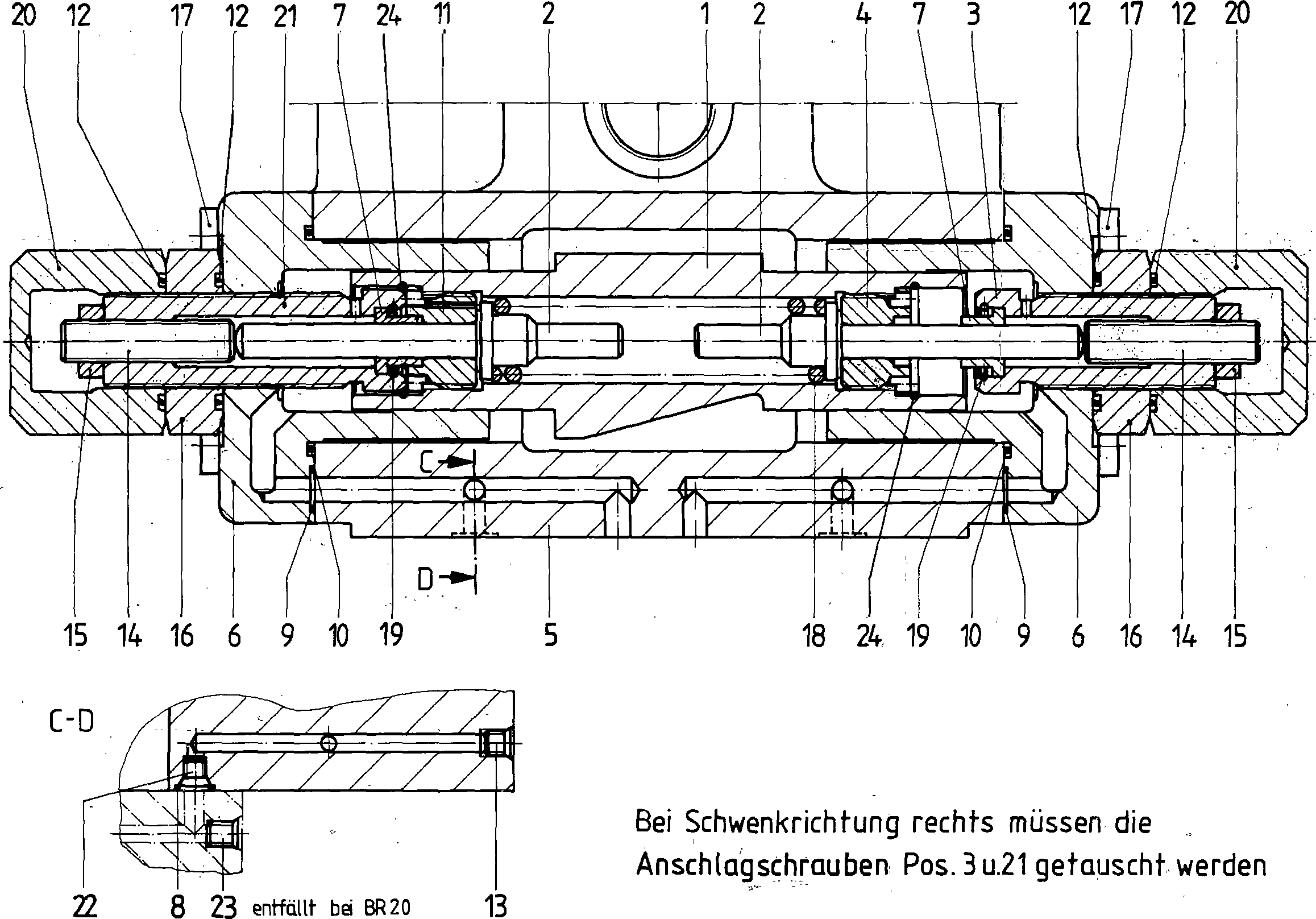

ADJUSTING PIECER910906087
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902549196 | ADJUSTING PISTON | 1 | ||
| R910902261 | PRESSURE PISTON | 2 | ||
| R902555522 | STOP SCREW | 1 | ||
| R910973894 | PISTON GUIDE | 1 | ||
| R910922438 | PUMP HOUSING | 1 | ||
| R910901044 | PISTON HOUSING | 2 | ||
| R910942134 | R-RINGD | 2 | ||
| R910942134 | R-RINGD | 2 | ||
| R910800379 | O-RINGD | 2 | ||
| R910973893 | PISTON GUIDE | 1 | ||
| R910514896 | O-RINGD | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902519559 | STUD BOLT | 2 | ||
| R910125865 | HEXAGON NUT | 2 | ||
| R910912241 | NUT | 2 | ||
| R910231991 | SOCKET HEAD CAP SCREW | 8 | ||
| R910902278 | SPRING | 1 | ||
| R910912240 | CAP NUT | 2 | ||
| R902555523 | STOP SCREW | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910928064 | SNAP RING | 2 |
