Assembly

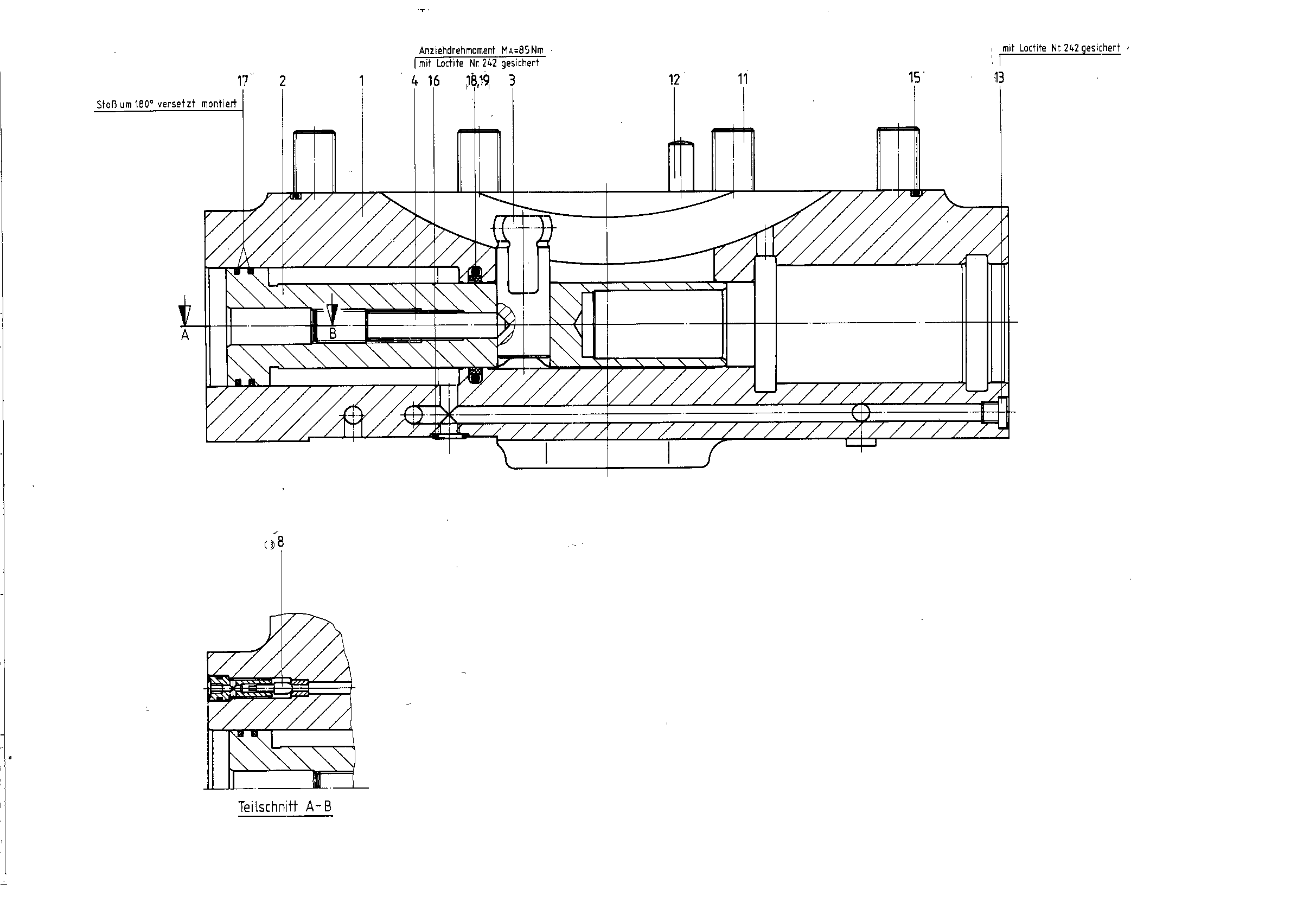

ADJUSTING PIECER910907397
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910901797 | COVER PLATE | 1 | |
| 2 | R910900235 | POSITIONING PISTON | 1 | |
| 3 | R902413802 | POSITIONING STUD | 1 | |
| 4 | R910807001 | SETSCREW | 1 | |
| 8 | R910802712 | CHECK VALVE | 2 | |
| 11 | R902572932 | SOCKET HEAD CAP SCREW | 8 | |
| 12 | R910903148 | STRAIGHT PIN | 2 | |
| 13 | R909153364 | SCREW PLUGD | 12 | |
| 15 | R910907398 | O-RINGD | 1 | |
| 16 | R910514993 | O-RINGD | 1 | |
| 17 | R910907604 | RECTANGULAR RINGD | 2 | |
| 18 | R910907799 | ROD SEALD | 1 | |
| 19 | R910514942 | O-RINGD | 1 |
